Metal sheet stamping
Deliver cradle decoiler and straightener 2 in 1

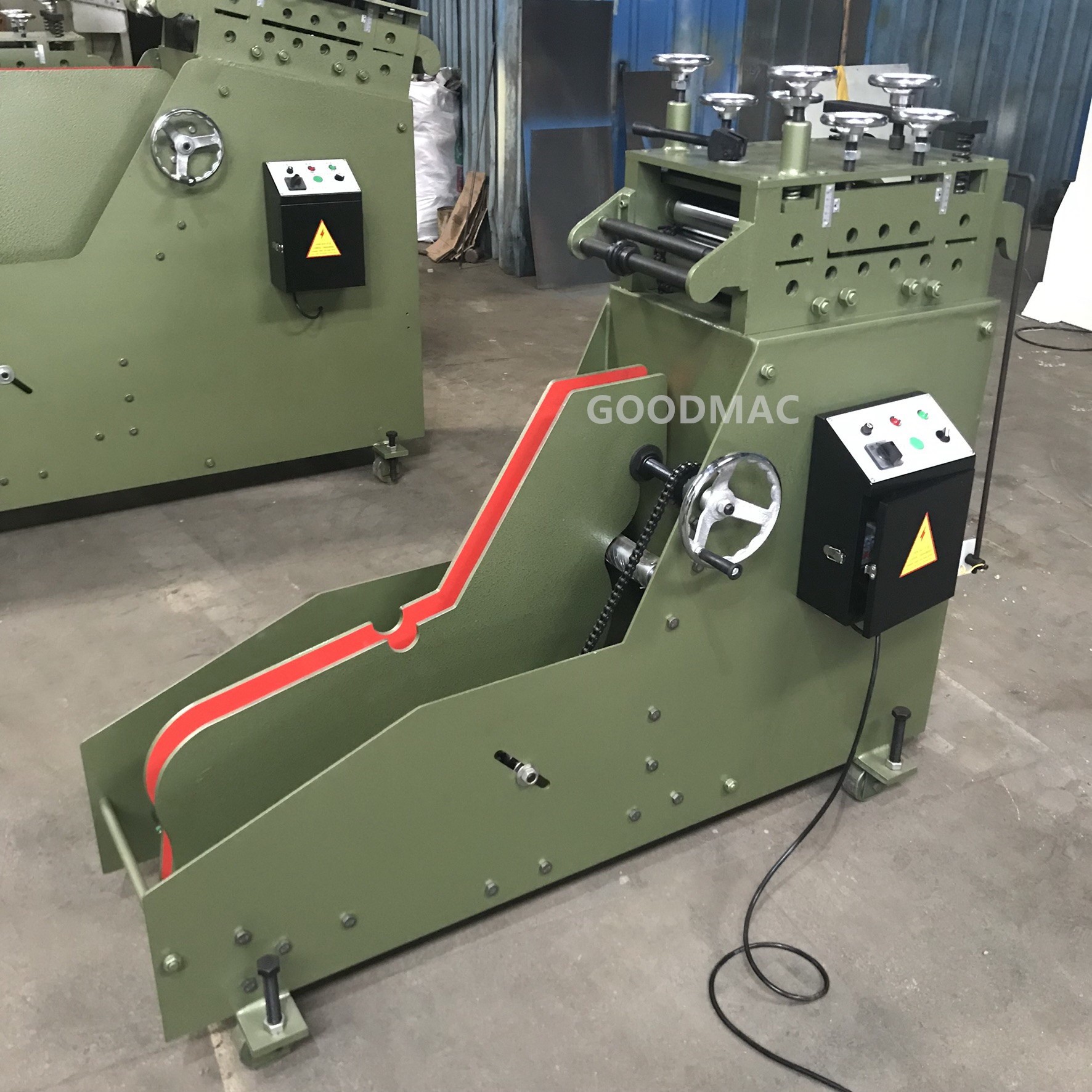

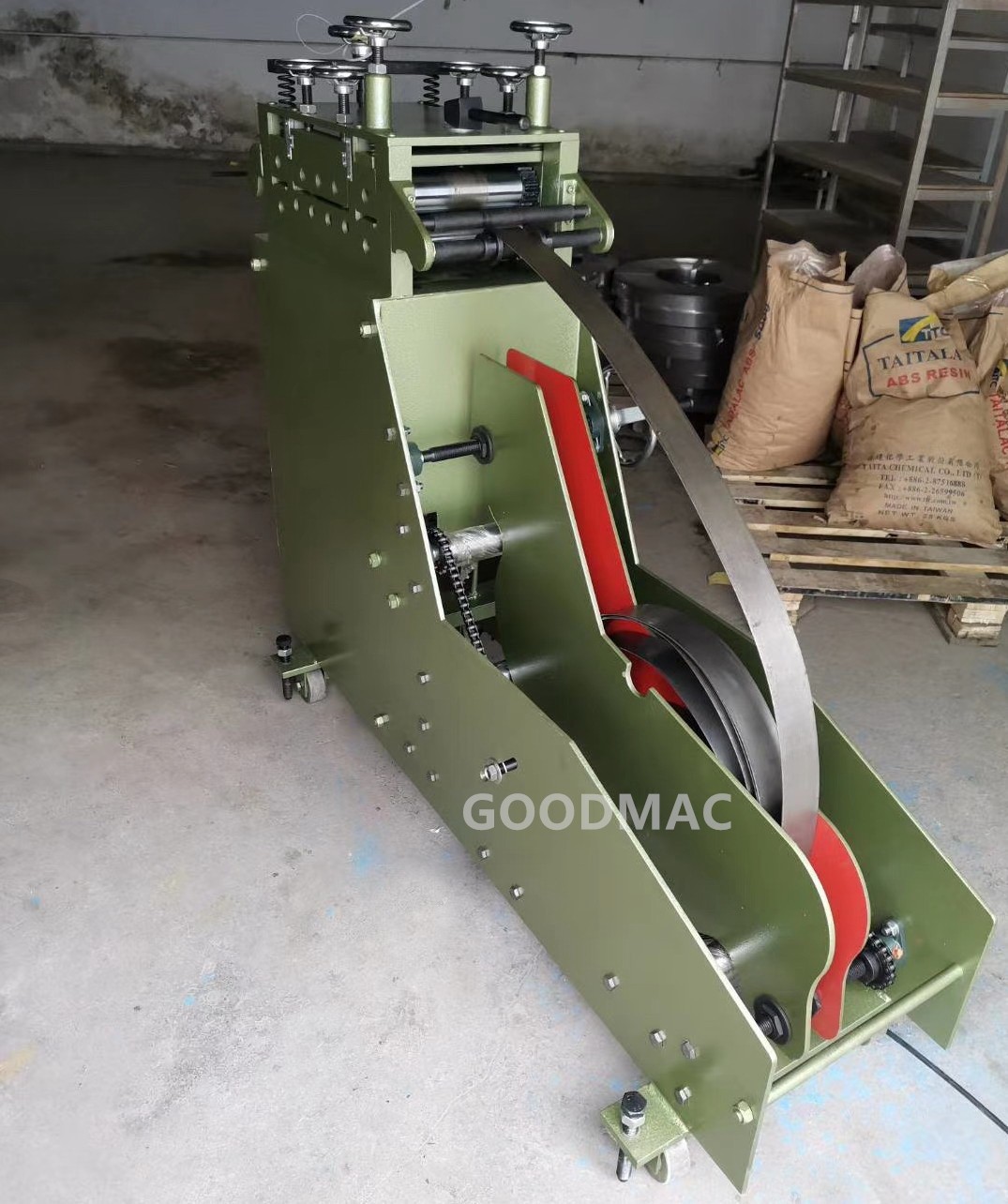

Some compact cradle decoiler and straightener 2 in 1, model CL-200, CL-300 are finished to deliver to a customer now.
Specification
CL-150 | CL-200 | CL-300 | CL-400 | |
Coil strip width maximum | 150mm | 200mm | 300mm | 400mm |
Strip thickness | 0.4-2.2mm | |||
Coil inside diameter | 50-530mm | |||
Coil outside diameter | maximum 1000mm | |||
Decoiler loading capacity | 400KG | 500KG | 500KG | 500KG |
Decoiler motor | no | |||
Straightener roller | 7 pieces | |||
Rollers position adjusting | by hand wheel and springs | |||
Feeding Speed | 15m/min | |||
Inverter for adjusting speed | optional | |||
Straightener motor | 1HP | 1HP | 2HP | 3HP |
Electrical power | 380V, 3 phase, 50HZ | |||
