Finish 1600mm zigzag servo feeders

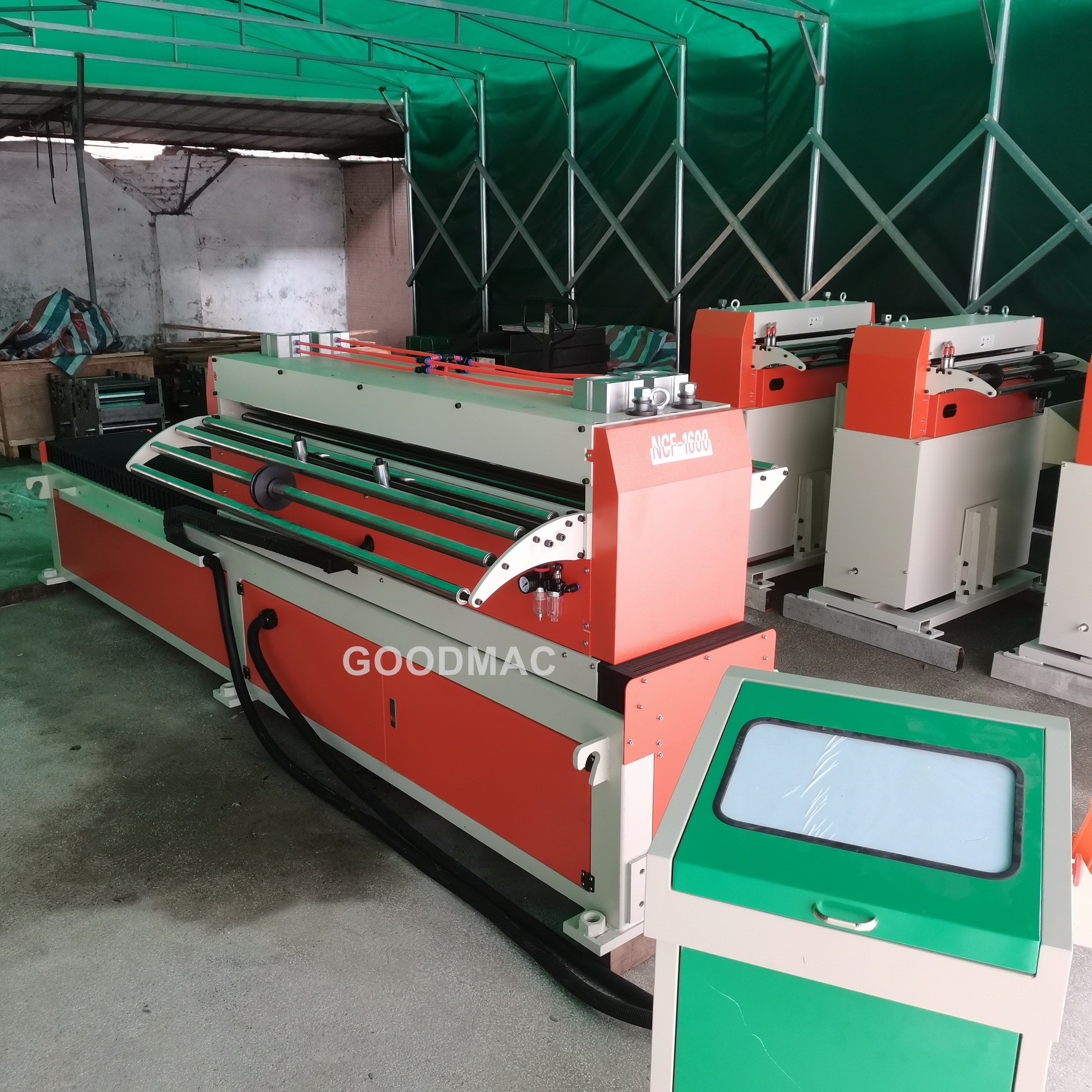

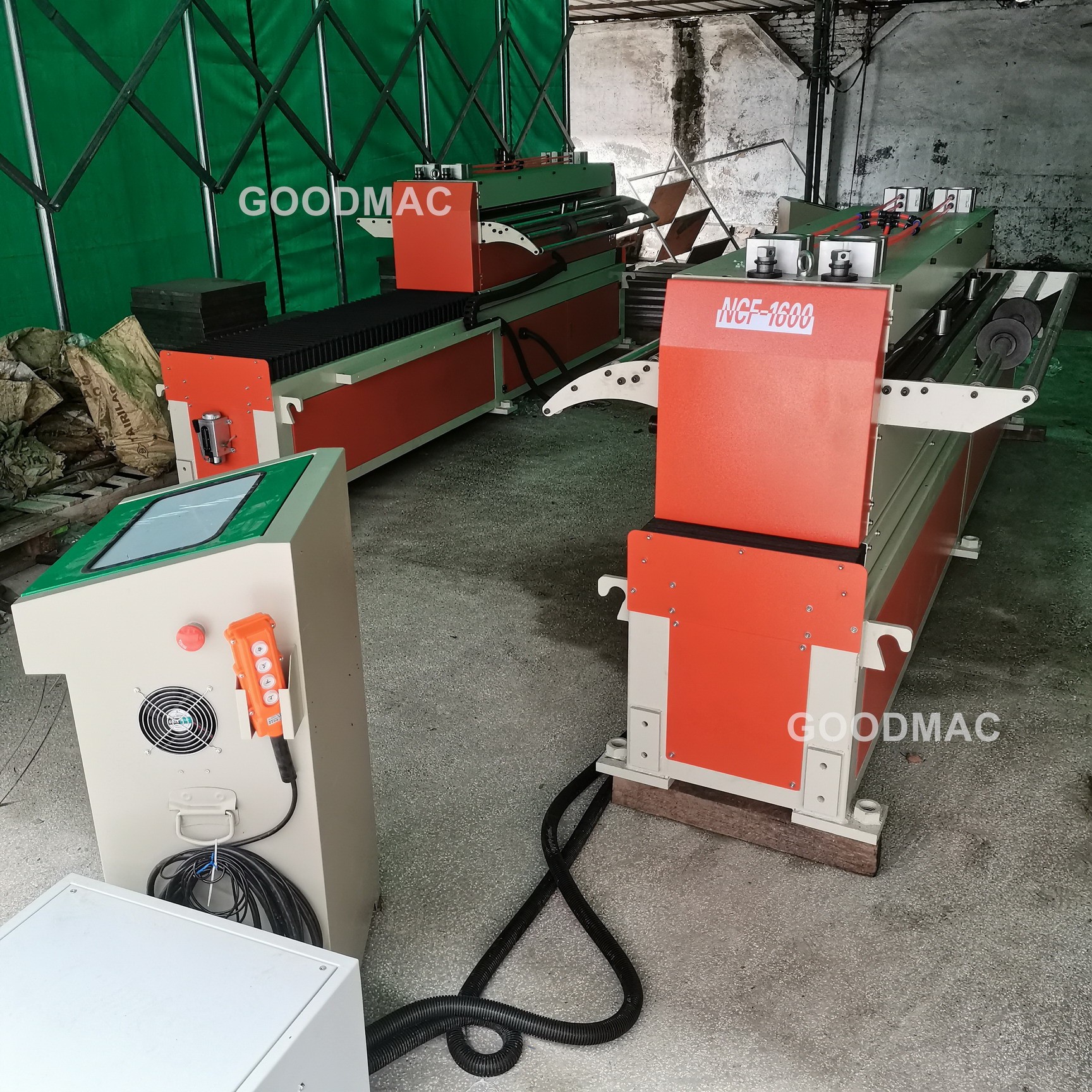

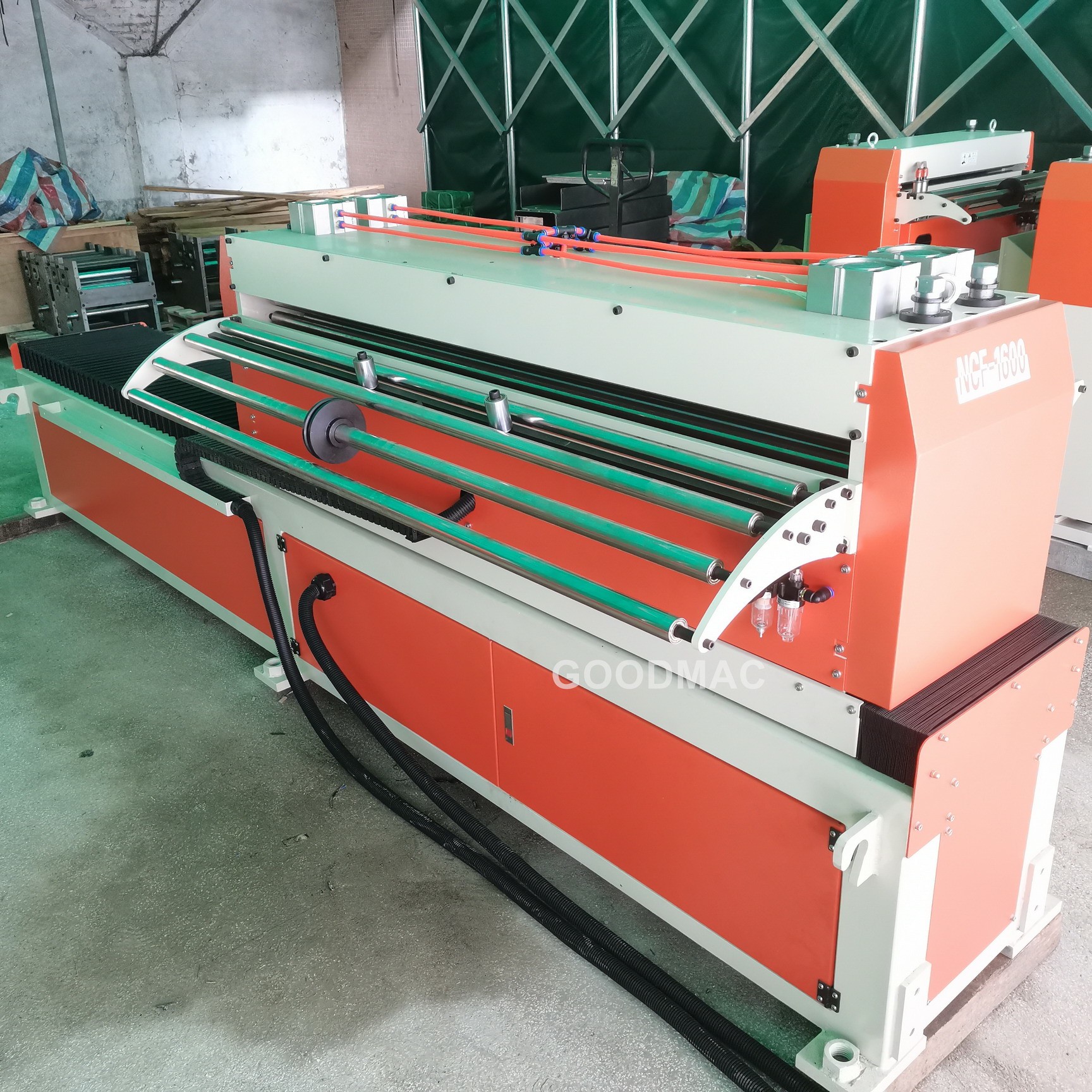

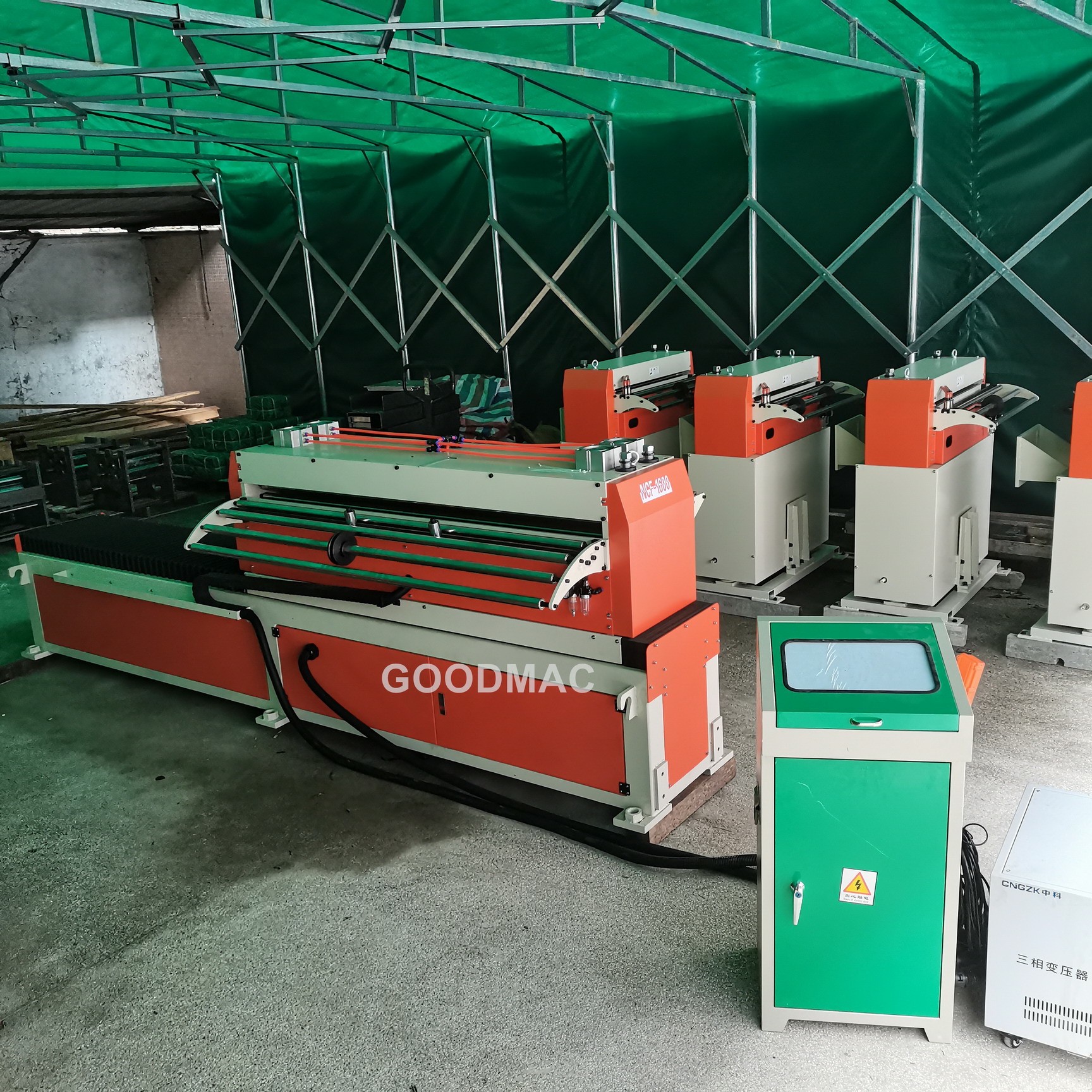

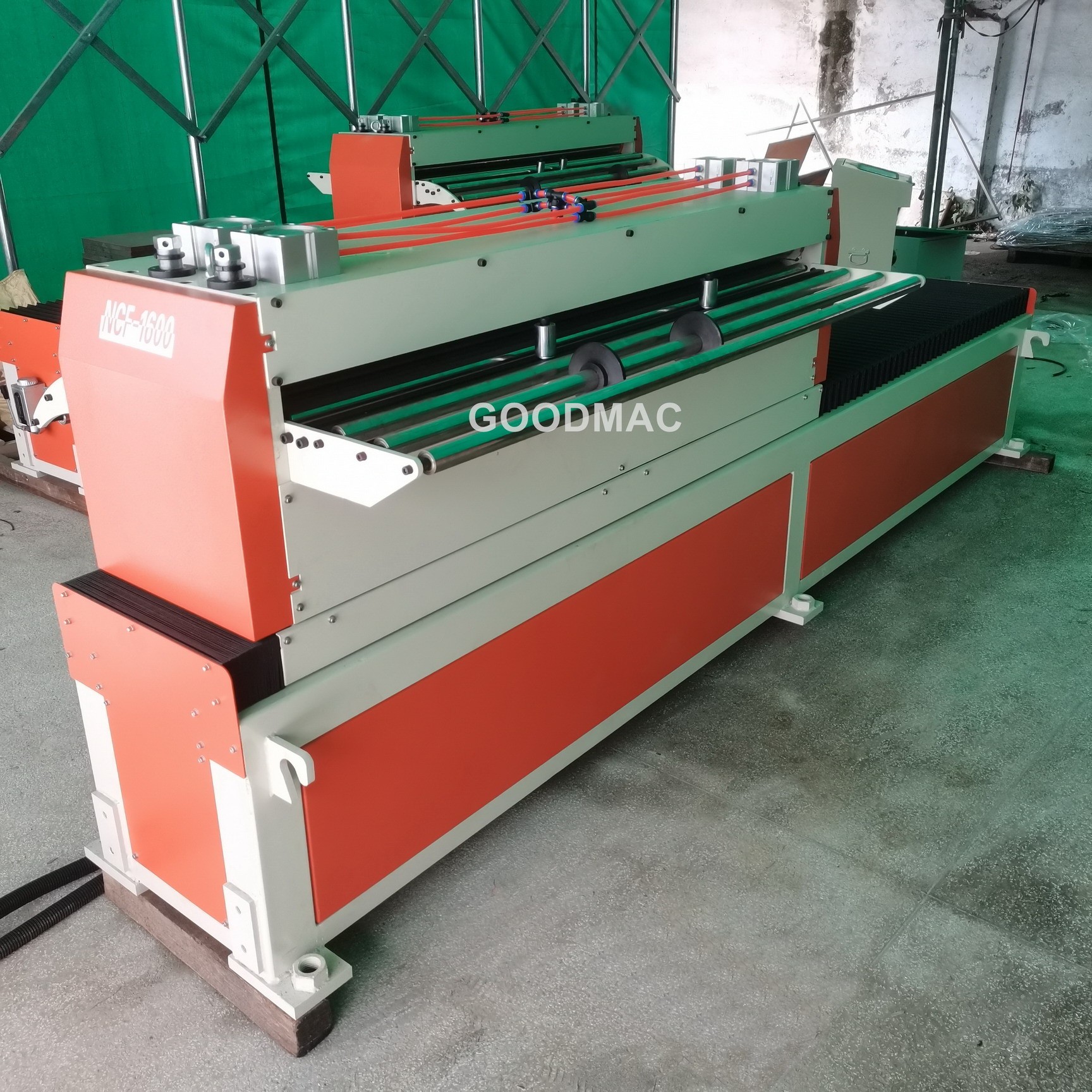

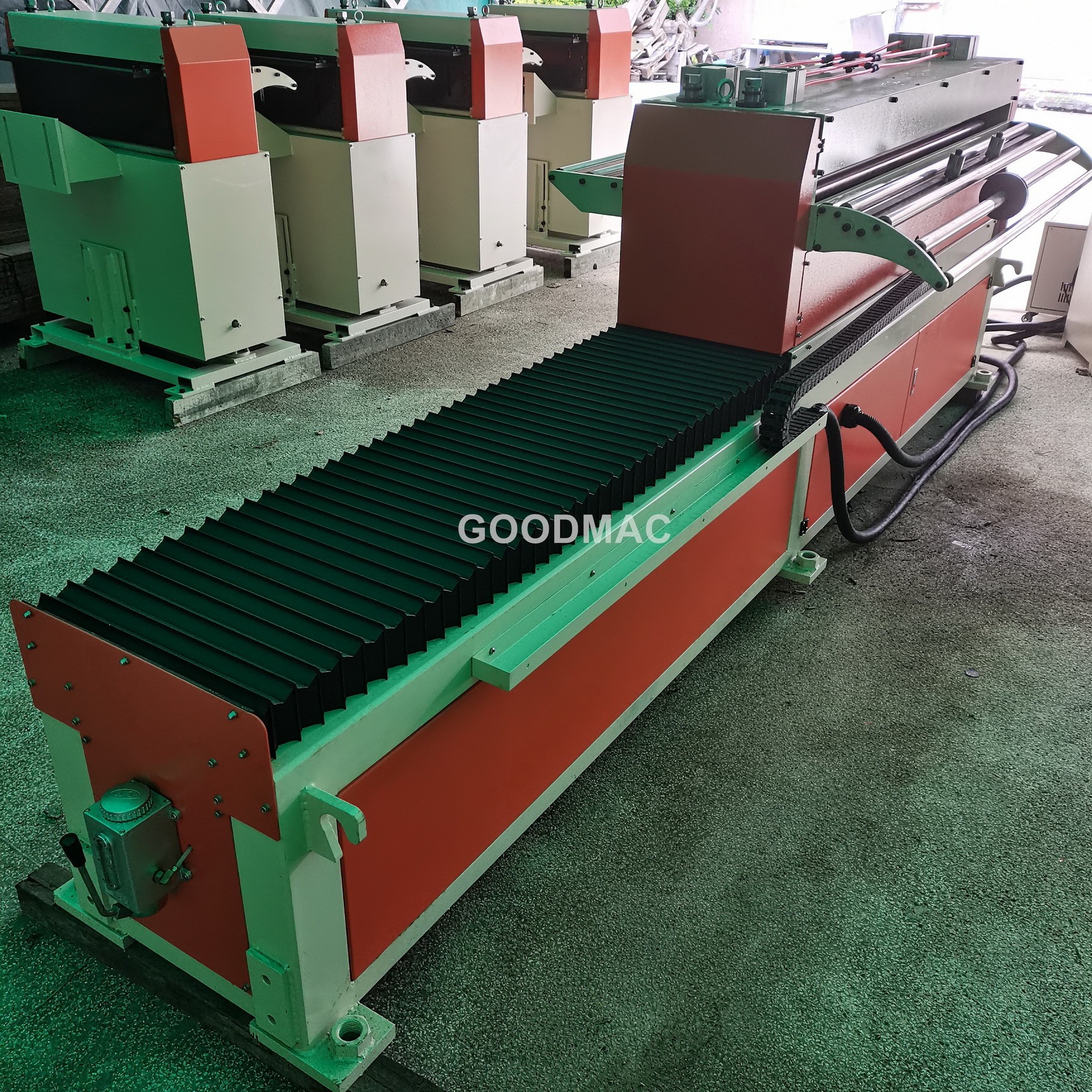

Two pieces of zigzag NC servo roll feeders are ready to deliver a customer now.
1. Model NCF-1600ZH.
2. For sheet metal strip width maximum 1600mm.
3. For thickness 2.0mm.
4. At center position, feeder moving pitch to left side is maximum 800mm.
5. At center position, feeder moving pitch to right side is maximum 800mm.
6. 4 pieces of feeding rollers are equiped for feeding thick sheet metal strip.
7. Zigzag feeder can feed sheet metal strip to press machine, for round steel or aluminum
    plates blanking production line.
8. Zigzag moving can save material very well.
9. Product link, https://www.goodmacmachine.com/products/254.html
10.Non-standard machines can be designed and fabricated as per your special requirement.
