0.6-4.5mm sheet metal straighteners, model HS-200T, 300T, 400T, 500T, 600T, 700T

  • Brand: GOODMAC
  • Model: HS-200T, HS-300T, HS-400T, HS-500T, HS-600T, HS-700T
  • Function: Function
  • Advantage: for thick sheet metal strip
  • Drive mechanism: gear
  • Roller position adjusting method: by hand wheel and worm gear
  • Straightening speed: 16m/min
  • Variable frequency speed control system: optional
  • Easy to use: yes
  • INQUIRY

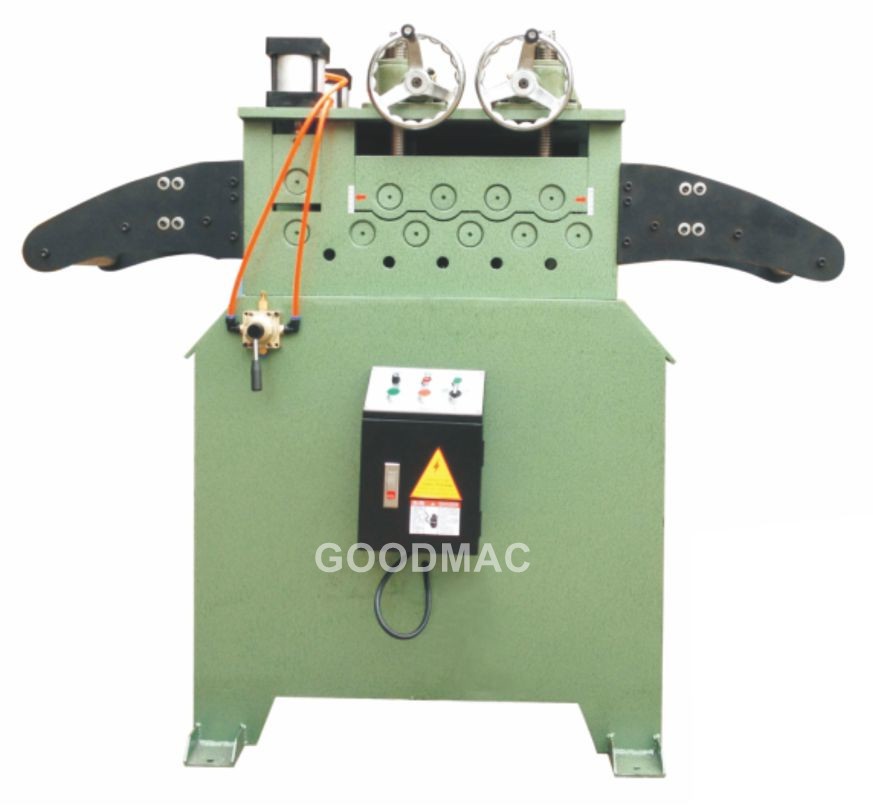

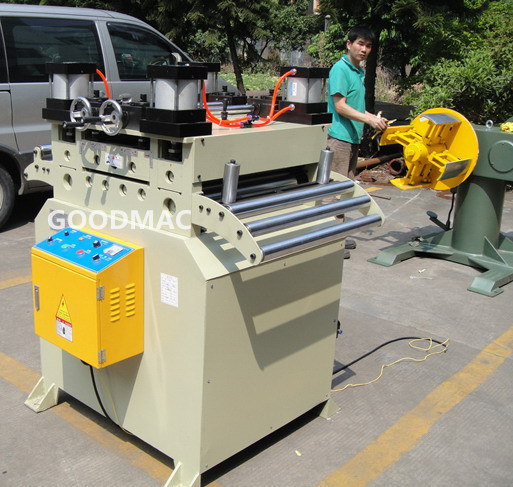

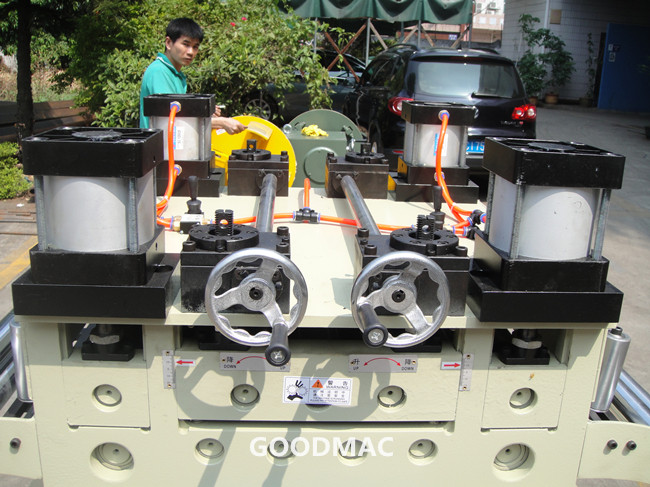

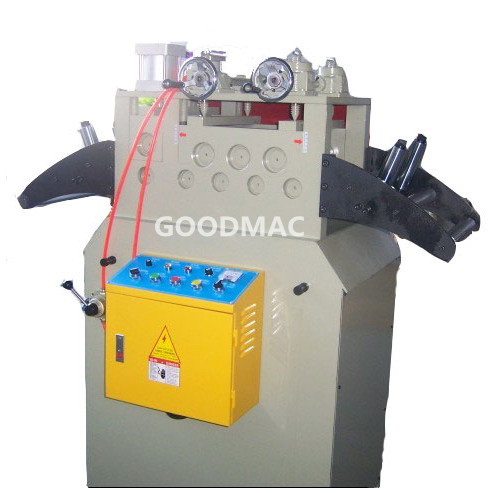

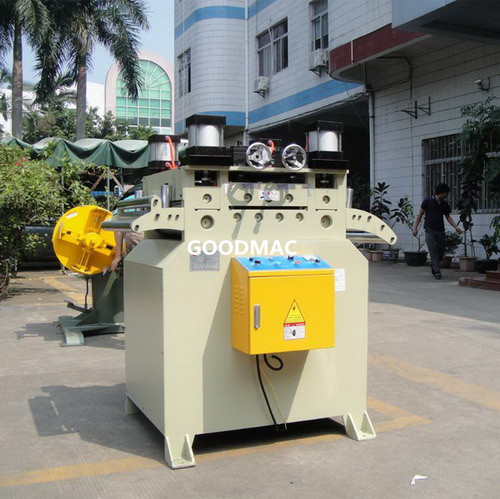

This model HS straightener can straighten thick sheet metal strip automatically, with perfect straightening performance.
It can be used for press machine, shearing machine, laser cutting machine, slitting line, cut to length line, roll forming machine, etc.
It can be customized according to your special application requirement.
Welcome to contact us for more details.

Specification

ModelHS-200THS-300THS-400THS-500THS-600THS-700THS-800T
Metal sheet width200mm300mm400mm500mm 600mm700mm800mm
Metal sheet thickness0.6-4.5mm (Thick metal sheet)
Straightening capacity, thickness × width (mm)0.6-2.5200300400500600700800
3.2
4.0450500550600
4.5400400400420
Straightening speed15m/min
Inverter for adjusting speedstandard
Motor power3HP5HP7.5HP10HP
Machine size (m)2.1×0.7×1.62.1×0.8×1.62.1×0.9×1.62.1×1.0×1.62.1×1.1×1.62.1×1.2×1.62.1×1.3×1.6
Pinch roller4 pieces
Straightening roller9 pieces
Roller pressing deviceby pneumatic cylinder
Roller pressure adjustmentby worm gear
Electrical power380V, 3 phase, 50HZ
