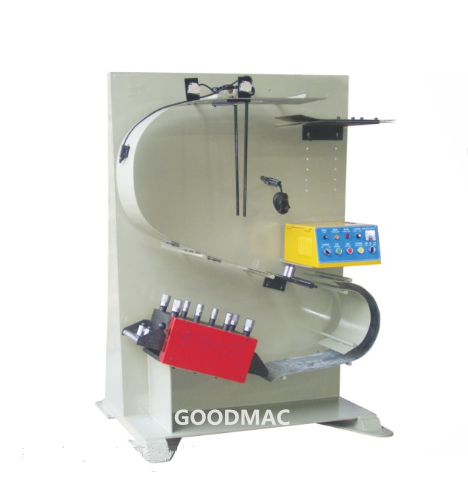

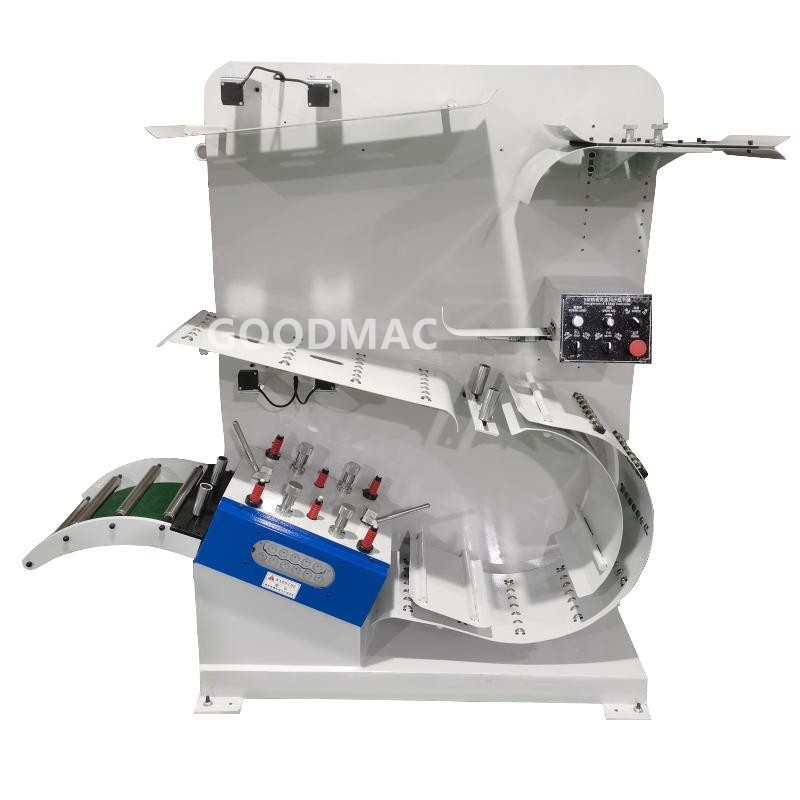

0.1-1.6mm high speed straighteners, model TUS

  • 70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500
  • 70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500
  • 70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500
70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500 70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500 70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500

70m/min high speed S loop straighteners, model TUS-200, 300, 400, 500

  • Brand： GOODMAC
  • Model： TUS-200, TUS-300, TUS-400, TUS-500
  • Function： straighten sheet metal strip
  • Feature： S loop structure for guiding sheet metal strip
  • Advantage： high speed, 0-60m/min, for high speed press machine
  • Variable frequency speed control system： standard
  • Loop control： electronic sensor
  • Adjusting method： by hand wheel
  • Easy to use： yes
  • INQUIRY

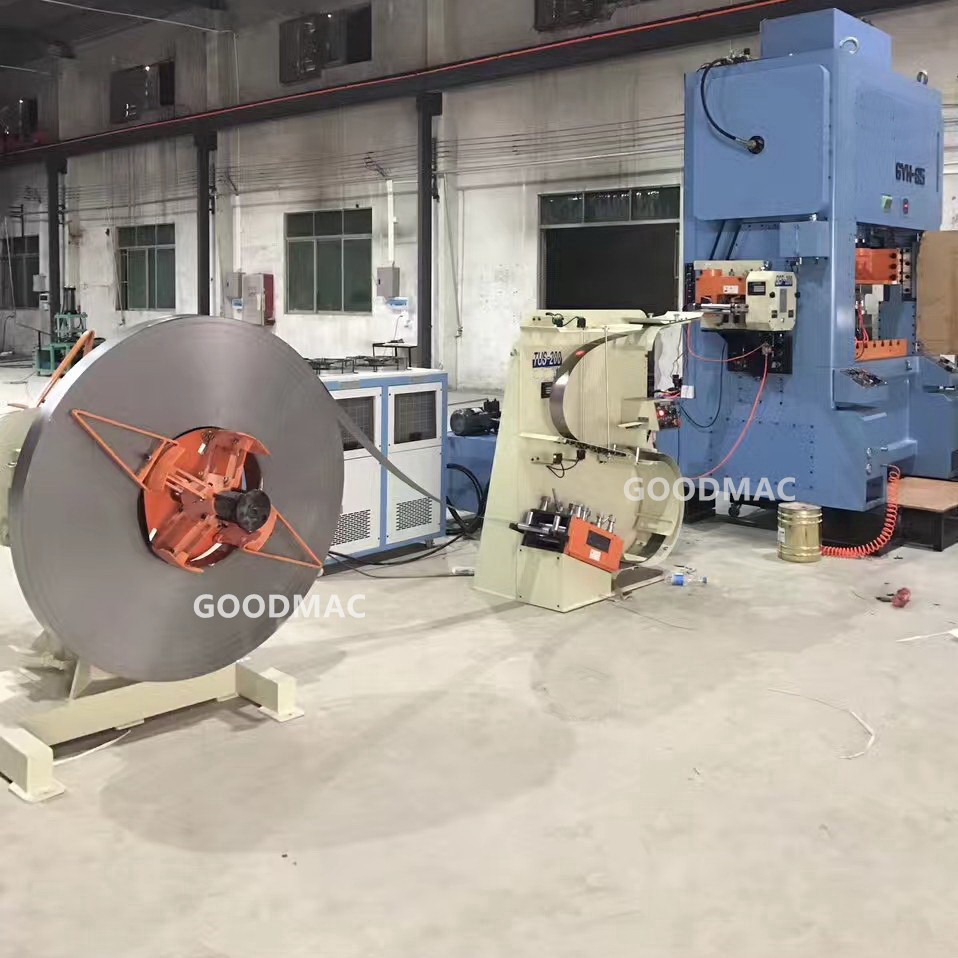

This series model TUS straightener can straighten thin sheet metal strip automatically, for automatic high speed stamping by high speed press machine.
It has perfect straightening performance. It can be customized according to your special application requirement.


Specification

ModelTUS-200TUS-300TUS-400TUS-500
Metal sheet width200mm300mm400mm500mm
Metal sheet thickness0.1-1.6mm
Straightening speed0-70m/min
Motor power2HP2HP3HP3HP
Straightening roller quantity11-19 pieces
Straightening roller diameterΦ30mmΦ50mm
Electric power380V / 415V, 3 Phase, 50HZ
Inverter for adjusting speedDELTA brand
Speed loop controlphotoelectric sensors
Machine size (mm)1200×1000×14601200×1000×15601200×1000×16111200×1000×1610
Net weight500KGS550KGS600KGS650KGS
