0.1-0.8mm, model GO-B

  • 0.1-0.8mm decoiler and straightener 2 in 1, model GO-200B, 300B, 400B, 500B, 600B
  • 0.1-0.8mm decoiler and straightener 2 in 1, model GO-200B, 300B, 400B, 500B, 600B
0.1-0.8mm decoiler and straightener 2 in 1, model GO-200B, 300B, 400B, 500B, 600B 0.1-0.8mm decoiler and straightener 2 in 1, model GO-200B, 300B, 400B, 500B, 600B

0.1-0.8mm decoiler and straightener 2 in 1, model GO-200B, 300B, 400B, 500B, 600B

  • Brand: GOODMAC
  • Model: GO-200B, GO-300B, GO-400B, GO-500cB, GO-600B
  • Decoiler power: without motor motive
  • Coil car for coil: optional
  • Decoiler expanding method: manual rod
  • Guiding device for coil: standard
  • Coil retainer: standard
  • Straightening roller adjustment method: by hand wheel and spring
  • Variable frequency speed control system: standard
  • Feeding direction: from left to right, or from right to left
  • INQUIRY

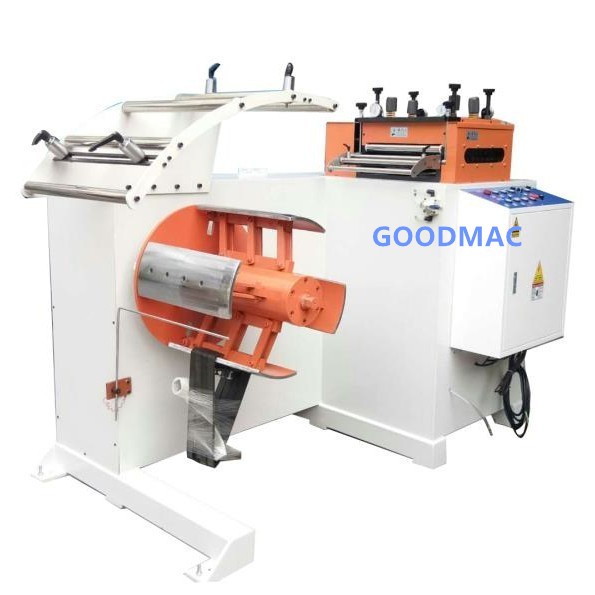

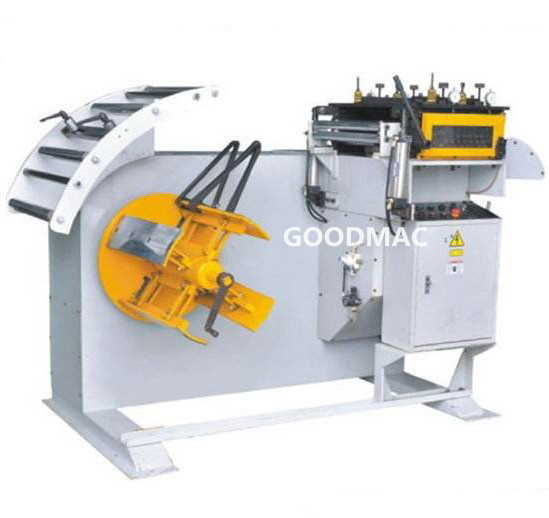

This model GO-B series machine contains decoiler and straightener together, so as 2 in 1.
It can decoil sheet metal strip coil, then straighten it automatically, for automatic stamping & punching. It has perfect straightening performance.
It can be customized according to your special application requirement.
Welcome to contact us for more details.

Specification

ModelGO-200BGO-300BGO-400BGO-500BGO-600B
Metal sheet coil width200mm300mm400mm500mm600mm
Metal sheet thickness0.1-1.5mm0.1-1.3mm0.1-1.2mm
Coil inside diameter450-530mm
Coil outside diameter1000mm1200mm
Coil weight600KGS1000KGS1500KGS1500KGS2000KGS
Mandrel expandingmanual
Decoiler motor1/2HP1HP2HP
Straightener motor1/2HP1HP2HP3HP
Straightening rollerupper / lower (full drive)
Guiding roller2
Tension rollernoyes
Adjusting device4 points fine turning
Straightener speed0-22m/min
Inverter for adjusting speedstandard
Electrical   power380V, 3 phase, 50Hz
