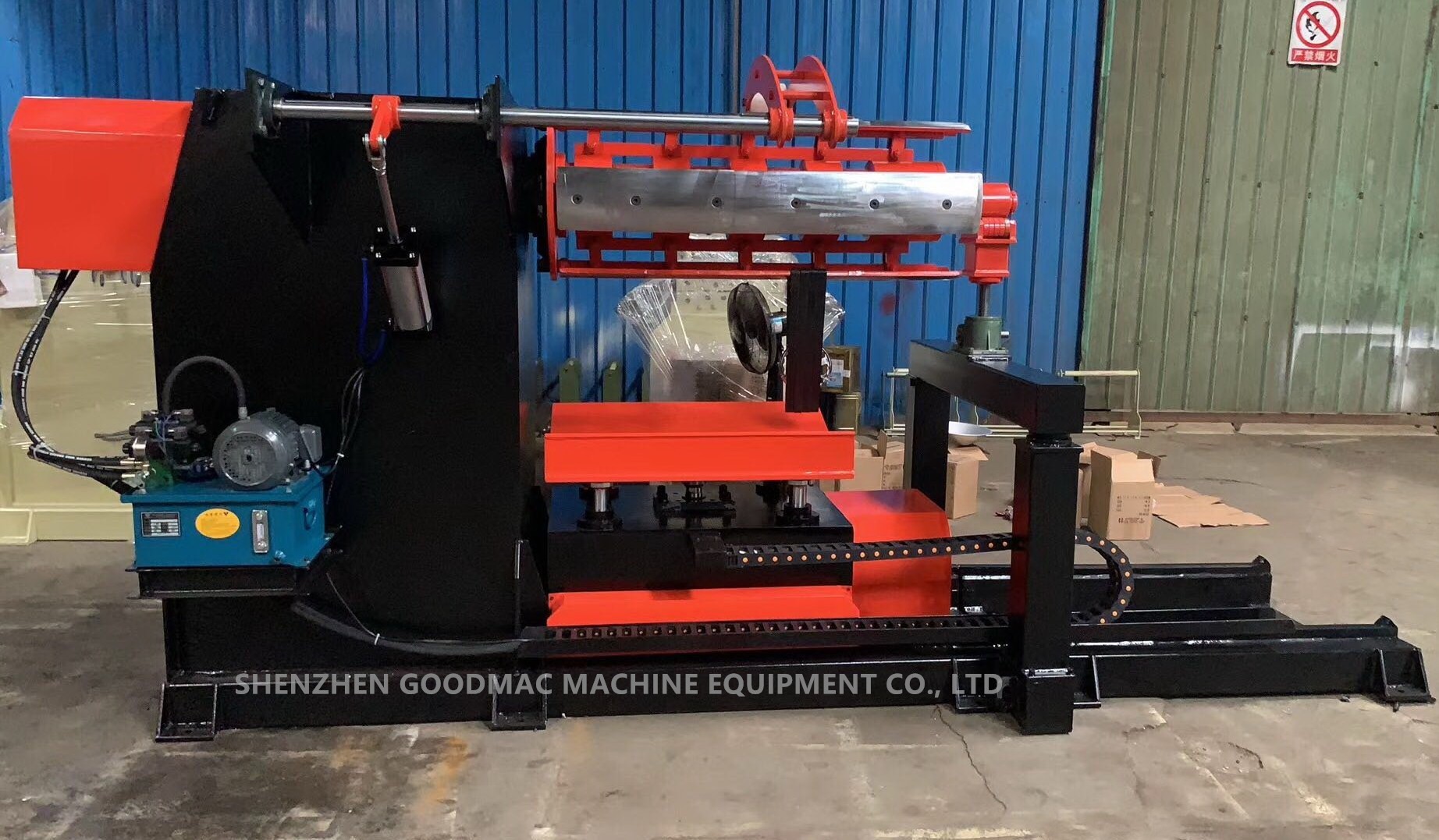

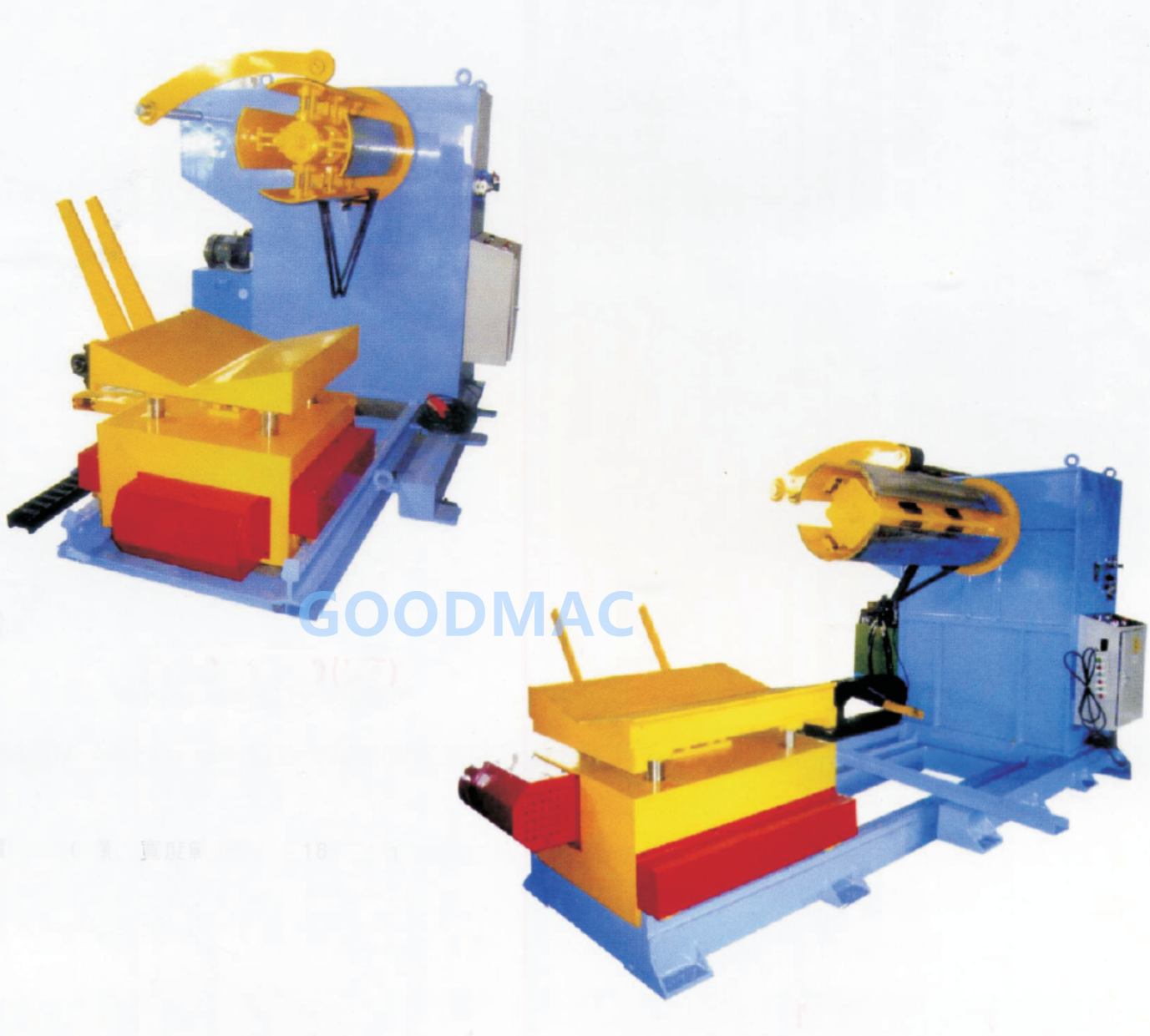

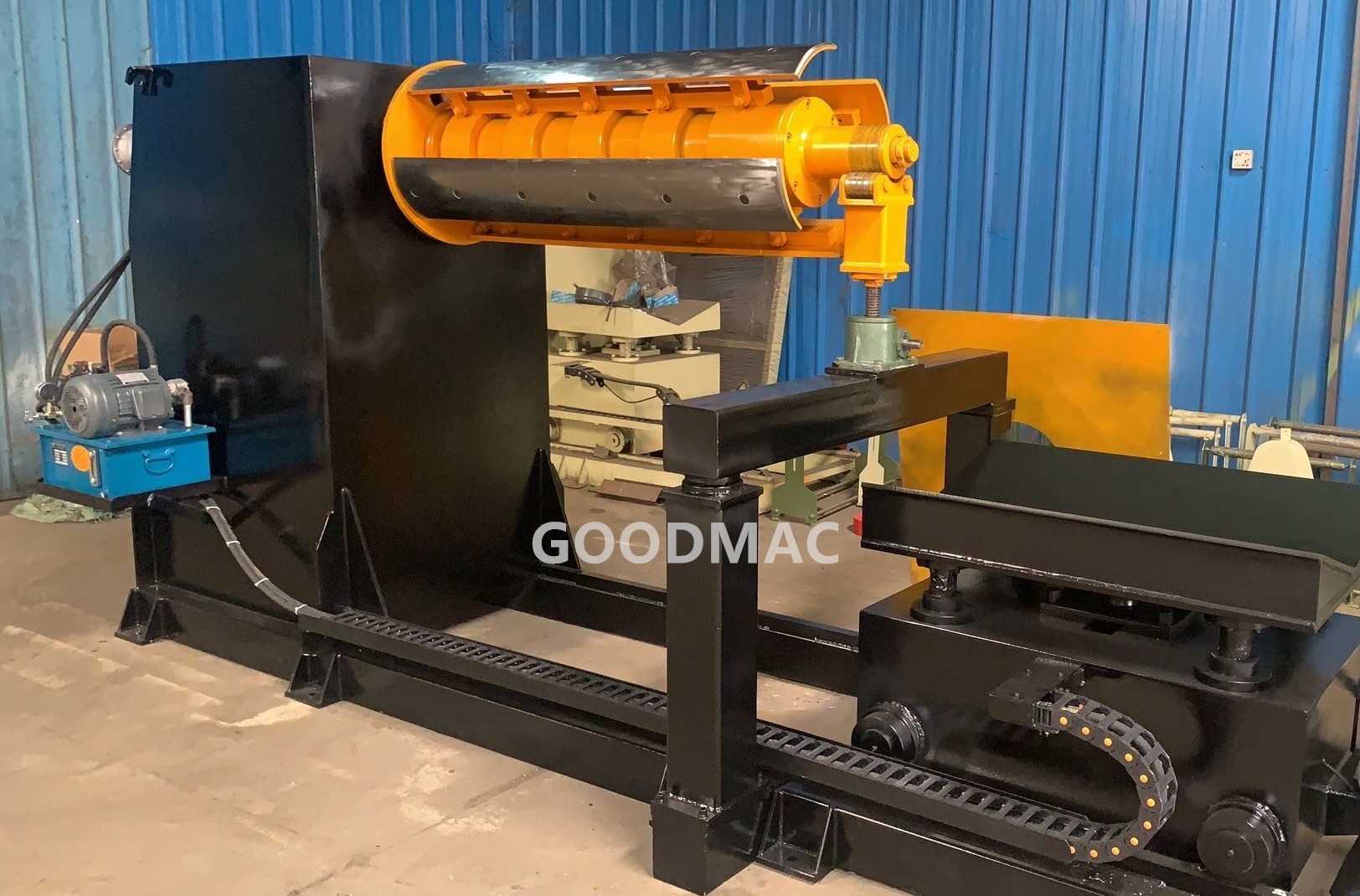

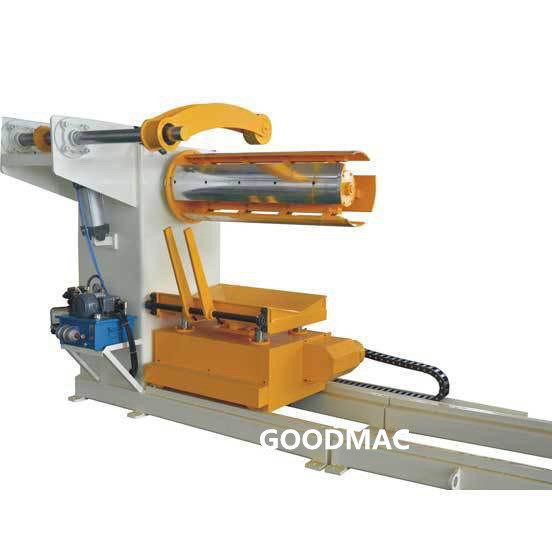

This model MT-N series decoiler can decoil sheet metal strip coil automatically, by motorized power.
Decoiler can decoil coil for press machine, shearing machine, roll forming machine, laser cutting machine, slitting line, cut to length line, etc.
It can be customized according to your special application requirement.
Specification
Model | MT-200H | MT-300H | MT-400H | MT-500H | MT-600H | MT-700H | MT-800H | MT-1000H | MT-1300H | MT-1600H |
Metal sheet coil width | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm | 1300mm | 1600mm |
Metal sheet thickness | 2mm | |||||||||
Coil inside diameter | 450-530mm | |||||||||
Coil outside diameter | 1200mm | |||||||||
Coil weight (Heavy duty) | 3000KGS | 3000KGS | 3000KGS | 5000KGS | 5000KGS | 10000KGS | 10000KGS | 12000KGS | 15000KGS | 20000KGS |
Mandrel expanding | hydraulic cylinder expanding | |||||||||
Decoiling speed | 0-15m/min | |||||||||
Inverter for adjusting speed | standard | |||||||||
Motor power | 3HP | 5HP | 12HP | 17HP | 19HP | |||||
Net weight | 1000KGS | 1200KGS | 1400KGS | 1600KGS | 1800KGS | 1900KGS | 2100KGS | 2300KGS | 2500KGS | 3000KGS |
Machine size(m) | 1.0×0.8×1.1 | 1.1×1.0×1.2 | 1.2×1.1×1.3 | 1.4×1.2×1.3 | 1.5×1.2×1.3 | 1.7×1.3×1.4 | 1.8×1.4×1.4 | 2.0×1.5×1.6 | 2.5×1.8×1.8 | 3.0×2.0×2.0 |
Electrical power | 380V, 3 phase, 50HZ | |||||||||
Arm shape pressing device | standard | |||||||||
Coil car | optional |
