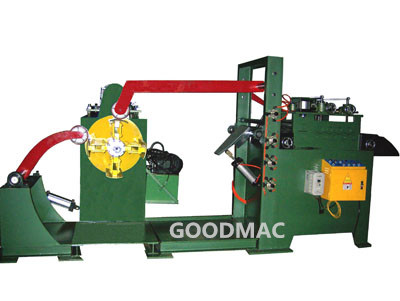

This TGL series machine contains decoiler and straightener together, so as 2 in 1.
It can decoil sheet metal strip coil, then straighten it automatically, for automatic stamping & punching. It has perfect straightening performance.
It can be customized according to your special application requirement. Welcome to contact us for more details.
Model | TGL-300T | TGL-400T | TGL-500T | TGL-600T | TGL-700T | TGL-800T | TGL-1000T | |
Metal sheet coil width | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm | |
Metal sheet thickness | 0.6-4.5mm (Thickness metal sheet) | |||||||
Straightening capacity, thickness × width (mm) | 0.6-2.5 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
3.2 | 600 | 600 | 550 | |||||
4.0 | 360 | 350 | 350 | 320 | ||||
4.5 | 320 | 300 | 280 | 280 | 260 | |||
Coil inside diameter | 450-530mm | |||||||
Coil outside diameter | 1200mm | 1500mm | ||||||
Coil weight | 2000KGS | 3000KGS | 5000KGS | |||||
Mandrel expanding | manual (hydraulic expanding is optional.) | |||||||
Pressing device for coil | standard | |||||||
Coil car | optional | |||||||
Straightening speed | 0-15m/min | |||||||
Inverter for adjusting speed | standard | |||||||
Straightening roller (mm) | Φ70×9 (upper 4 / lower 5) | |||||||
Straightener motor | 4HP | 5HP | 7.5HP | 10HP | ||||
Electrical power | 380V, 3 phase, 50HZ |
