0.8-9mm, model GLK5
0.8-9mm decoiler straightener feeder 3 in 1, model GLK5-600, 800, 1000, 1300
- Brand： GOODMAC
- Applicable sheet metal material： GLK5-600, GLK5-800, GLK5-1000, GLK5-1300
- Model： Steel, aluminum, brass, copper, etc
- Coil car for loading coil： optional
- Decoiler expanding type： by automatic hydraulic cylinder
- Arm shape pressing device for coil： standard
- Decoiling input direction： from down to up
- Feeding direction： from left to right, or from right to left
- Uncoiler and feeder synchronize： Yes
- loop control ： by sensor
- INQUIRY

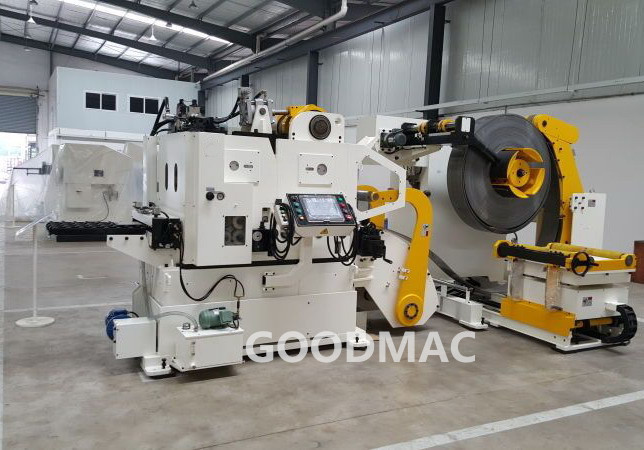

This series machine contains decoiler, straightener, and NC servo roll feeder, so as 3 in 1 coil feed line.
It can decoil sheet metal strip coil, then straighten it, then feed it to press machine automatically, for automatic stamping & punching. It has perfect straightening performance and precise feeding performance.
It can be customized according to your special application requirement. Welcome to contact us for more details.
Specification
| Model | GLK5-600 | GLK5-800 | GLK5-1000 | GLK5-1300 |
| Metal sheet coil width | 70-600mm | 70-800mm | 70-1000mm | 70-1300mm |
| Metal sheet thickness | 0.8-9mm | |||
| Coil weight maximum | 5000KGS | 5000KGS | 7000KGS | 10000KGS |
| Coil inside diameter | Φ508mm | |||
| Coil outside diameter | Φ1400mm | |||
| Feeding speed | 0-16 m/min | |||
| Feeding precision | ±0.15mm | |||
| Decoiler mandrel expanding | by hydraulic cylinder | |||
| Straightener roller | 9 pieces (upper 5 / lower 4) | |||
| Electrical power | 380V, 3 Phase, 50HZ | |||
| Decoiler motor | 3.7KW | 3.7KW | 5.5KW | 7.5KW |
| Servo motor | 15KW | 15KW | 22KW | 30KW |
| Pneumatic pressure | 5 kg/cm² | |||
Straightening capacity 1
(When material yield strength is 245N/mm², tensile strength is 392N/mm².)
| Model | Metal sheet thickness × width (mm) | |||||||
| 0.8-3.2 | 4.0 | 4.5 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | |
| GLK5-600 | 600 | 450 | 331 | 253 | 200 | |||
| GLK5-800 | 800 | 648 | 450 | 331 | 253 | 200 | ||
| GLK5-1000 | 1000 | 800 | 648 | 450 | 331 | 253 | 200 | |
| GLK5-1300 | 1300 | 1013 | 800 | 648 | 450 | 331 | 253 | 200 |
Straightening capacity 2
(When material yield strength is 600N/mm², tensile strength is 960N/mm².)
| Model | Metal sheet thickness × width (mm) | ||||||||
| 0.8-2.3 | 2.8 | 3.2 | 4.0 | 4.5 | 5.0 | 6.0 | 7.0 | 8.0 | |
| GLK5-600 | 533 | 432 | 374 | 292 | 257 | 228 | 180 | 132 | 101 |
| GLK5-800 | 527 | 427 | 369 | 289 | 254 | 225 | 180 | 132 | 101 |
| GLK5-1000 | 521 | 422 | 365 | 286 | 251 | 223 | 180 | 132 | 101 |
| GLK5-1300 | 511 | 414 | 358 | 281 | 246 | 219 | 178 | 132 | 101 |
