1.0-6.0mm, model TGL-H

  • 1.0-6.0mm decoiler and straightener 2 in 1, model TGL-300H, 400H, 500H, 600H, 700H

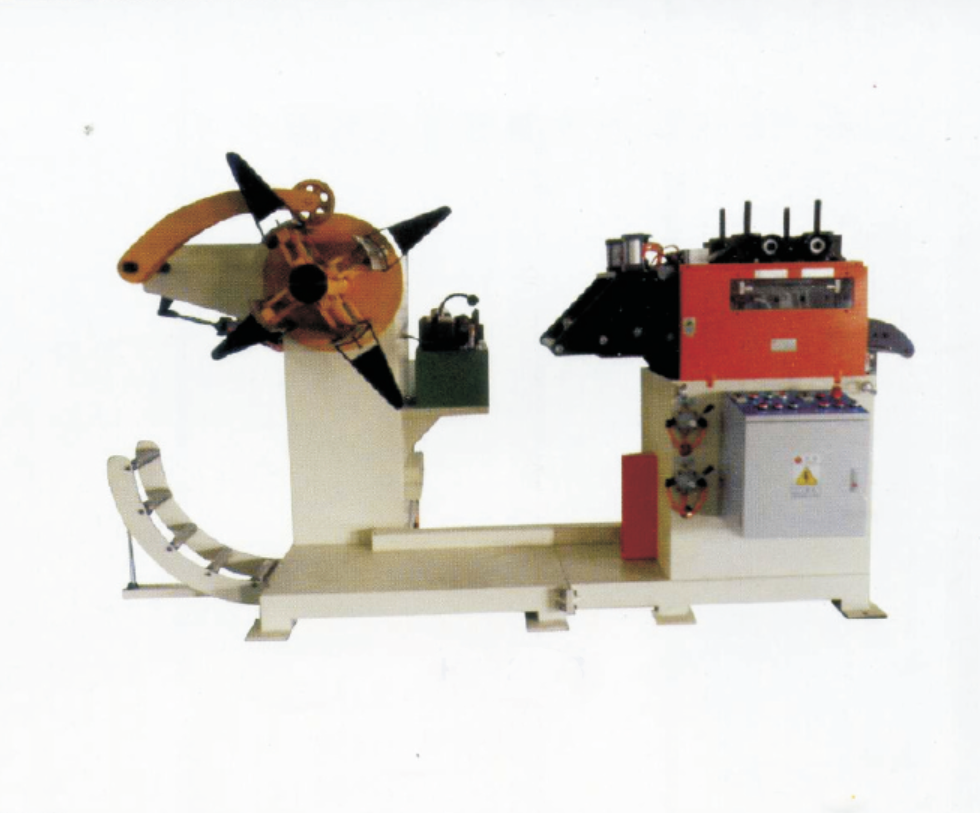

1.0-6.0mm decoiler and straightener 2 in 1, model TGL-300H, 400H, 500H, 600H, 700H

1.0-6.0mm decoiler and straightener 2 in 1, model TGL-300H, 400H, 500H, 600H, 700H

  • Brand: GOODMAC
  • Model: TGL-200H, TGL-300H, TGL-400H, TGL-500H, TGL-600H
  • INQUIRY


Specification

ModelTGL-300HTGL-400HTGL-500HTGL-600HTGL-700HTGL-800HTGL-1000H
Metal sheet coil width300mm400mm500mm600mm 700mm800mm1000mm
Metal sheet thickness1.0-6.0mm (Heavy duty)
Straightening capacity, thickness × width (mm)1-2.53004005006007008001000
3.2600600550
4.0360350350320
4.5320300280280260
5.0250280280280250250220
6.0180200200200200200180
Coil inside diameter450-530mm
Coil outside diameter1200mm1500mm
Coil weight2000KGS3000KGS5000KGS
Mandrel expandingmanual (hydraulic expanding is optional.)
Pressing device for coilstandard
Coil caroptional
Straightening speed0-15m/min
Inverter for adjusting speedstandard
Straightening roller (mm)Φ90×9 (upper 4 / lower 5)
Straightener motor5HP7.5HP10HP
Electrical power380V, 3 phase, 50HZ
