0.5-3.2mm, model TGL

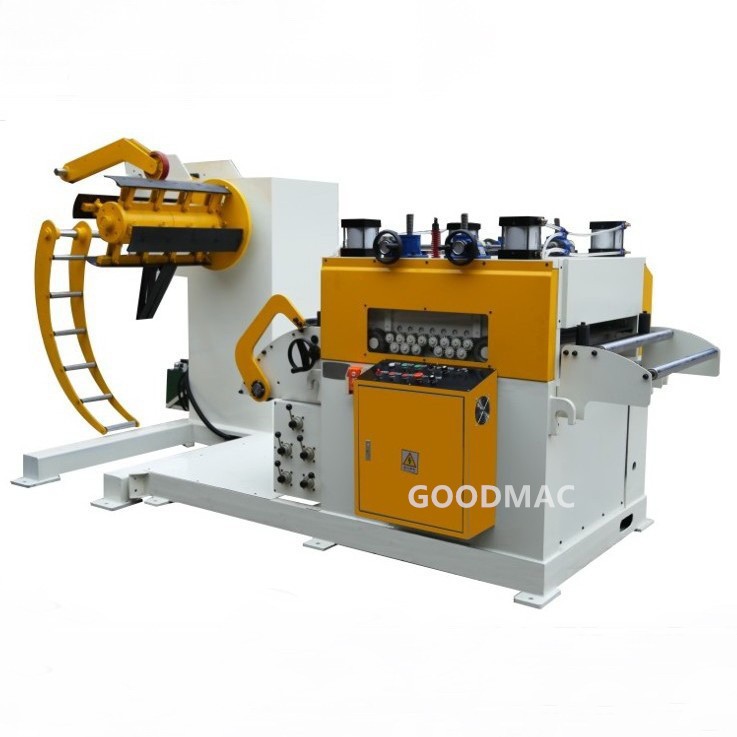

  • 0.5-3.2mm decoiler and straightener 2 in 1, model TGL-300, 400, 500, 600, 700
0.5-3.2mm decoiler and straightener 2 in 1, model TGL-300, 400, 500, 600, 700

0.5-3.2mm decoiler and straightener 2 in 1, model TGL-300, 400, 500, 600, 700


I. Feature
This TGL series machine combiness decoiler and straightener together, so as 2 in 1. It can decoil sheet metal strip coil, then straighten it automatically, for automatic stamping & punching. It has perfect straightening performance.
It can be customized according to your special application requirement. Welcome to contact us for more details.

II. Specificatio

ModelTGL-300TGL-400TGL-500TGL-600TGL-700TGL-800TGL-1000
Metal sheet coil width300mm400mm500mm600mm 700mm800mm1000mm
Metal sheet thickness0.5-3.2mm
Coil inside diameter450-530mm
Coil outside diameter1200mm
Coil weight2000KGS3000KGS4500KGS5000KGS
Mandrel expandingmanual (hydraulic expanding is optional.)
Pressing device for coilstandard
Coil caroptional
Straightening speed15m/min
Inverter for adjusting speedoptional
Straightening rollerΦ48mm×9 (upper 4 / lower 5)
Straightener motor1.5KW2.2KW3.7KW
Electrical power380V, 3 phase, 50HZ
