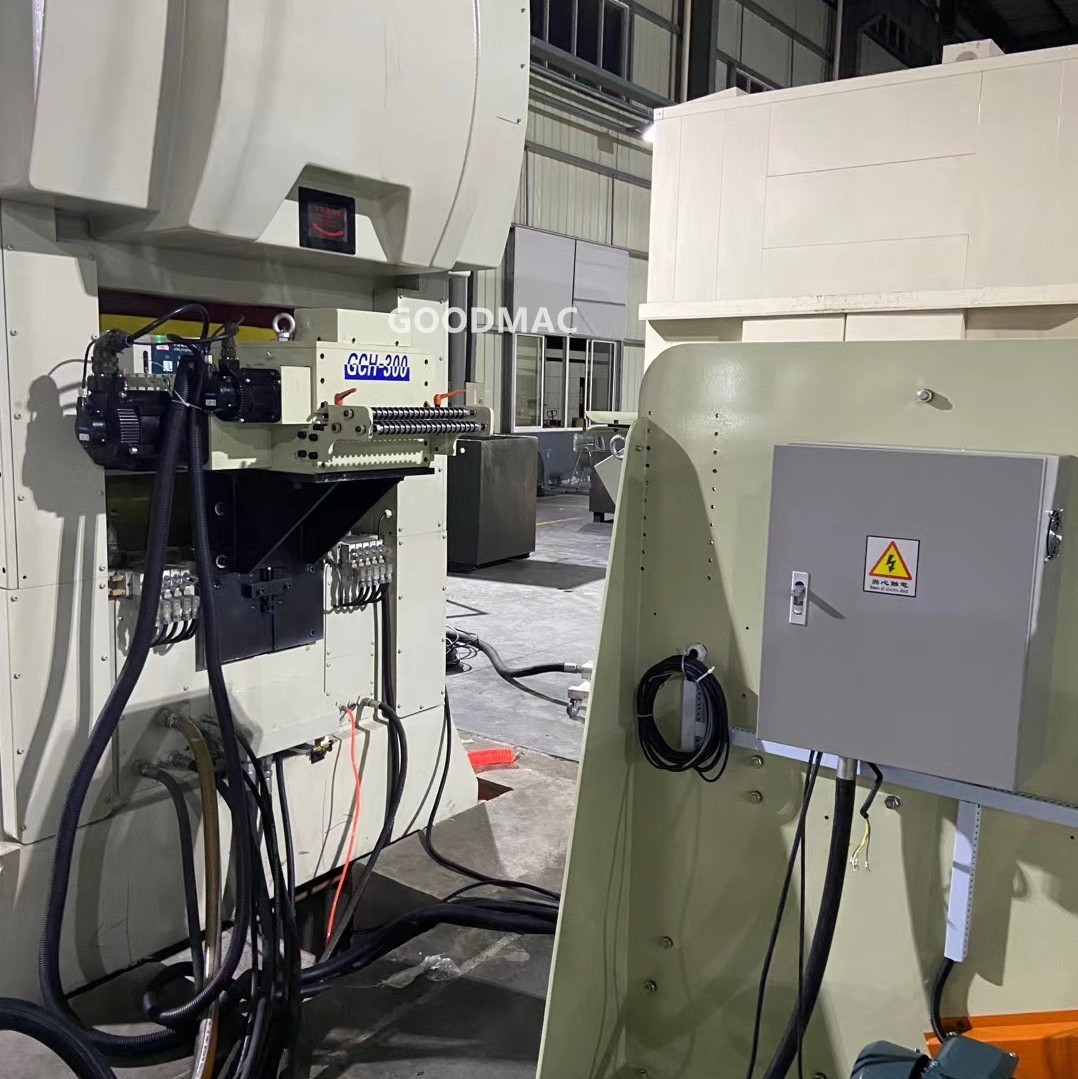

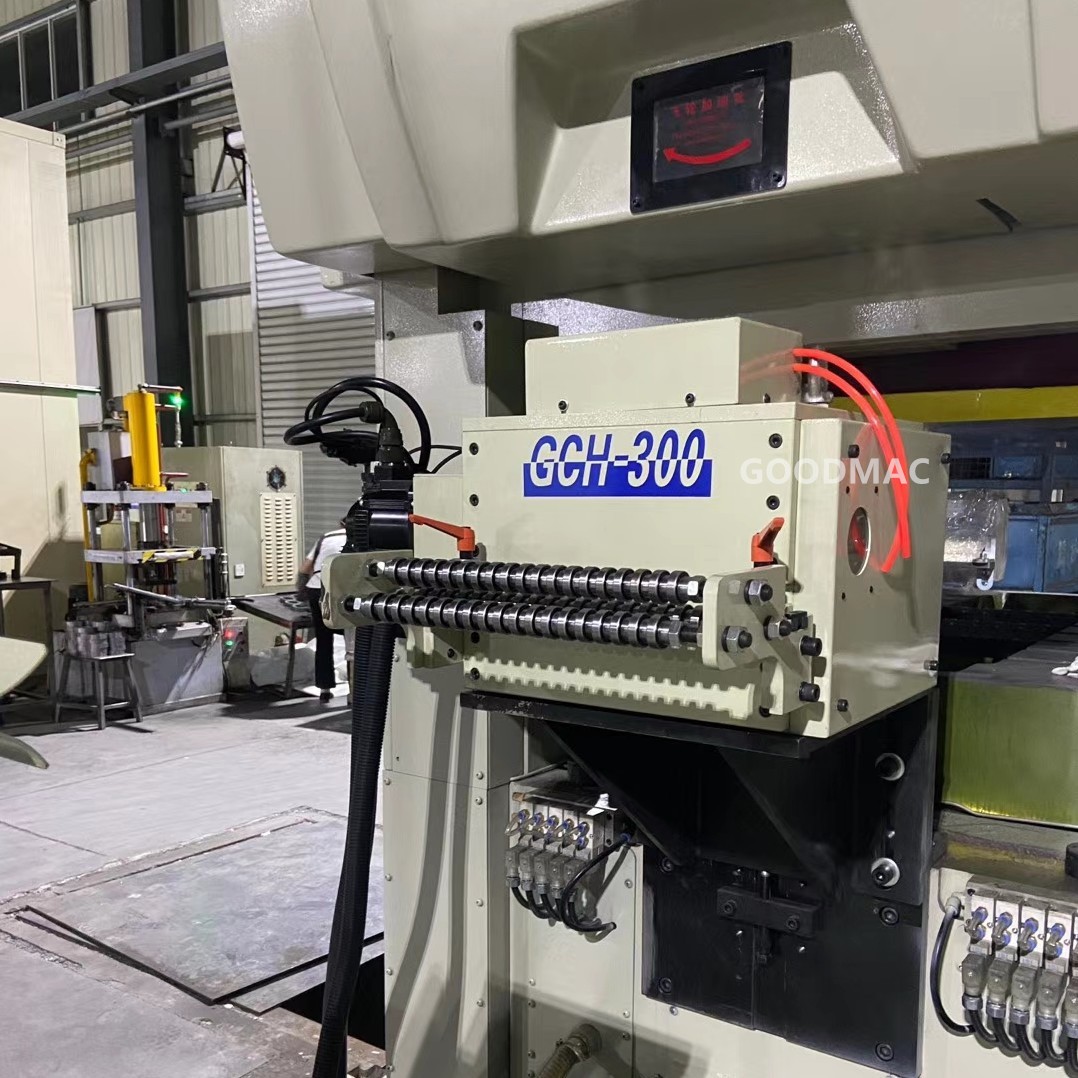

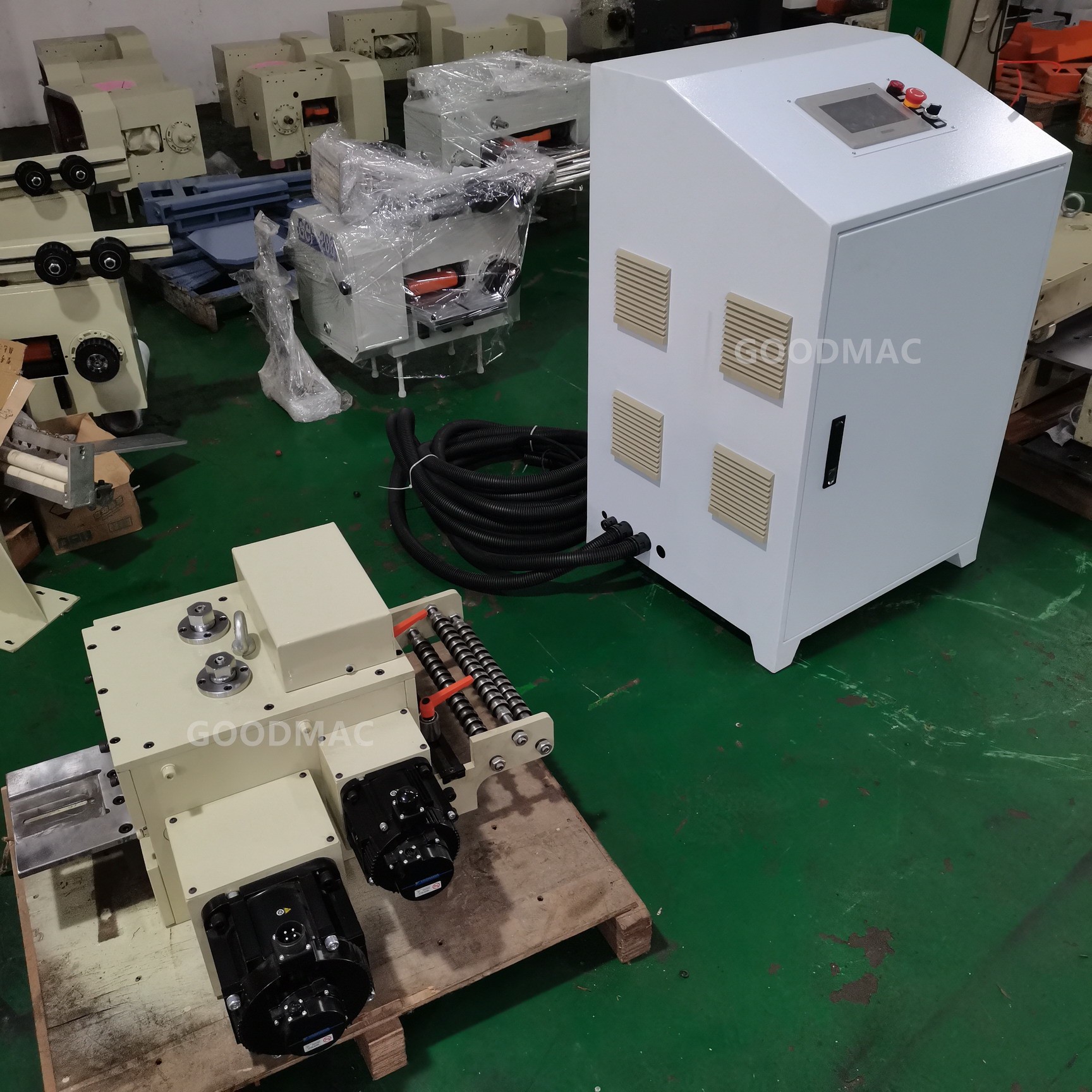

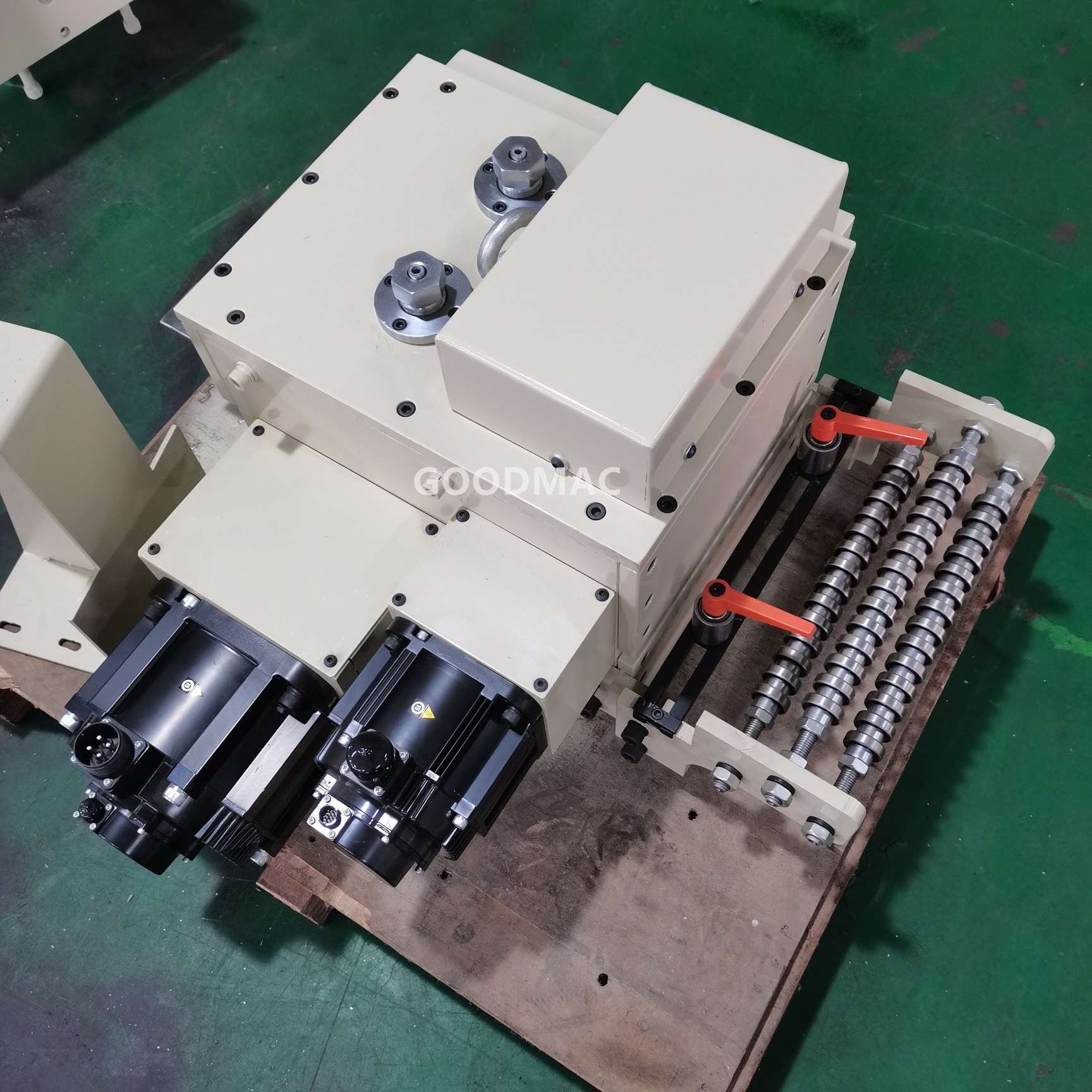

60m/min high speed NC two-servo roll feeders, model GCH-200, 300, 400, 450, 500

I. Description.
1. It can clamp and feed applicable sheet metal strip to high speed press machine for high speed stamping.

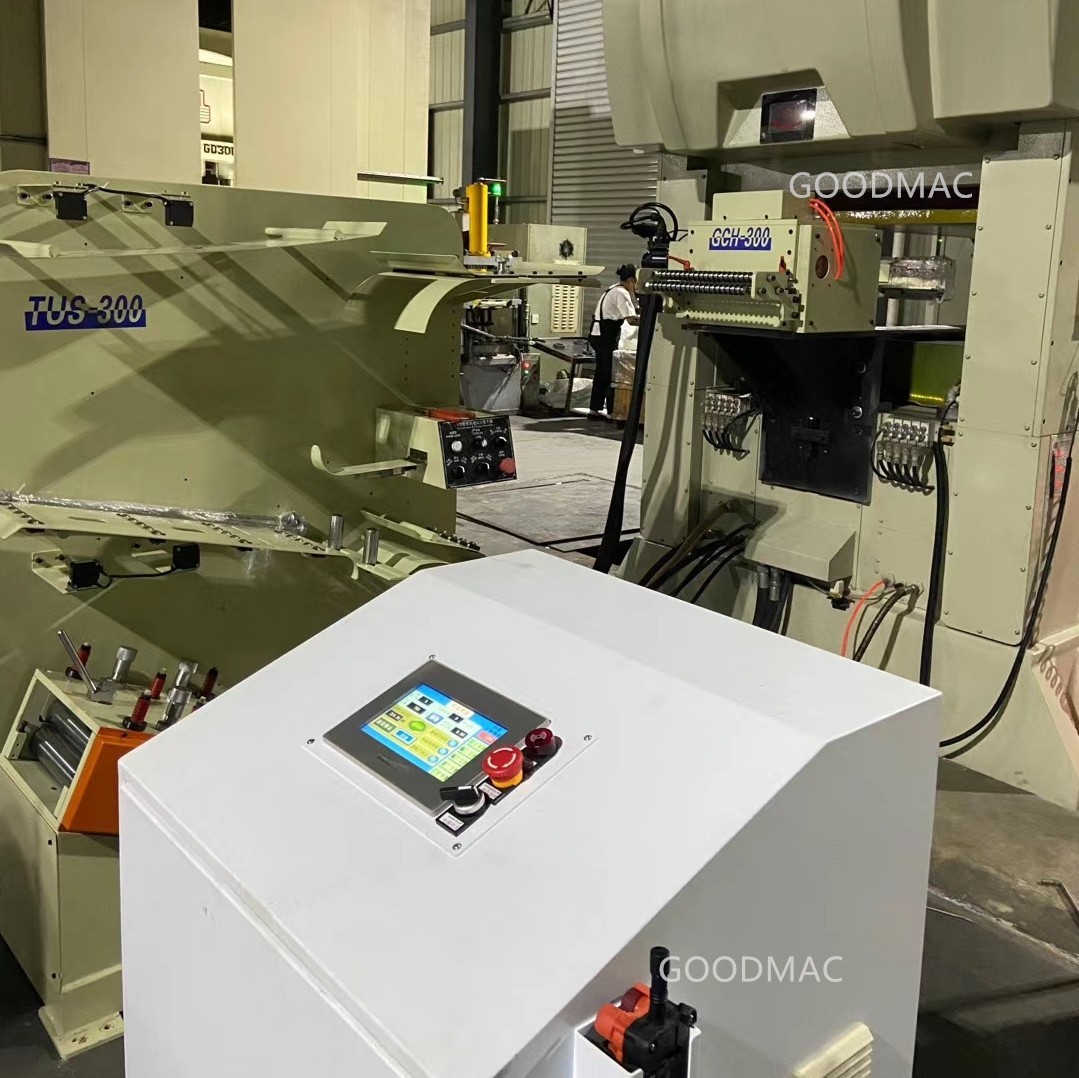

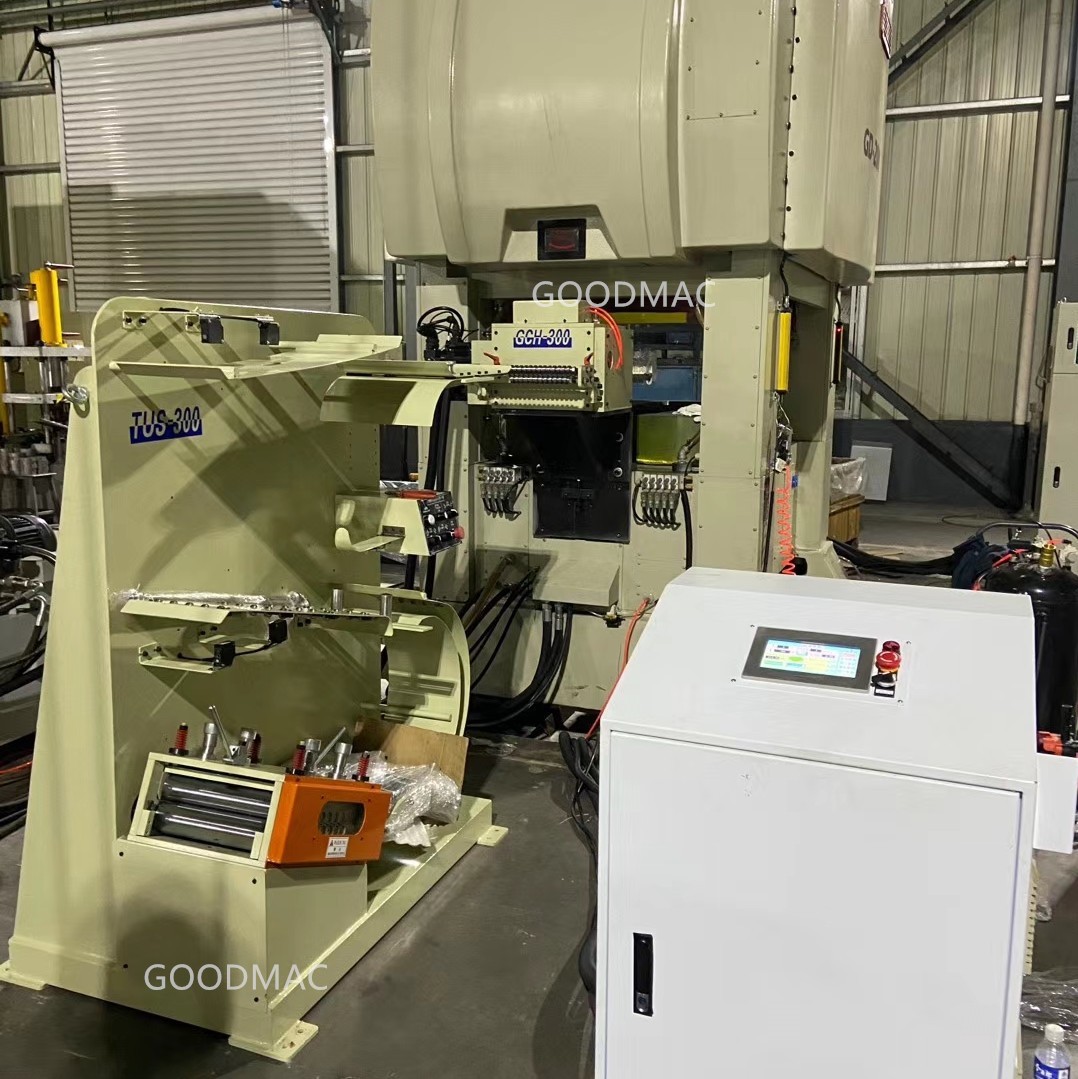

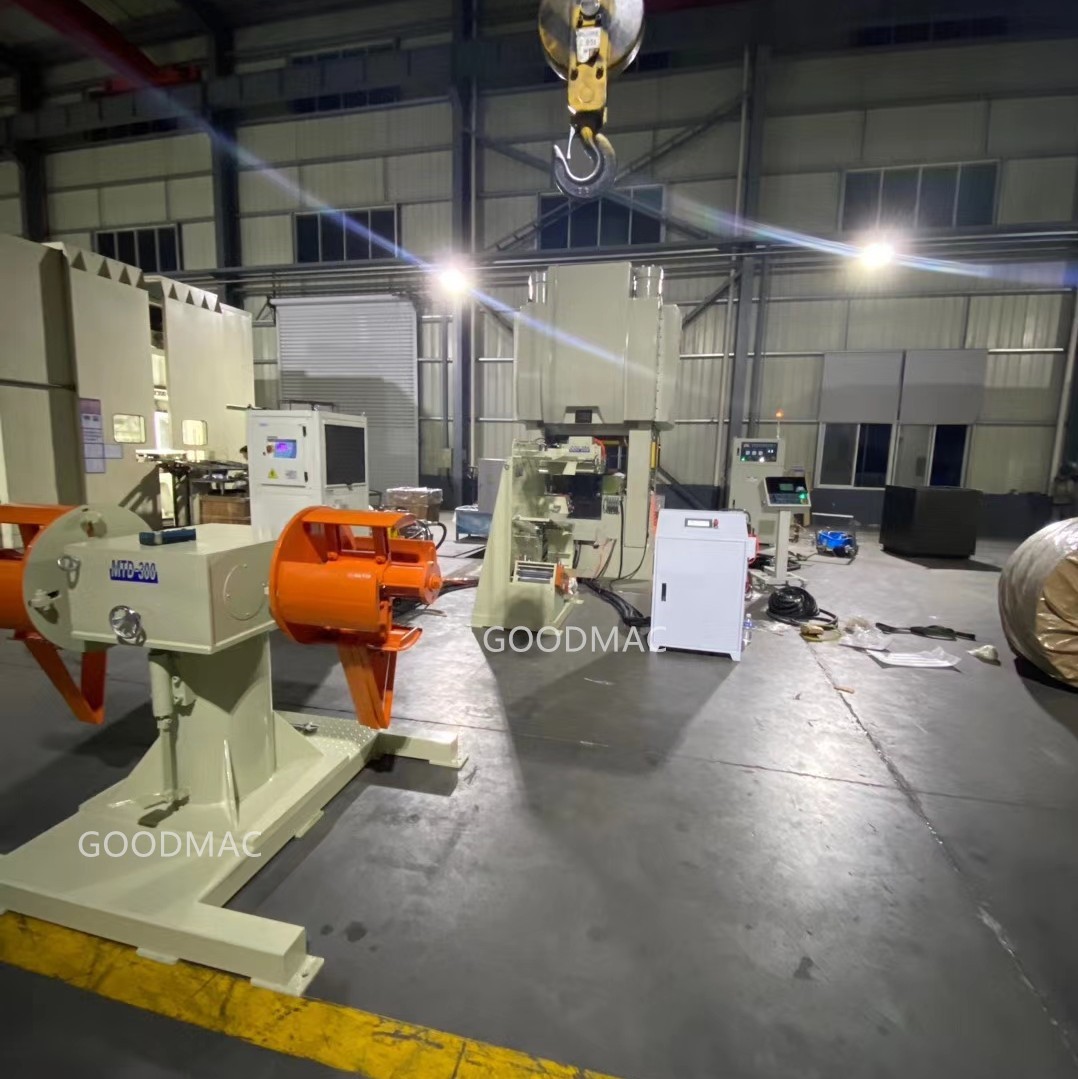

2. High speed stamping line includes a double head decoiler, a S or U loop straightener, a high speed NC servo roll feeder, a high speed press machine.

II. Feature
1. High speed, upto 600 strokes per minute.
2. High precision feeding pitch, within ±0.03mm.

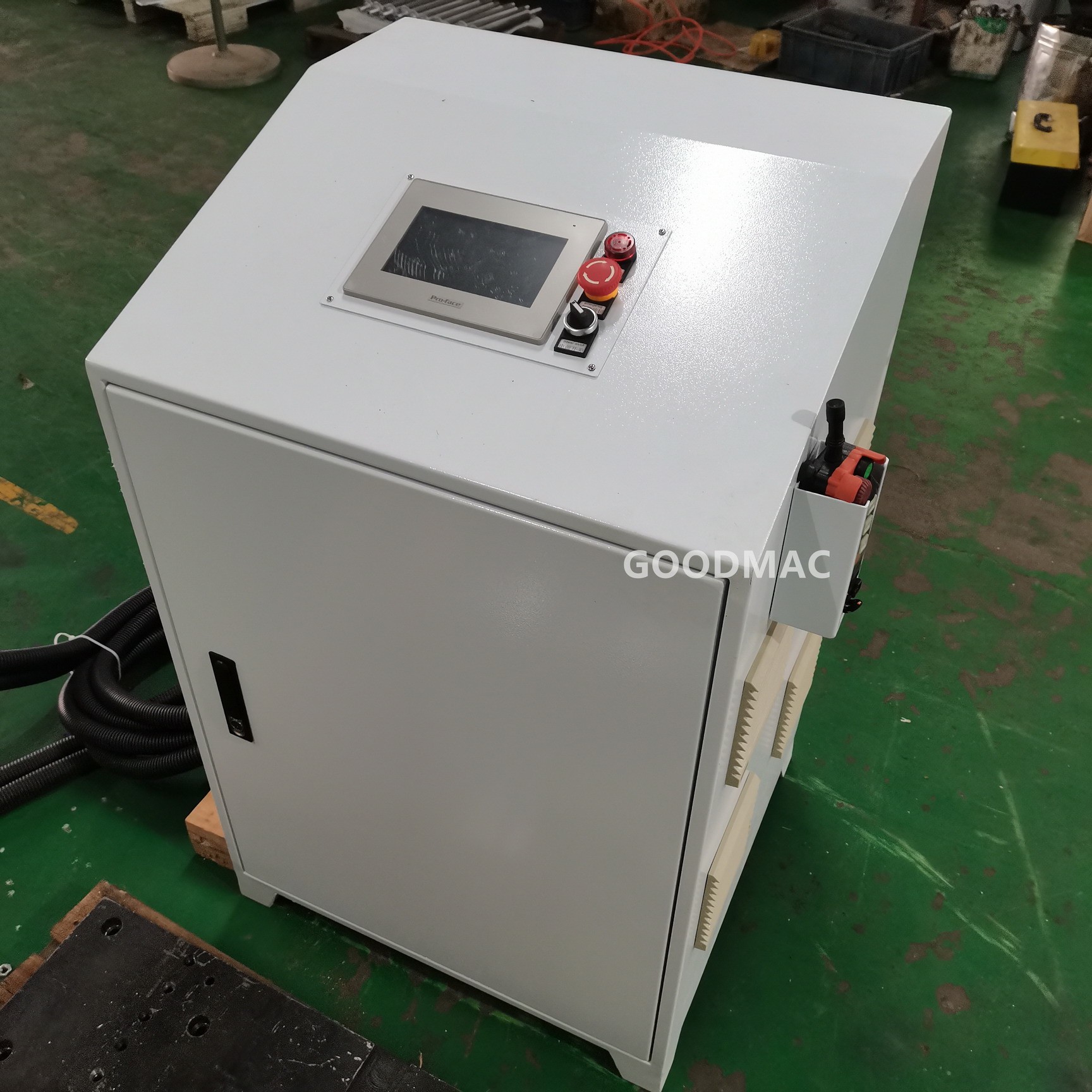

3. Numerial control, as touch screen human machine interface, for inputing feeding pitch length number.
4. Releasing angle can be adustable. Releasing method is through a servo motor.

III. Specification

ModelGCH-200GCH-300GCH-400GCH-450GCH-500
Metal sheet width200mm300mm400mm450mm500mm
Metal sheet thickness0.1-1.6mm
Feeding length per stroke0-9999.99mm
Feeding strokesmaximum 600 strokes per minute
Feeding speed0-60m/min
Servo motor power4.4KW7.5KW11KW
Releasing methodby another servo motor 1.3KW
Servo motorsYASKAWA (Japan brand)
ServopackYASKAWA (Japan brand)
EncoderHENGSTLER (Germany)
HMI (touch screen)Proface (French brand)
Pneumatic componentAIRTAC (Taiwan brand)
Electrical power380V, 3 phase, 50HZ (or else)
