1.0-4.5mm, model GO-T

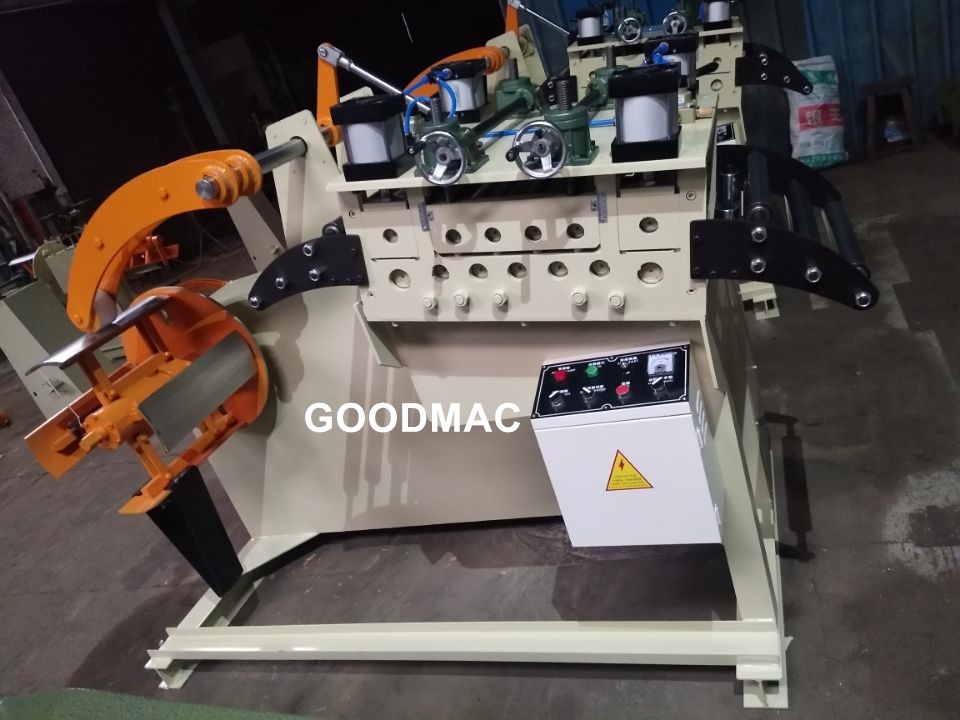

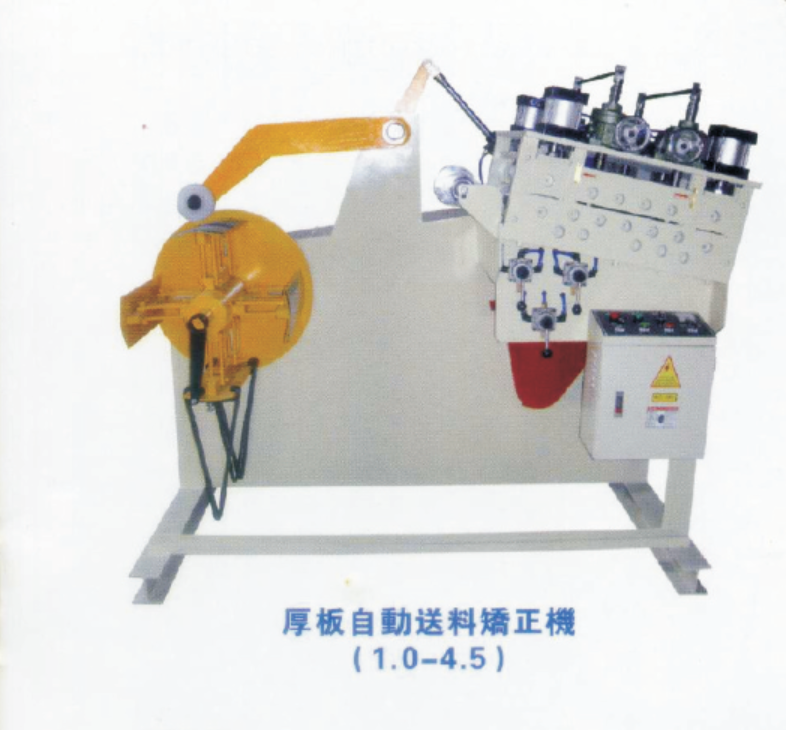

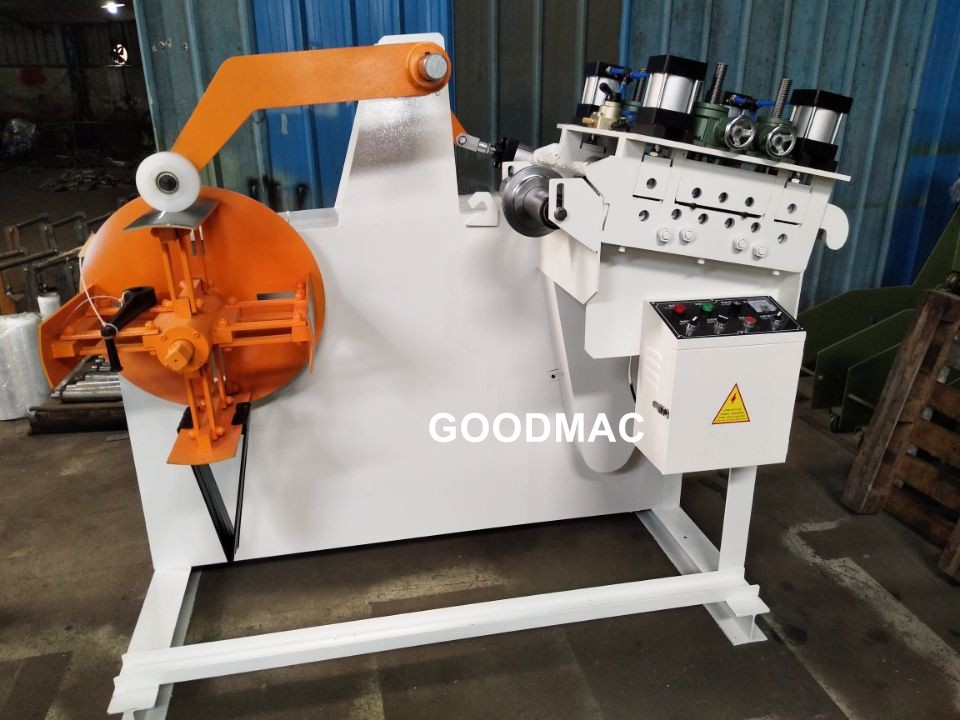

  • 1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T
  • 1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T
  • 1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T
1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T 1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T 1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T

1.0-4.5mm decoiler and straightener 2 in 1, model GO-200T, 300T, 400T, 500T, 600T

  • Pressing for rollers: by pneumatic cylinders
  • Straightening roller adjustment method: by worm gear devices
  • INQUIRY


ModelGO-200TGO-300TGO-400TGO-500TGO-600T
Metal sheet coil width200mm300mm400mm500mm600mm
Metal sheet thickness1.0-4.5mm (Thick)
Coil inside diameter450-530mm
Coil outside diameter1200mm
Coil weight800KGS1000KGS1200KGS2000KGS2500KGS
Mandrel expandingmanual   (hydraulic expanding is optional.)
Pressing device for coilincluded
Straightening speed15m/min
Inverter for adjusting speedincluded
Motor power2.2KW3KW4KW5.5KW
Electrical power380V, 3 phase, 50HZ (or else)
