C frame high speed press

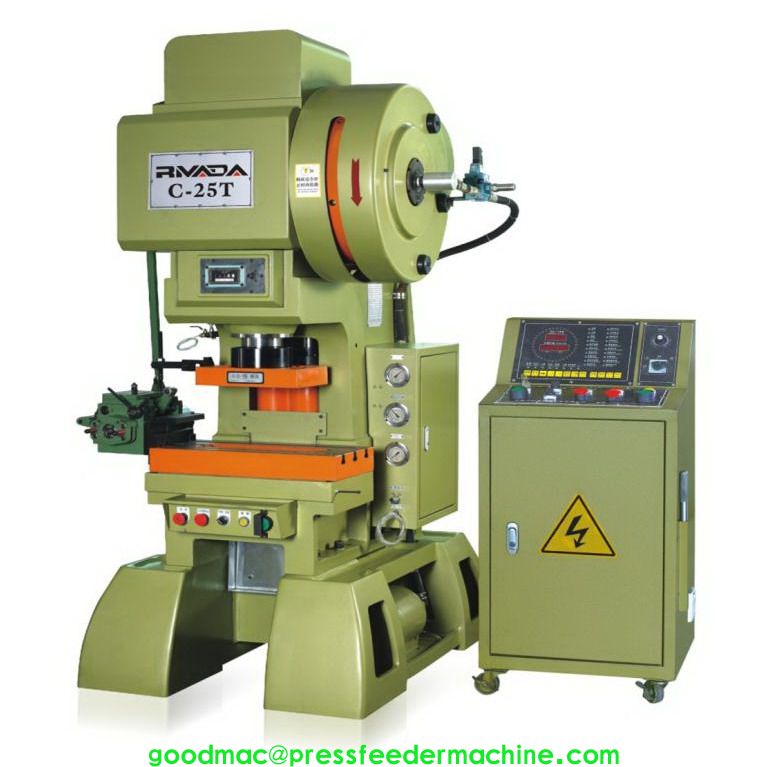

C frame 25ton high speed press machine, model C-25T
- Brand： GOODMAC
- Model： C-25T
- Type： C frame
- Structure material： cast iron
- High speed： 200-1000 stroke per minute
- Precise： high
- Payment： T/T, L/C
- Loading port： Shenzhen
- Stamping line： available
- INQUIRY
C FRAME 25TON HIGH SPEED PRESS MACHINE, MODEL C-25T
Features:
1. It adopts high strength cast iron, and then eliminates internal stress under natural environment, in order to make sure of stable material state and precision, which is very suitable for high speed stamping and punching. It is different from welding structure.
2. It adopts two pieces of steel guide rails, and one piece of central pillar, zero-error ball bearing, to minimize dynamical friction.
3. It adopts automatic forced lubrication, to minimize heat deformation, and make sure of precision also.
Specification:

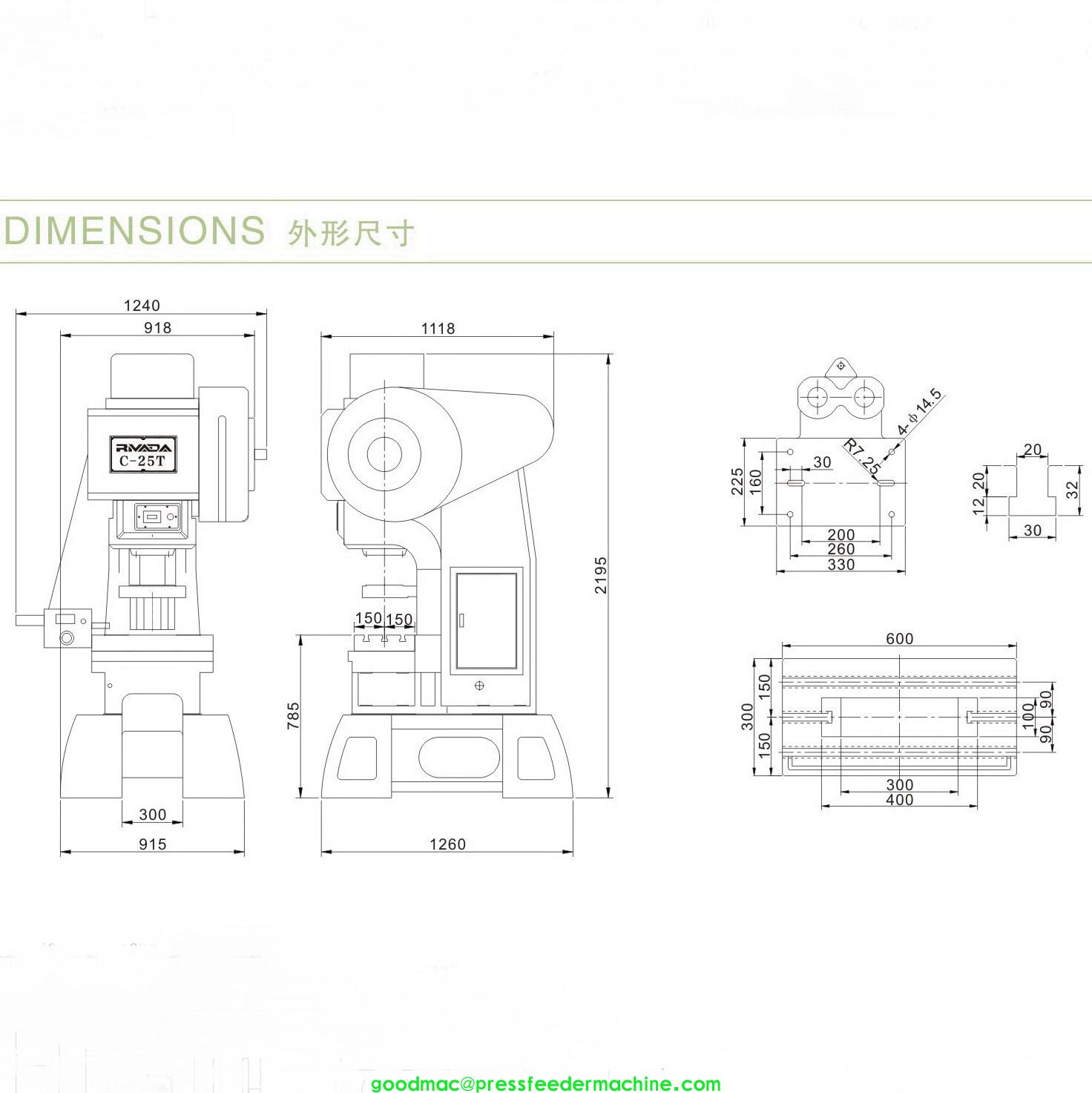

| Item | Description | ||
| Model | C-25T | ||
| Pressing capacity | 25Ton | ||
| Stroke length | 20mm | 25mm | 30mm |
| Stroke per minute (SPM) | 200-1000 | 200-900 | 200-800 |
| Die height | 185-215mm | 183-213mm | 180-210mm |
| Bolster area | 600×300×80mm | ||
| Slide size | 330×225mm | ||
| Adjustment amount | 30mm | ||
| Blanking hole | 100×300mm | ||
| Main motor | 5HP | ||
| Total weight | 2919KG | ||
| Circulatory system | automatic & forced | ||
| Speed control system | Inverter | ||
| Clutch & brake | Pneumatic & friction | ||
| Automatic top stop | Standard | ||
| Vibration system | pneumatic mounting | ||
| Electrical power | 380V, 3Phase, 50HZ | ||
