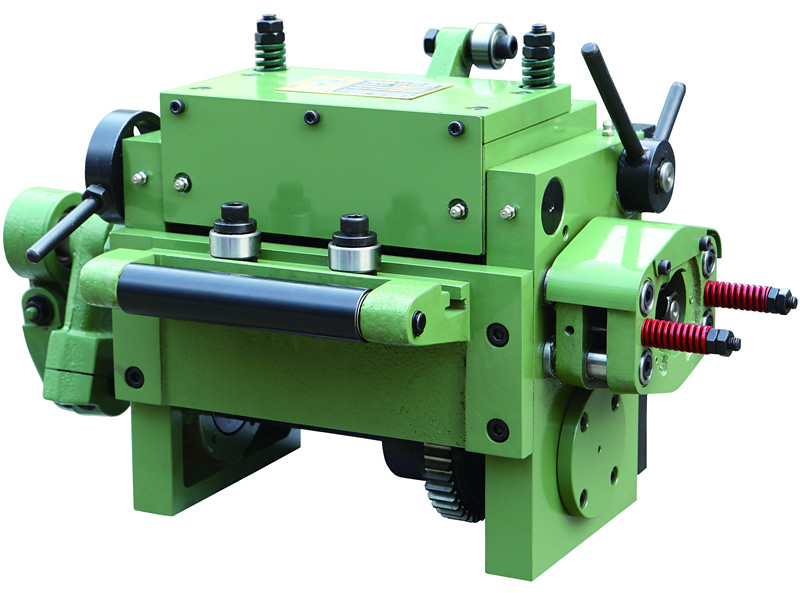

Mechanical roll feeders, model RF

  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
  • 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS
0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS 0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS

0.1-3.5mm mechanical high speed roll feeders, model RF-105NS, 205NS, 305NS, 405NS

  • Brand: GOODMAC
  • Model: RF-105NS, RF-205NS, RF-305NS, RF-405NS
  • Advantage: high speed stroke
  • Advantage: high precision
  • Application: high speed or low speed press machine
  • Mechanical type: no need electrical or pneumatic power
  • Drive power: press machine
  • Press machine's speed: high speed or low speed
  • Feeding direction: from left to right, or right to left.
  • INQUIRY


Specification

ModelMetal sheet width (mm)Feeding length per strokeMetal sheet thicknessFeeding line height Net weight (KGS)
RF-105NS10050mm0.1-1.6mm55-100mm64
RF-205NS20087
RF-305NS300103
RF-405NS400121
RF-138NS13080mm60-120mm76
RF-188NS18084
RF-1310NS130100mm0.1-3.5mm70-140mm142
RF-2010NS200155
RF-3010NS300182
RF-4010NS400200
RF-1315NS130150mm143
RF-2015NS200156
RF-3015NS300181
RF-4015NS400201
RF-1320NS130200mm146
RF-2020NS200159
RF-3020NS300184
RF-4020NS400204
