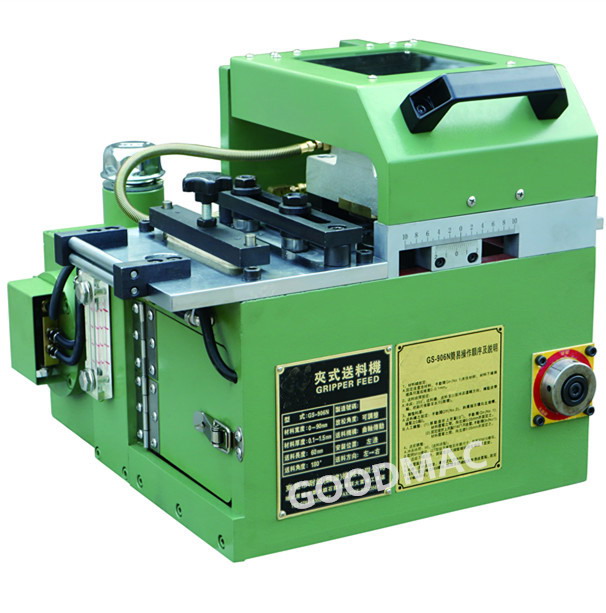

High speed griping feeders, model GS

  • 0.1-1.5mm high speed gripper feeders, model GS-906N
  • 0.1-1.5mm high speed gripper feeders, model GS-906N
  • 0.1-1.5mm high speed gripper feeders, model GS-906N
  • 0.1-1.5mm high speed gripper feeders, model GS-906N
  • 0.1-1.5mm high speed gripper feeders, model GS-906N
0.1-1.5mm high speed gripper feeders, model GS-906N 0.1-1.5mm high speed gripper feeders, model GS-906N 0.1-1.5mm high speed gripper feeders, model GS-906N 0.1-1.5mm high speed gripper feeders, model GS-906N 0.1-1.5mm high speed gripper feeders, model GS-906N

0.1-1.5mm high speed gripper feeders, model GS-906N

  • Brand: GOODMAC
  • Model: GS-906N
  • Function: feed sheet metal strip to press machine
  • Advantage: high speed, up to 1200 stroke per minute
  • Application: high speed press machine
  • Feeding accuracy: very high ±0.05mm
  • Feeding power: press machine’s output shaft
  • Feeding direction: from left to right
  • INQUIRY


Specification

ModelGS-906N
Metal sheet width90mm
Metal sheet thickness0.1-1.5mm
Feeding length per stroke0-60mm
Feeding angle180°
Feeding line height60-120mm
Releasing angleadjustable
Feeding mechanismcrank shaft transmission
Installation positionleft
Feeding directionfrom left to right
Net weight188KGS
