0.05-0.3mm, thin sheet straighteners

  • 0.05-0.3mm high precision straighteners, model GJ-100, 200
0.05-0.3mm high precision straighteners, model GJ-100, 200

0.05-0.3mm high precision straighteners, model GJ-100, 200

  • Brand: GOODMAC
  • Model: GJ
  • Function: straighten sheet metal strip
  • Advantage: for very thin material 0.05-0.3mm
  • Drive mechanism: universal joint
  • Variable frequency speed control system: standard
  • Straightening speed: 0-16m/min
  • Adjusting method: by hand wheel
  • Easy to use: yes
  • INQUIRY

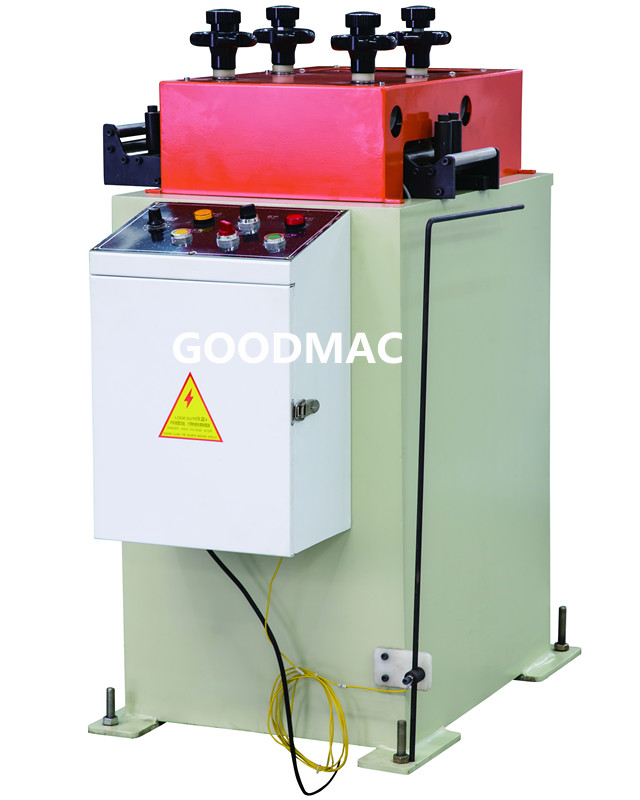

This model GL straightener can straighten very thin sheet metal strip automatically, for automatic stamping & punching.
It has perfect straightening performance. It can be customized according to your special application requirement
.
Welcome to contact us for more details.

Specificatio

ModelGJ10-100GJ10-200
Metal sheet width100mm200mm
Metal sheet thickness0.05-0.3mm
Straightening roller

Φ10mm, 19 pieces
(upper 9, lower 10)

Roller position adjustmentby hand wheel, 4 point adjusting
Roller tension devicestandard
Roller transmissionuniversal joint (cardan joint)
Lubrication devicestandard
Feeding speed0-16m/min
Inverter for   adjusting speedstandard
Loop controlelectronic touch sensor
Motor power1HP
Electrical power380V, 3 phase, 50HZ
