I. Features

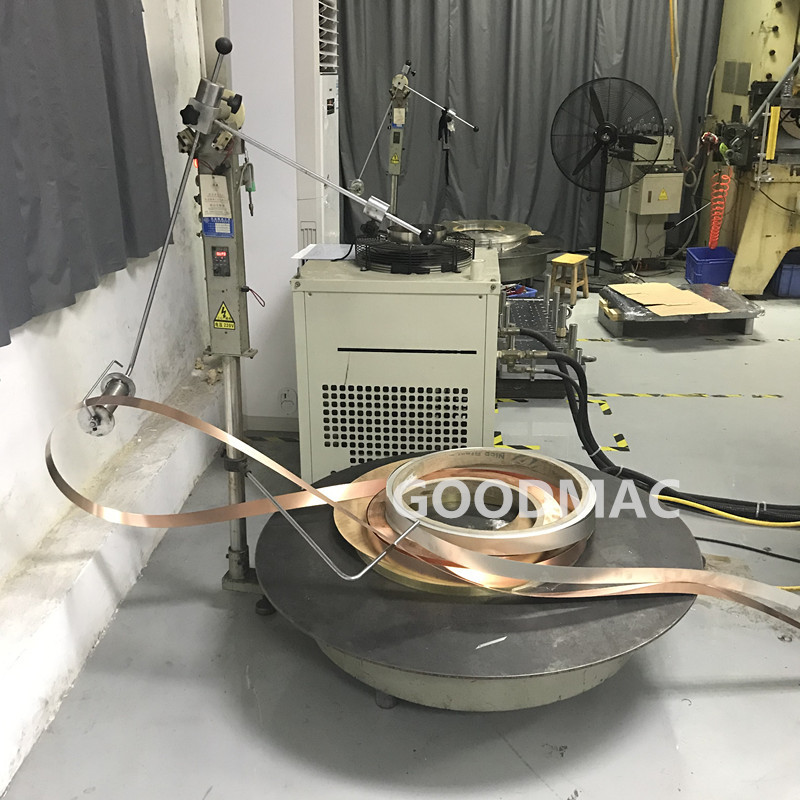

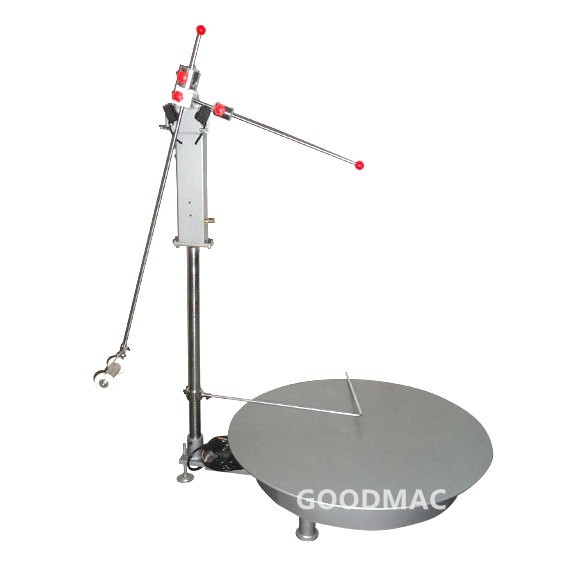

1. This model FU series decoiler can load sheet metal strip coil horizontally, and decoil the sheet metal strip coil automatically.

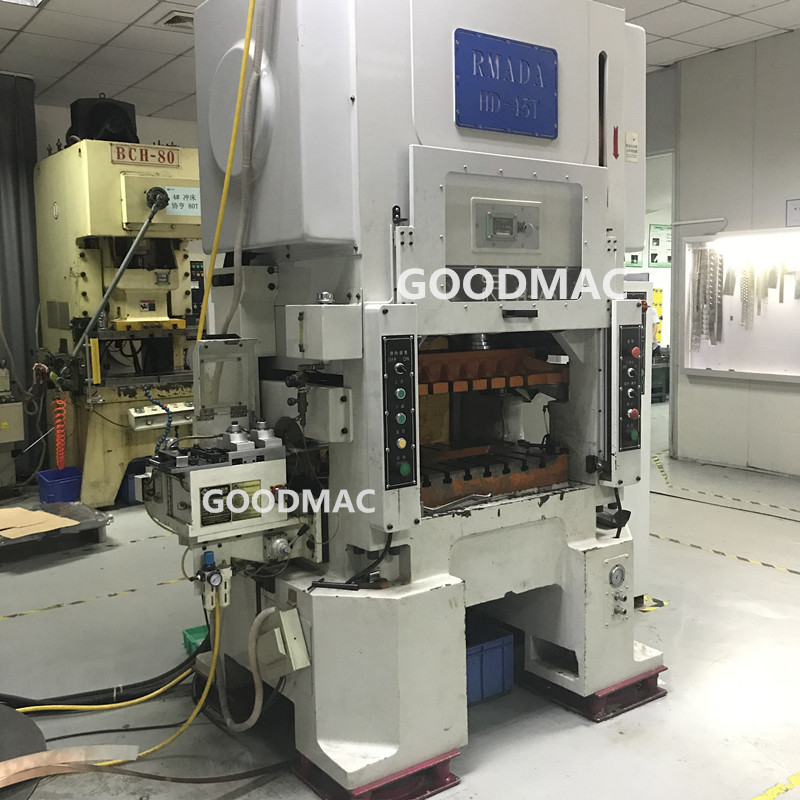

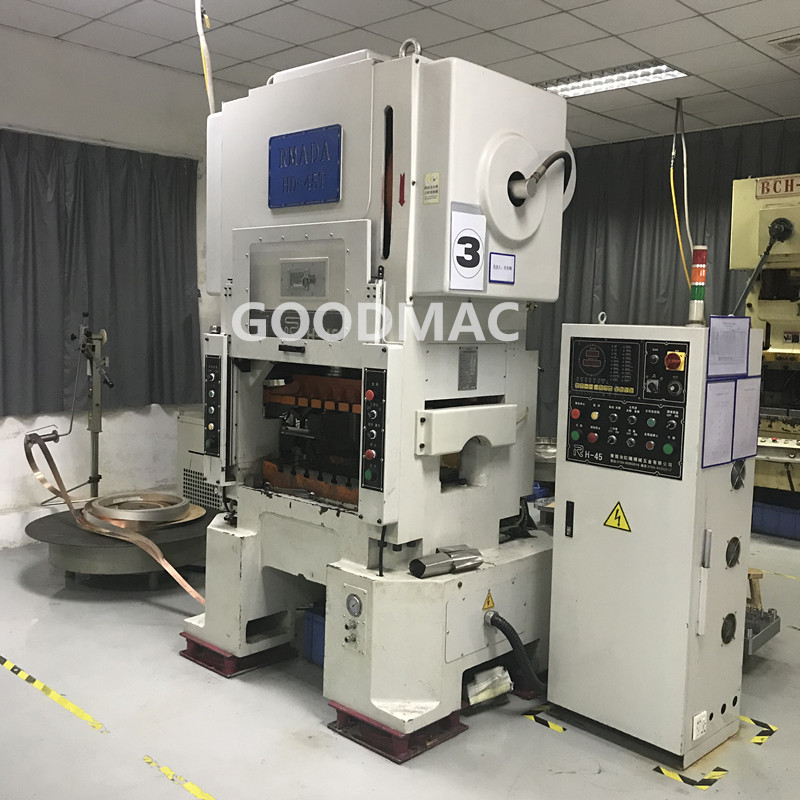

2. It suits for high speed press machines and low speed press machines.
3. It can be customized according to your special application requirement.
II. Specification
Model | FU-500 | FU-800 | FU-1000 | FU-2000 |
Metal sheet coil width | 150mm | 150mm | 150mm | 150mm |
Metal sheet thickness | 0.1-1.0mm | 0.1-1.0mm | 0.1-1.0mm | 0.1-1.0mm |
Coil outside diameter | 800mm | 1000mm | 1000mm | 1200mm |
Metal sheet coil weight | 500KGS | 800KGS | 1000KGS | 1500KGS |
Loaded coils height | maximum 600mm | |||
Motor power | 0.5HP | 0.5HP | 1HP | 2HP |
Decoiling speed | 24 m/min | |||
Inverter for adjusting speed | optional | |||
Electrical power | 380V, 3 phase, 50HZ (or other) |
