Bottle cap seal (lid wad) making machines (high speed punching production line)

Bottle Cap Seal Making Machines (High Speed Punching Production Line)

I. Application

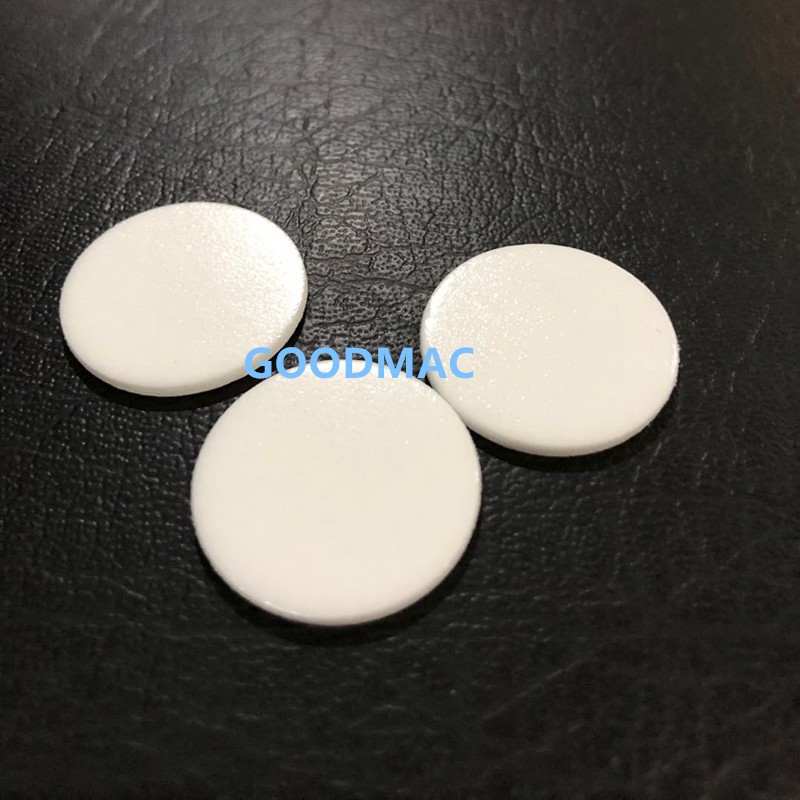

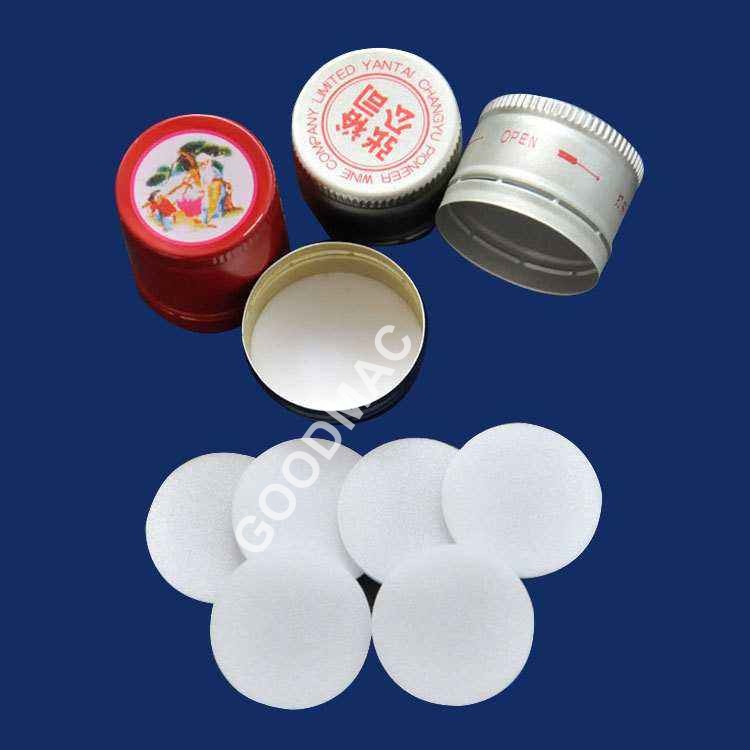

Cap seal usage: bottle cap cover (lid wad)
Cap seal diameter: 25mm or 28mm or else
Cap seal thickness: 1.5mm, 2mm or else

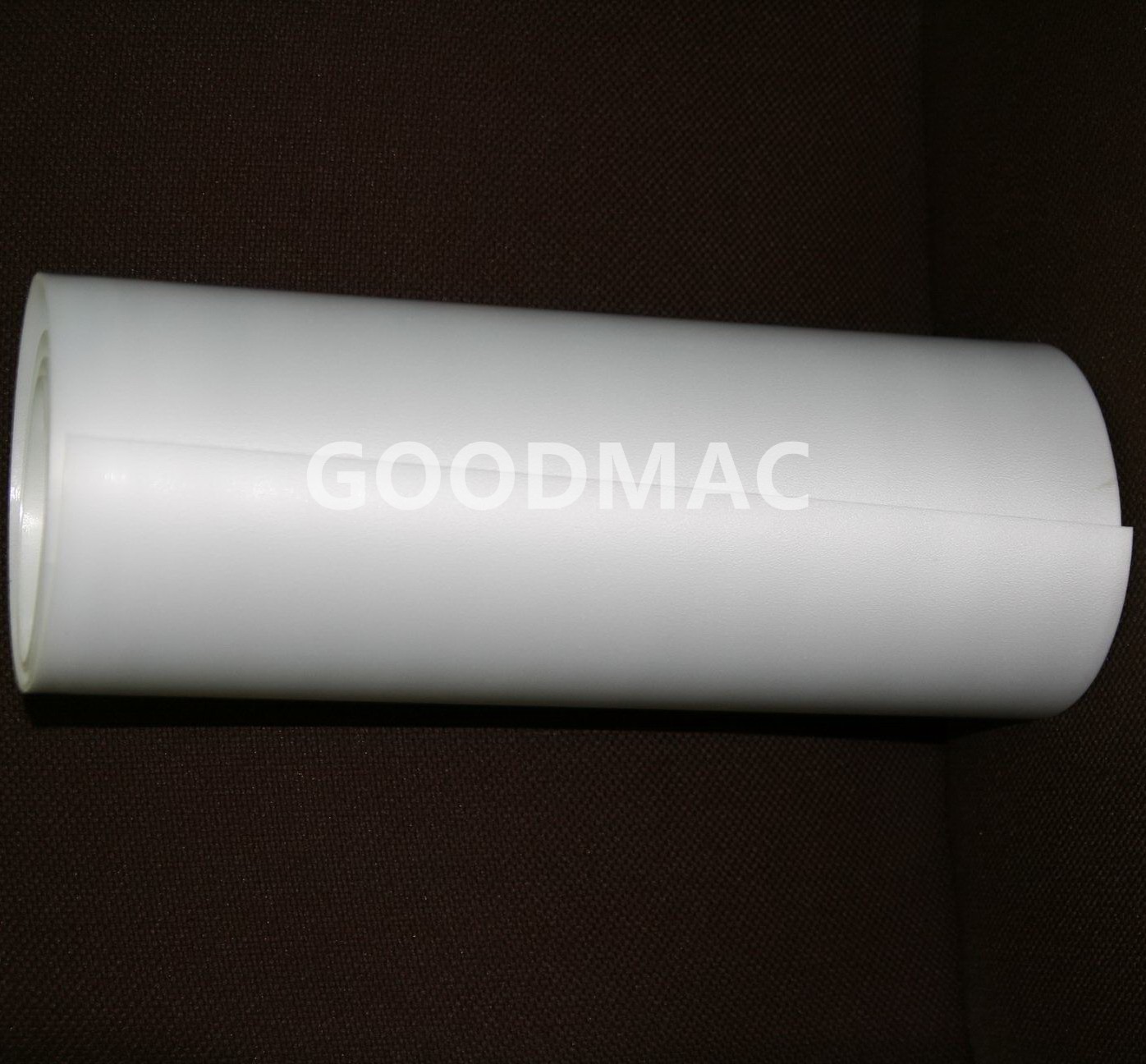

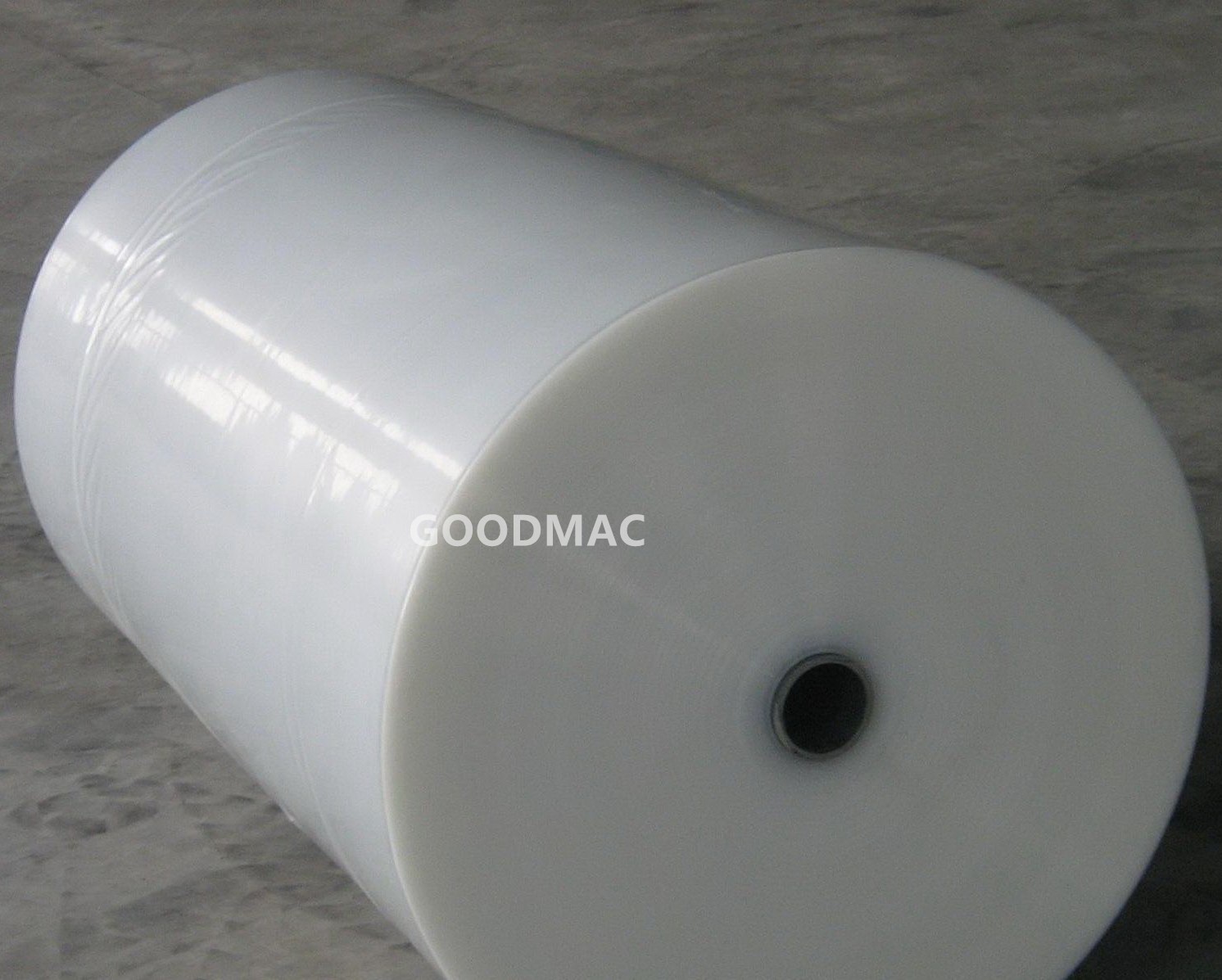

Material: expanded polystyrenec (EPE in roll form as coil)
Color: white or else
Applicable expanded polystyrene sheet thickness: 2mm or else
Applicable expanded polystyrene sheet coil width: maximum 600mm
Applicable expanded polystyrene sheet coil outside diameter: 1000 (customized)
Applicable expanded polystyrene sheet coil inside diameter: 150mm (customized)
Applicable expanded polystyrene sheet coil weight: 70KG (customized)

II. Basic required machines
1. A set of motorized decoiler, model MT-600.
2. A set of NC servo roll feeder, model NCF-600.

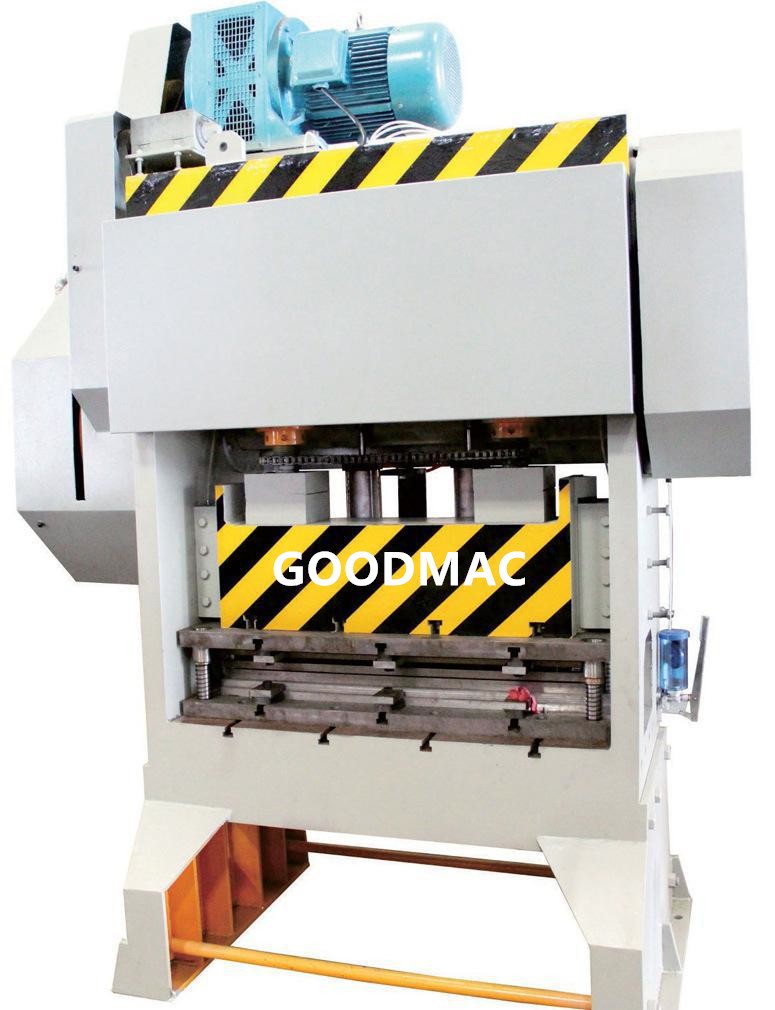

3. A set of mechanical H frame high speed precision press machine (punching machine, 600 strokes
    per minute).

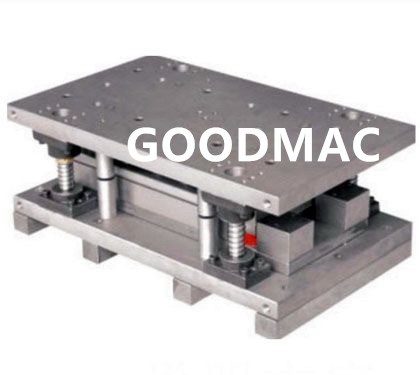

4. A set of high speed punching mold (punching die).
5. A set of motorized recoiler, model MT-600F.

III. Process of the machines
1. The decoiler can decoil above expanded polystyrene sheet coil automatically.
2. The feeder can clamp and feed the expanded polystyrene sheet forward to the press machine
    automatically.
3. The press machine can punch for the polystyrene sheet through the mold very fast, with 260 strokes per
    minute.
4. The punching mold can punch on the sheet by the press machine drive, with working speed 260
    strokes per minute)

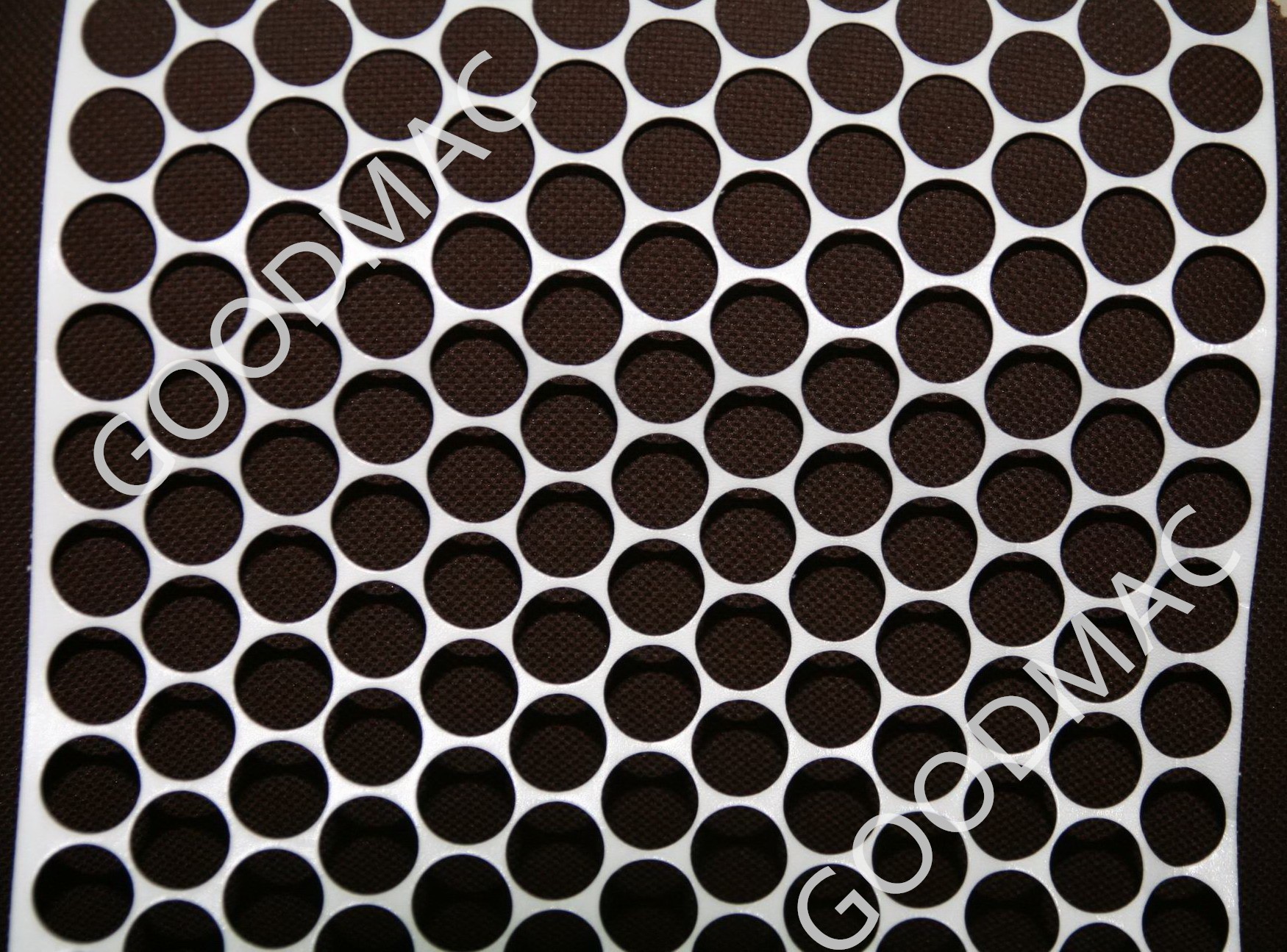

5. After punched, the recoiler can wind the polystyrene sheet scrap to become in roll form.

IV. Advantages
1. High speed press machine is better than low speed press machine.
2. H frame press machine is better than C frame press machine.
3. Two crank press machine is better than single crank press machine.
4. Pneumatic clutch press machine is better than gear type press machine.

V. Other
If you want to buy expanded polystyrene sheet material coils, I can sell them to you.
If you want to buy cap seal products, I can sell them to you.
If you want to buy other machines or punching mold, I can sell them to you.
If you want to buy polystyrene sheet material making machine (extruding machine), I can sell it to you.
