High precision press machine

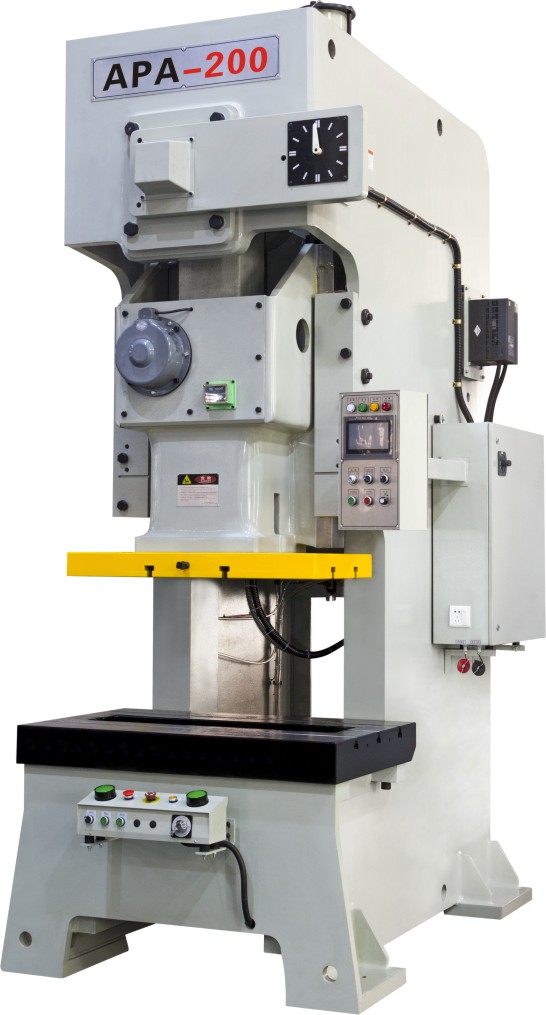

  • 200ton high precision press machine, model APA-200
200ton high precision press machine, model APA-200

200ton high precision press machine, model APA-200


ModelAPA-200
TypeVH
Pressing capacity200Ton
Rated tonnage point6mm3mm
Stroke per minute (variable)20-5050-70
Stroke per minute (fixed)35
Slide stroke200mm100mm
Die height maximum460mm510mm
Slide adjustment110mm
Slide area850x630x90mm
Bolster area1400x820x160mm
Shank holeΦ65mm
Main motorVS18.5x4 (KW.p)
Slide adjustingmotorized adjusting
Pneumatic presure6KG/cm2
PrecisionGB/JIS class 1
Dimension2615x1690x4057mm
Weight23 Ton
Die cushion capacity14 Ton
Die cushion capacity100mm
Die cushion area710x480mm
