High precision press machine

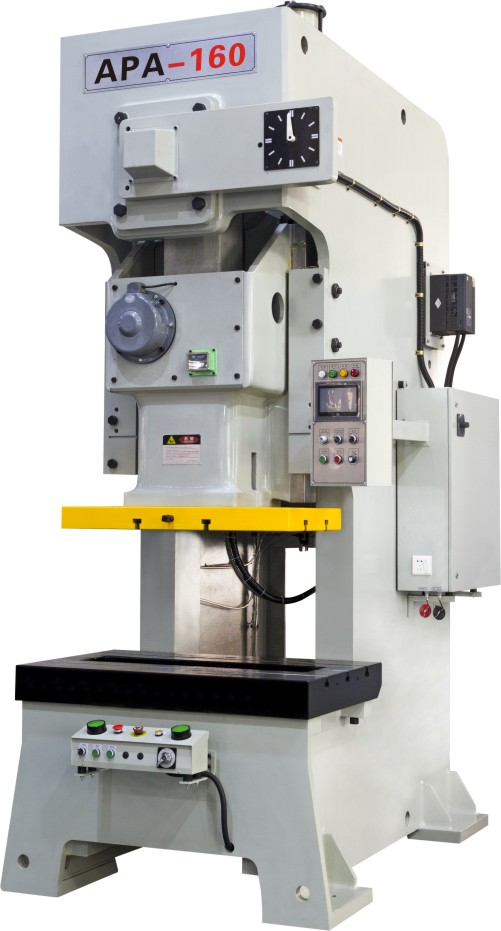

  • 160ton high precision press machine, model APA-160
160ton high precision press machine, model APA-160

160ton high precision press machine, model APA-160


ModelAPA-160
TypeVH
Pressing capacity160Ton
Rated tonnage point6mm3mm
Stroke per minute (variable)20-5040-70
Stroke per minute (fixed)35
Slide stroke200mm90mm
Die height maximum460mm510mm
Slide adjustment100mm
Slide area700x550x90mm
Bolster area1250x800x140mm
Shank holeΦ65mm
Main motorVS15x4 (KW.p)
Slide adjustingmotorized adjusting
Pneumatic presure6KG/cm2
PrecisionGB/JIS class 1
Dimension2300x1400x3800mm
Weight16 Ton
Die cushion capacity10 Ton
Die cushion capacity80mm
Die cushion area650x420mm
