High precision press machine

  • 110ton high precision press machine, model APA-110

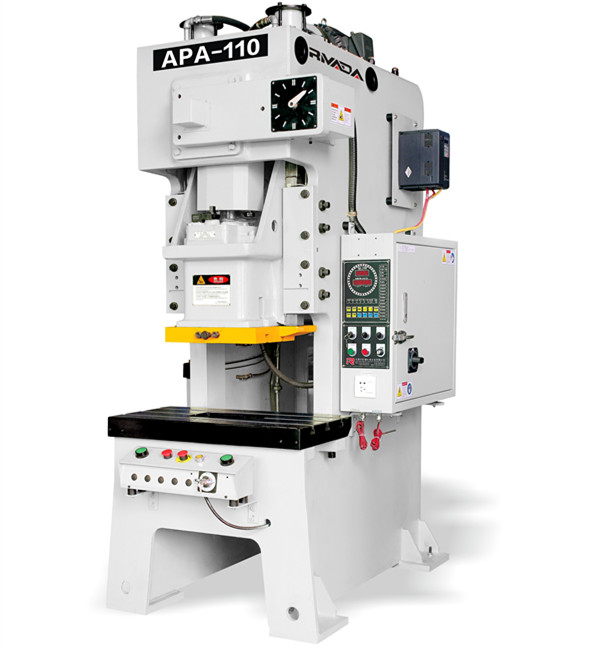

110ton high precision press machine, model APA-110

110ton high precision press machine, model APA-110


ModelAPA-110
TypeVH
Pressing capacity110Ton
Rated tonnage point6mm3mm
Stroke per minute (variable)30-6060-90
Stroke per minute (fixed)50
Slide stroke180mm80mm
Die height maximum360mm410mm
Slide adjustment80mm
Slide area650x470x80mm
Bolster area1150x600x110mm
Shank holeΦ50mm
Main motorVS11x4 (KW.p)
Slide adjustingmotorized adjusting
Pneumatic presure6KG/cm2
PrecisionGB/JIS class 1
Dimension1900x1300x3200mm
Weight9.6 Ton
Die cushion capacity6.3 Ton
Die cushion capacity80mm
Die cushion area500x350mm
