High precision press machine

  • 80ton high precision press machine, model APA-80

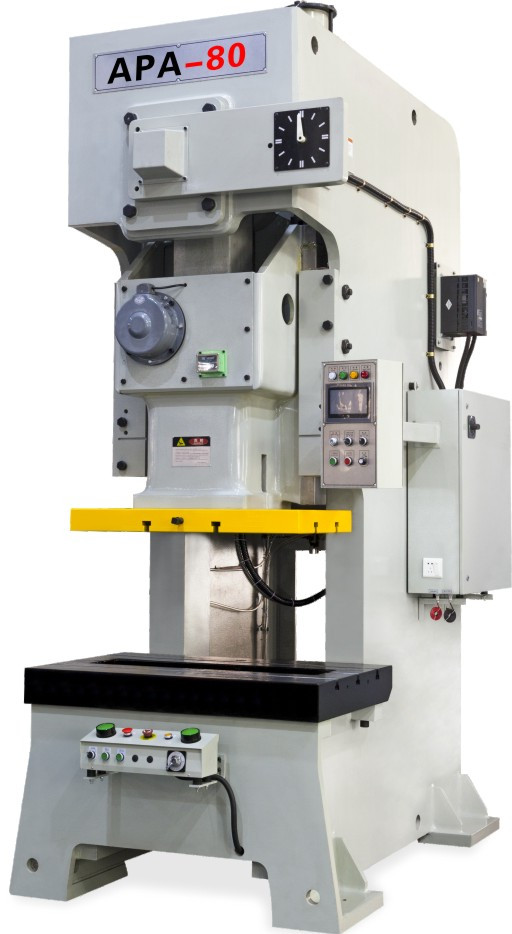

80ton high precision press machine, model APA-80

80ton high precision press machine, model APA-80


ModelAPA-80
TypeVH
Pressing capacity80Ton
Rated tonnage point4mm2mm
Stroke per minute (variable)35-8080-120
Stroke per minute (fixed)65
Slide stroke150mm70mm
Die height maximum340mm380mm
Slide adjustment80mm
Slide area560x420x70mm
Bolster area1000x550x90mm
Shank holeΦ50mm
Main motorVS7.5x4 (KW.p)
Slide adjustingmotorized adjusting
Pneumatic presure6KG/cm2
PrecisionGB/JIS class 1
Dimension1800x1180x2800mm
Weight6.5 Ton
Die cushion capacity3.6 Ton
Die cushion capacity70mm
Die cushion area450x310mm
