High precision press machine

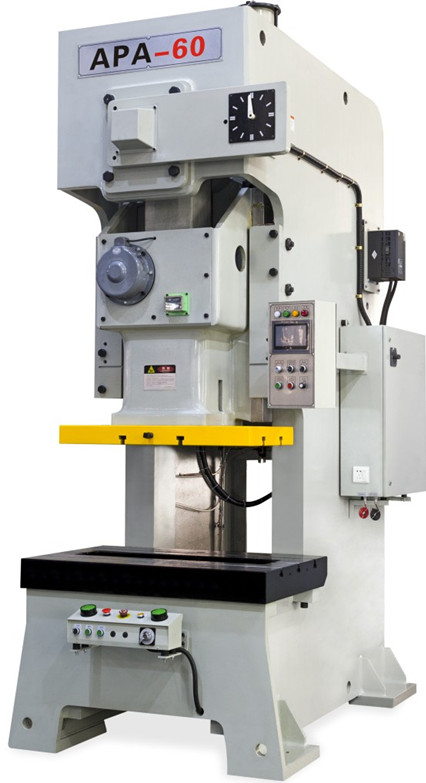

  • 60ton high precision press machine, model APA-60
60ton high precision press machine, model APA-60

60ton high precision press machine, model APA-60


ModelAPA-60
TypeVH
Pressing capacity60 Ton
Rated tonnage point4mm2mm
Stroke per minute (variable)35-9080-120
Stroke per minute (fixed)65
Slide stroke80mm50mm
Die height maximum310mm340mm
Slide adjustment60mm
Slide area500x360x70mm
Bolster area900x500x80mm
Shank holeΦ50mm
Main motorVS5.5x4 (KW.p)
Slide adjustingmotorized adjusting
Pneumatic presure6KG/cm2
PrecisionGB/JIS class 1
Dimension1600x1000x2800mm
Weight5.6 Ton
Die cushion capacity3.6 Ton
Die cushion capacity70mm
Die cushion area350x300mm
