High precision press machine

  • 45ton high precision press machine, model APA-45

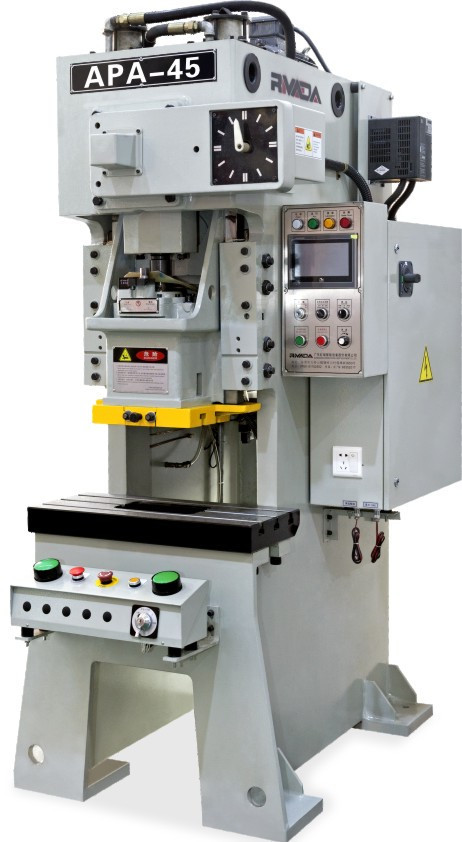

45ton high precision press machine, model APA-45

45ton high precision press machine, model APA-45


ModelAPA-45
TypeVH
Pressing capacity45 Ton
Rated tonnage point3.2mm1.6mm
Stroke per minute (variable)40-100110-150
Stroke per minute (fixed)75
Slide stroke80mm50mm
Die height maximum250mm265mm
Slide adjustment60mm
Slide area400x300x60mm
Bolster area850x440x80mm
Shank holeΦ38.1mm
Main motorVS5.5x4 (KW.p)
Slide adjustingmanual adjusting
Pneumatic presure6KG/cm2
PrecisionGB/JIS class 1
Dimension1600x950x2500mm
Weight3.8 Ton
Die cushion capacity2.3 Ton
Die cushion capacity50mm
Die cushion area300x230mm
