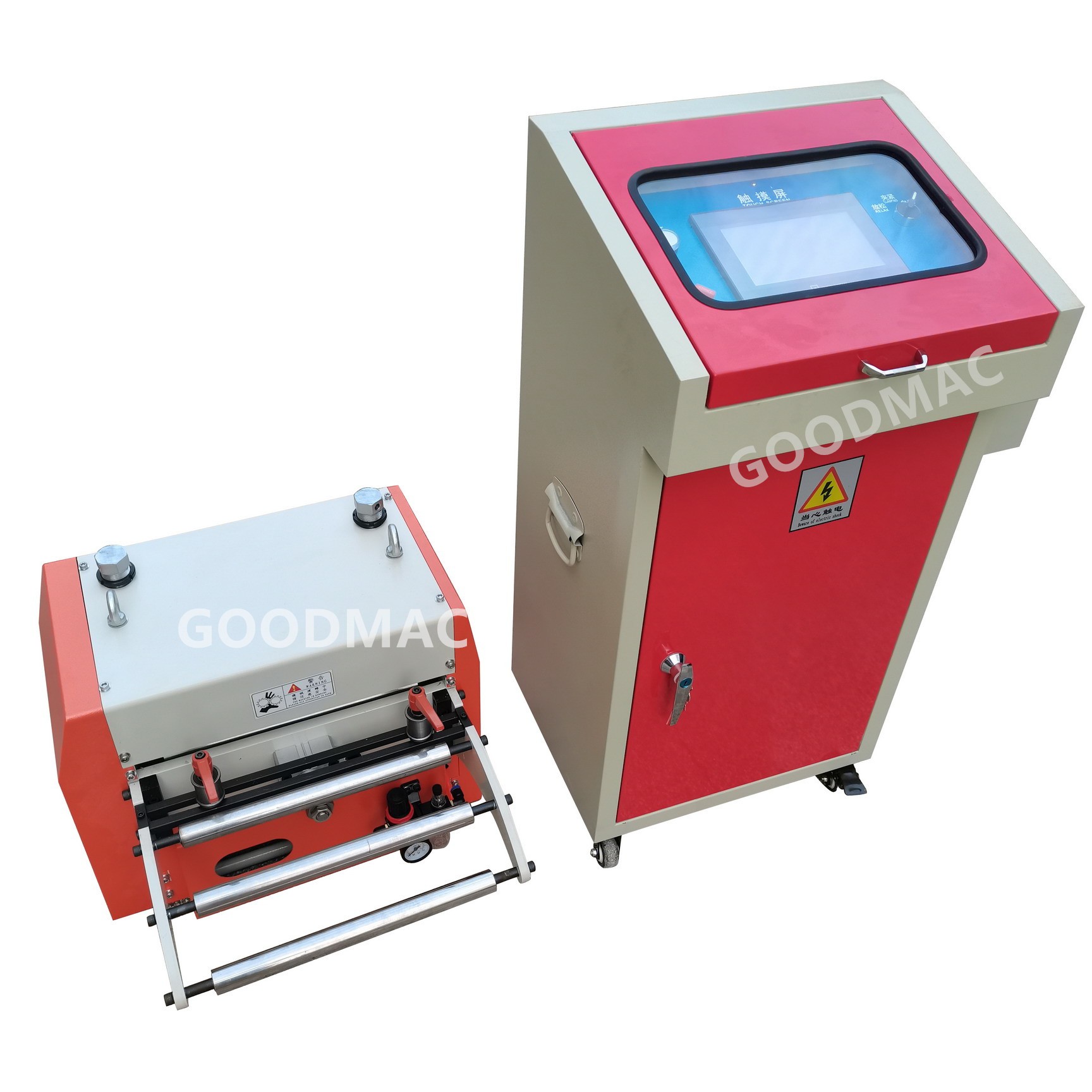

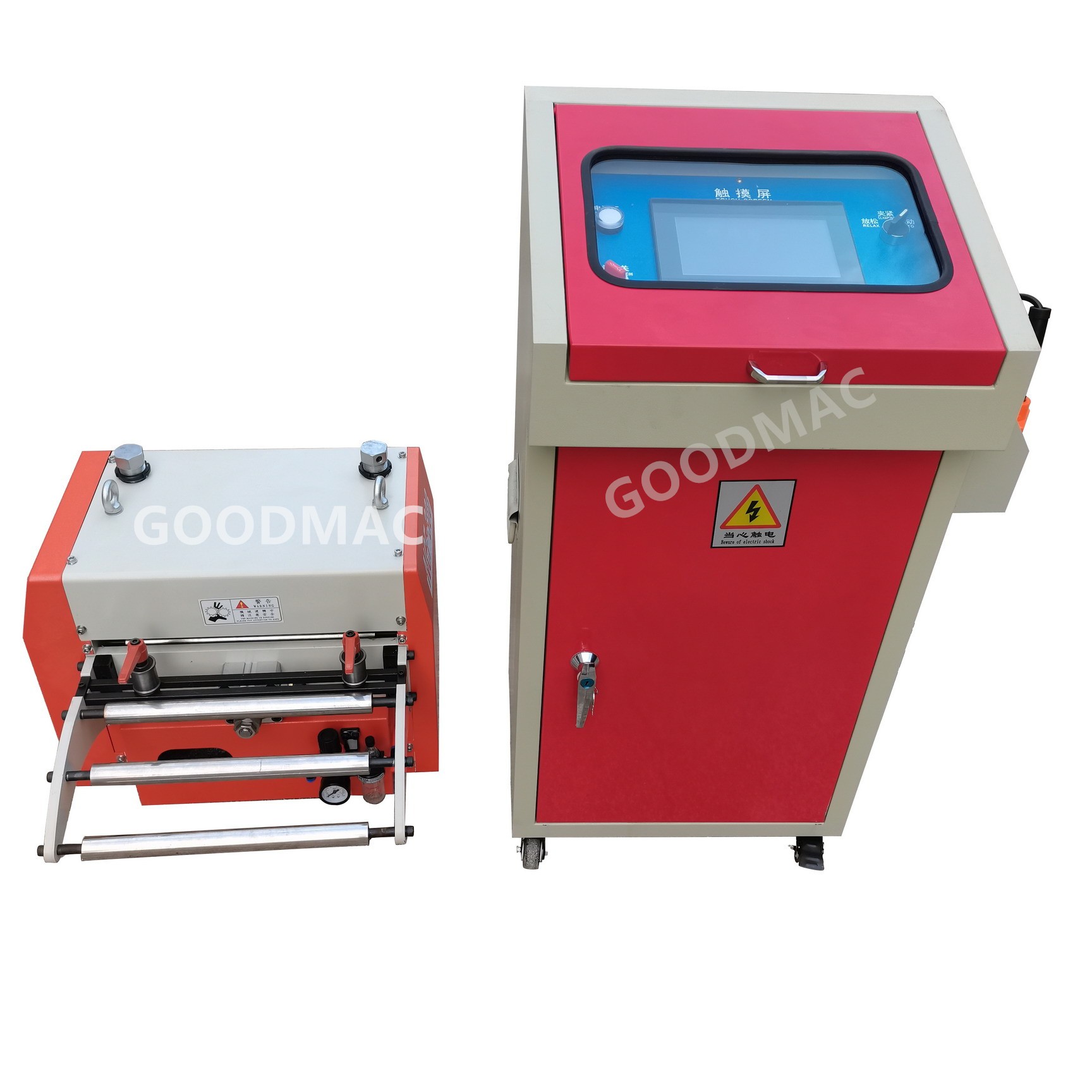

NC servo roll feeders, model NCF

  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
  • 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600 0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600

0.2-3.2mm NC servo roll feeders, model NCF-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600

  • Brand： GOODMAC
  • Model： NCF-100, NCF-200, NCF-300, NCF-400, NCF-500, NCF-600, NCF-700, NCF-800, NCF-900, NCF-1000, NCF-1300, NCF-1600
  • Function： feed metal sheet
  • Feeding power： servo motor
  • Advantage： numerical control

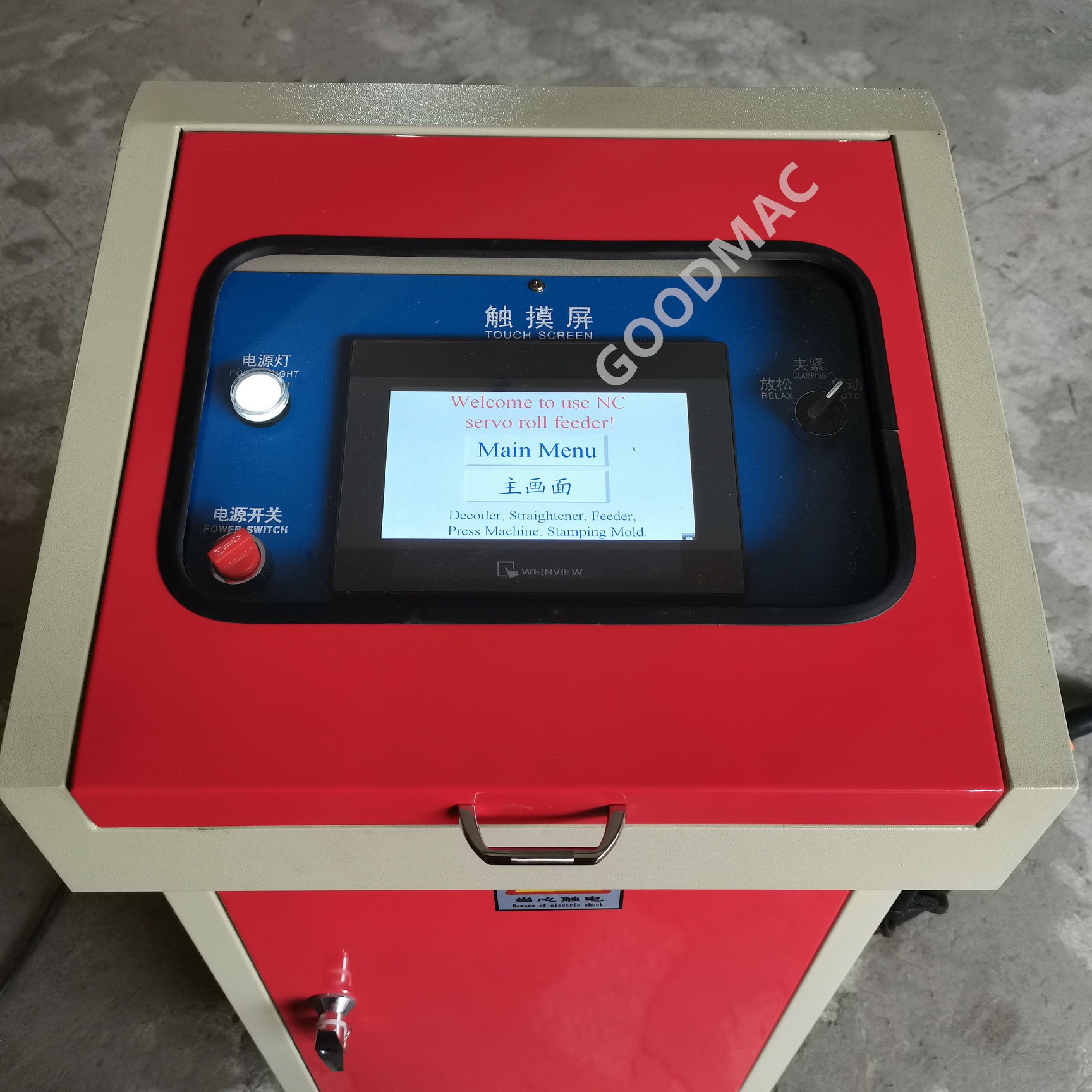

  • HMI (touch screen)： input feeding length numbers etc
  • PLC ： MITSUBISHI
  • Releasing material： pneumatic cylinder
  • Easy to use： yes
  • INQUIRY


Specification

ModelNCF-100NCF-200NCF-300NCF-400NCF-500NCF-600NCF-700NCF-800

NCF-
1000

NCF-
1300

NCF-
1600

Metal sheet width100mm200mm300mm400mm500mm600mm700mm800mm1000mm1300mm1600mm
Metal sheet thickness0.2-3.2mm
Feeding capacity,               thickness × width (mm）     0.2-1.0100200300400 500600700800100013001600
2.090180280300 350400450480550650700
3.24080100120 150180210240280320360
Servo motor power (KW)0.850.850.851.31.31.31.82.94.45.57.5
Feeding length per stroke 0.1-9999.99mm
Feeding length accuracy±0.1mm
Feeding speed0-20m/min
Feeding roller quantity2 pieces
Releasing method for rollerby pneumatic cylinder
Servo motor and driveYASKAWA (JAPAN brand)
PLCMITSUBISHI (JAPAN brand)
Human machine interface (HMI)WEINVIEW (Taiwan brand)
Other main componentsother brands
Electrical power380V, 3 Phase, 50HZ (or else)
