YANGLI press machine

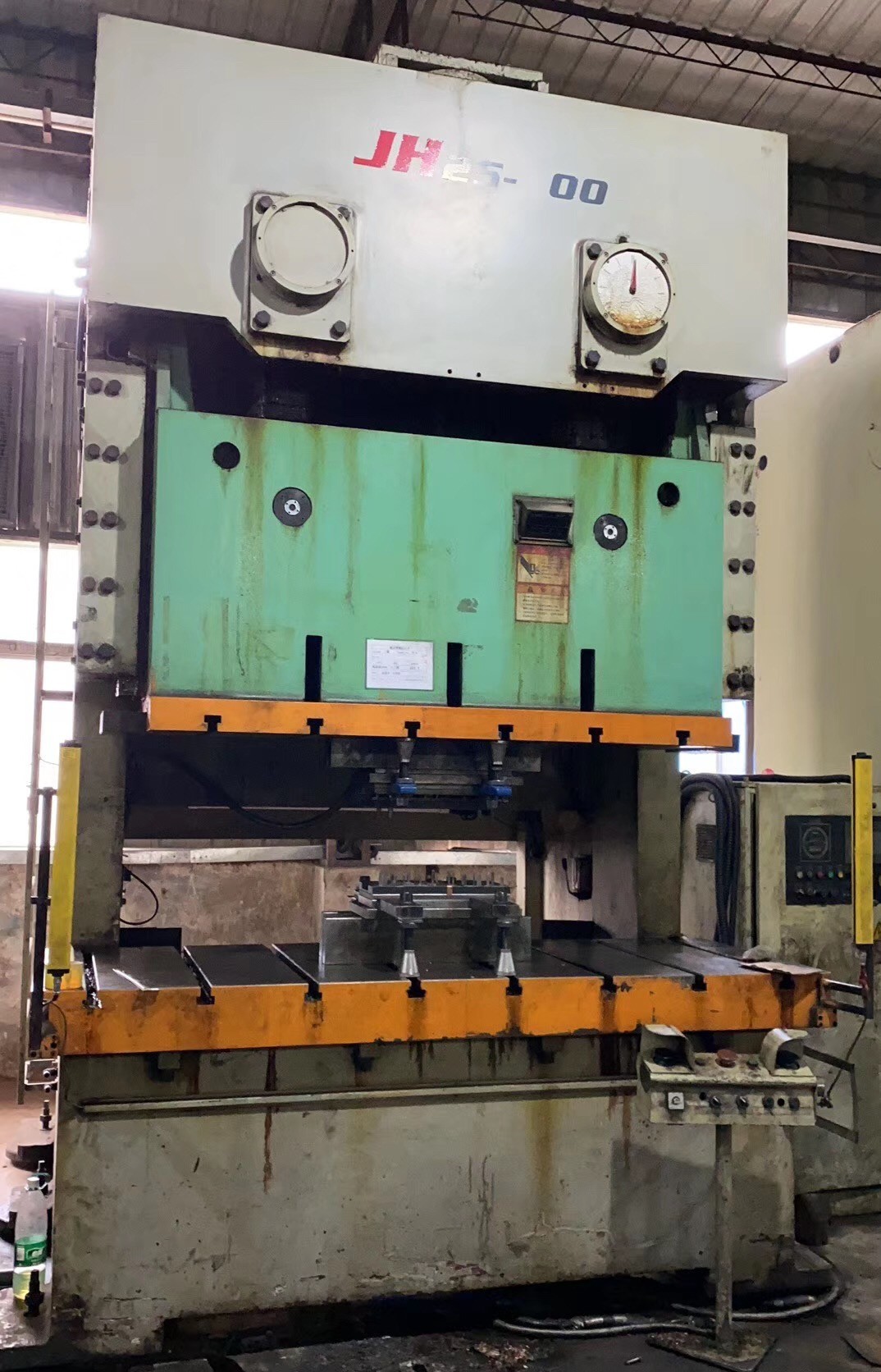

  • YANGLI 200ton C frame two crank press machine, model JH25-200
YANGLI 200ton C frame two crank press machine, model JH25-200

YANGLI 200ton C frame two crank press machine, model JH25-200


YANGLI 200ton C frame two crank press machine, model JH25-200
Pressing capacity: 200ton
Nominal stroke: 7mm
Stroke: 250mm
Stroke speed: 25-45 SPM
Die height: 500mm
Slide adjustment: 110mm
Distance between slide center and frame: 430mm
Bolster area: 2420*840mm
Bolster thickness: 170mm
Slide area: 1850*650mm
Shank hole (diameter*depth): 3-60*85mm
Distance between columns: 1900mm
Main motor power: 22KW
Bolster height: 1000mm
Outline dimension: 2660*2560*3980mm
Net weight: 29500KG
