YANGLI press machine

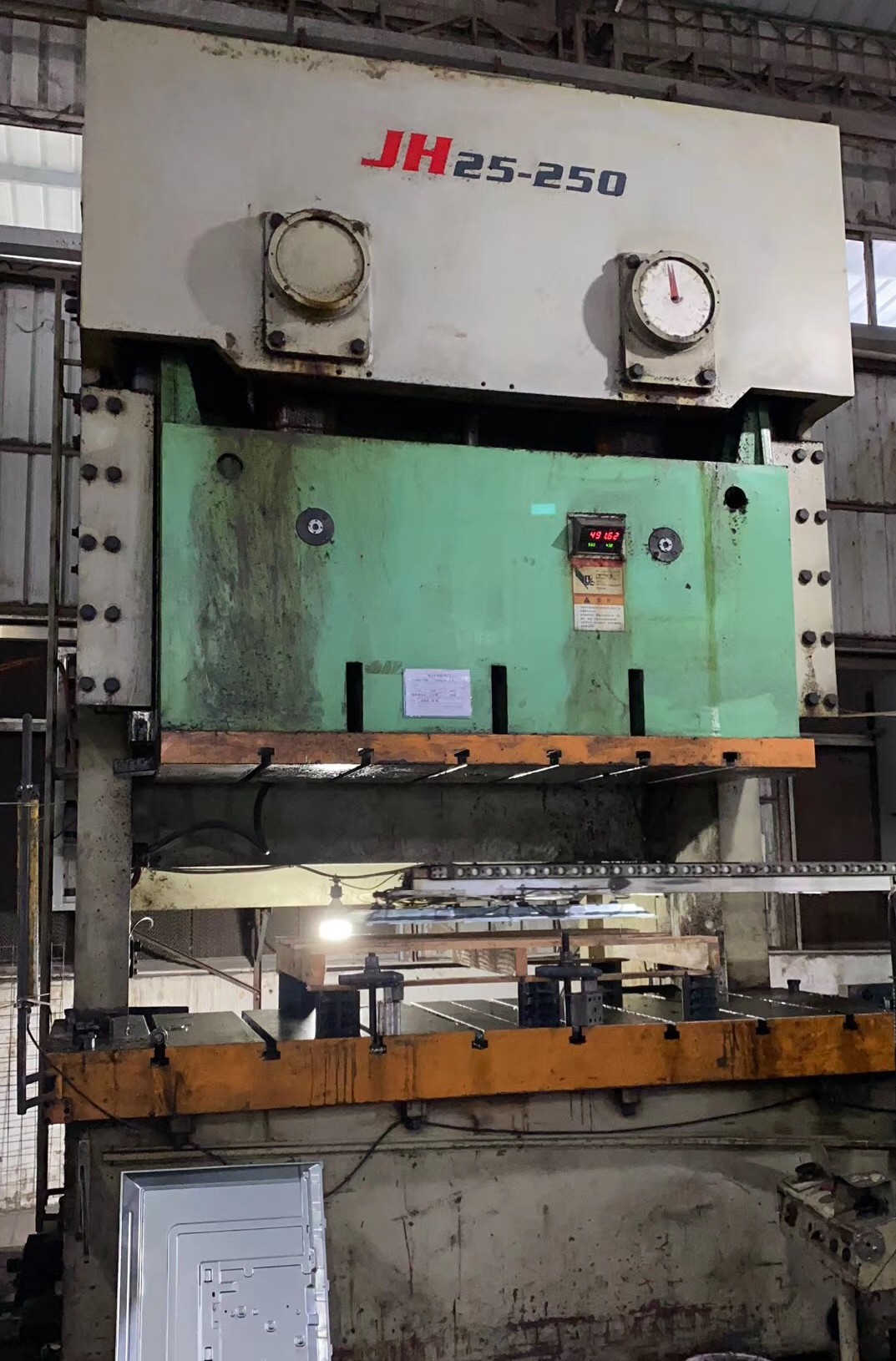

  • YANGLI 250ton C frame two crank press machine, model JH25-250
YANGLI 250ton C frame two crank press machine, model JH25-250

YANGLI 250ton C frame two crank press machine, model JH25-250


YANGLI 250ton C frame two crank press machine, model JH25-250
Pressing capacity: 250ton
Nominal stroke: 7mm
Stroke: 280mm
Stroke speed: 20-35 SPM
Die height: 550mm
Slide adjustment: 120mm
Distance between slide center and frame: 470mm
Bolster area: 2700*920mm
Bolster thickness: 180mm
Slide area: 2100*700mm
Shank hole(diameter*depth): 3-60*95mm
Distance between columns: 2220mm
Main motor power: 30KW
Bolster height: 1100mm
Outline dimension: 2880*2860*4320mm
Net weight: 39000KG
