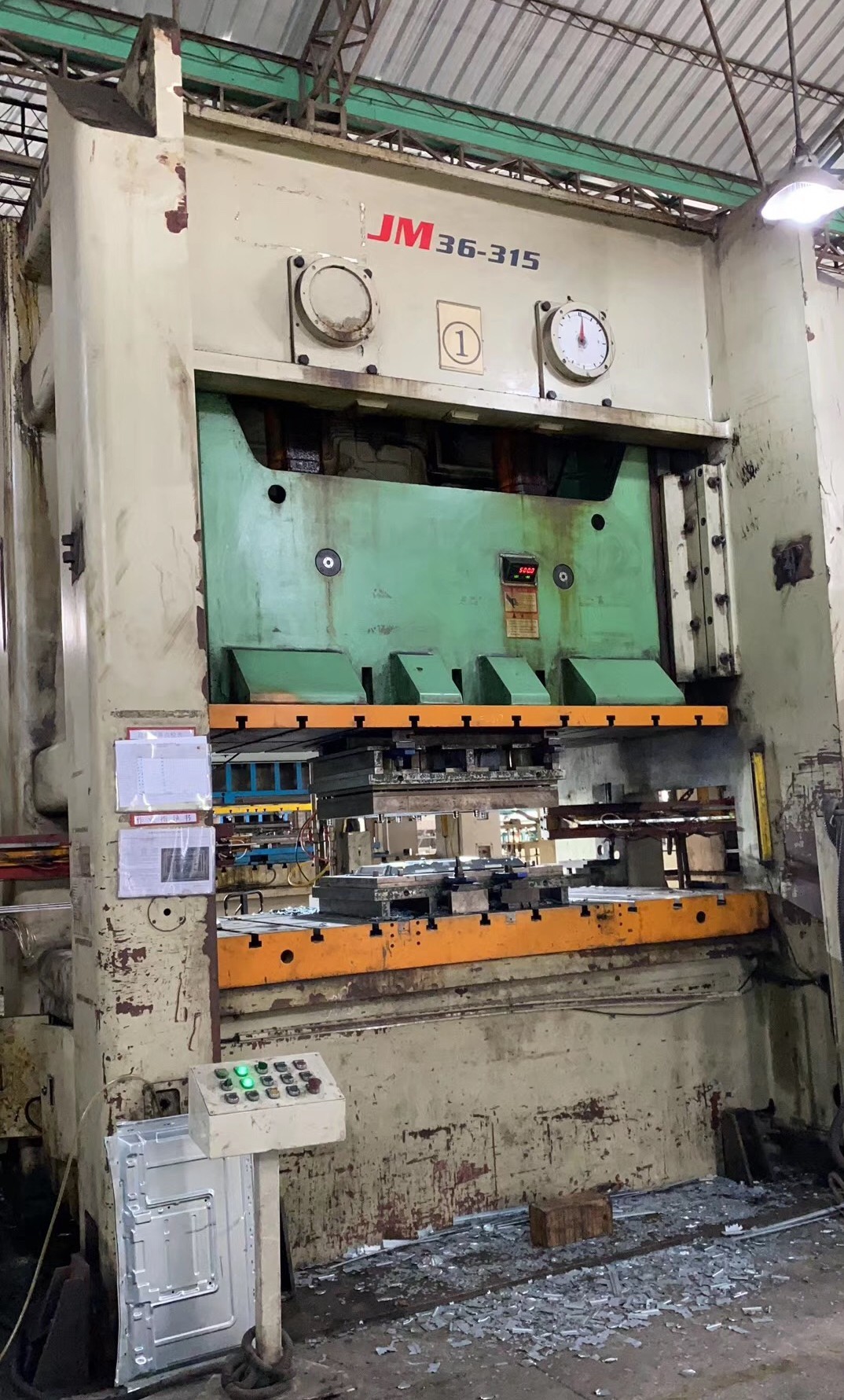

  • YANGLI 315ton H frame two crank press machine, model JM36-315
YANGLI 315ton H frame two crank press machine, model JM36-315

YANGLI 315ton H frame two crank press machine, model JM36-315


YANGLI 315ton H frame two crank press machine, model JM36-315
Pressing capacity: 315ton
Nominal stroke: 8mm
Stroke: 280mm
Stroke speed: 20-30 SPM
Die height: 600mm
Slide adjustment: 120mm
Bolster area(F
·B×L·R): 1000×2500mm
Bolster thickness: 190mm
Slide area(F
·B×L·R): 900×2200mm
Shank hole(diameter×depth): 3-70×95mm
Distance between columns: 2600mm
Side opening(F
·B×H): 990×650mm
Bolster height: 1120mm
Main motor power: 37KW
Outline dimension(F
·B×L·R×H): 3420×3500*4665mm
Net weight: 47000KG
