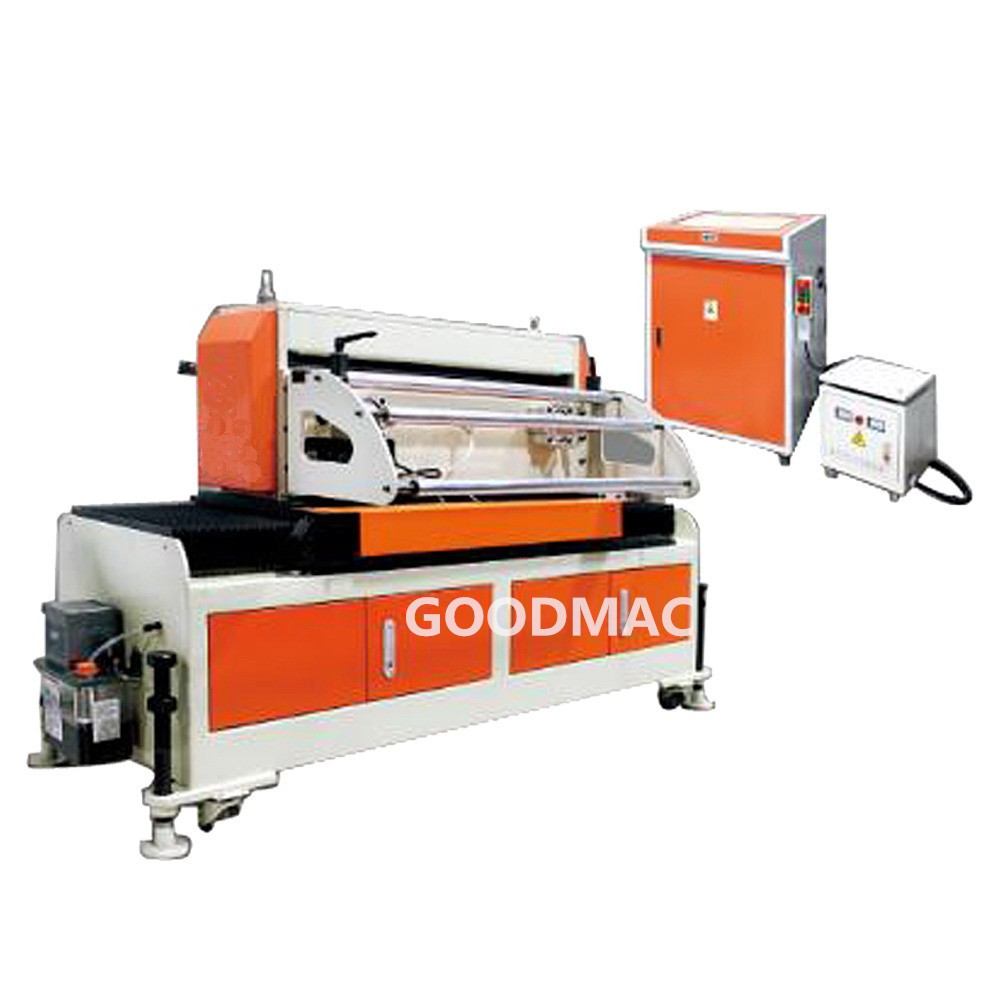

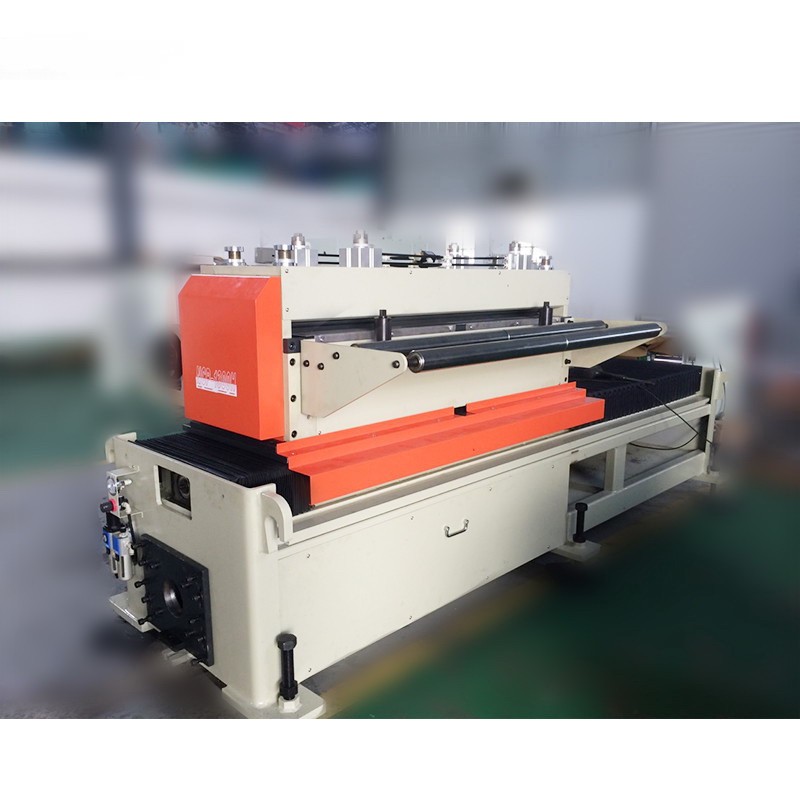

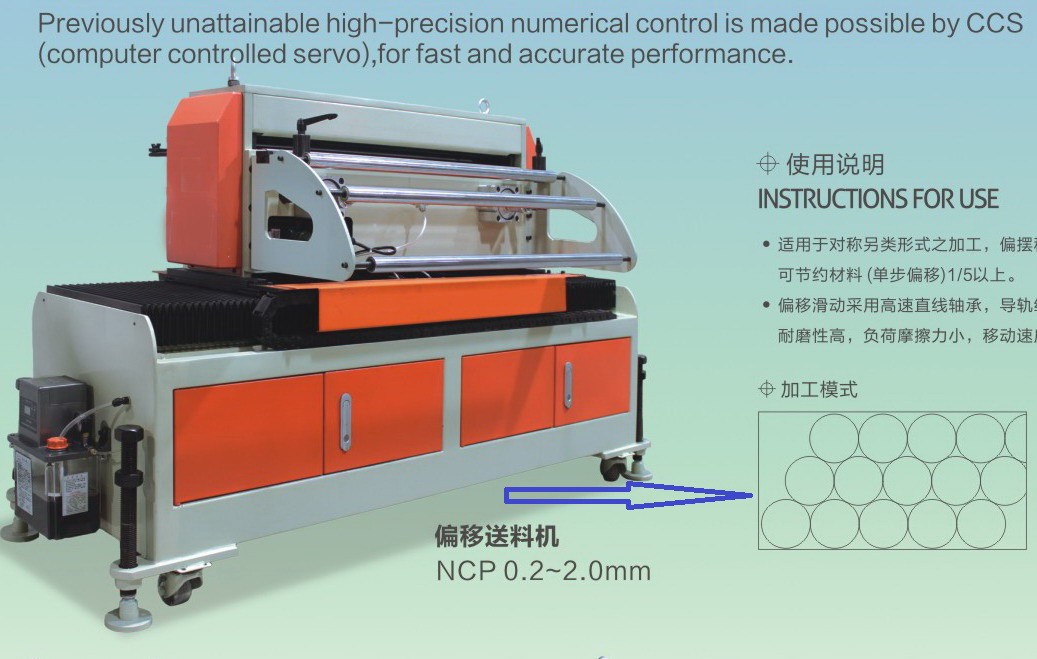

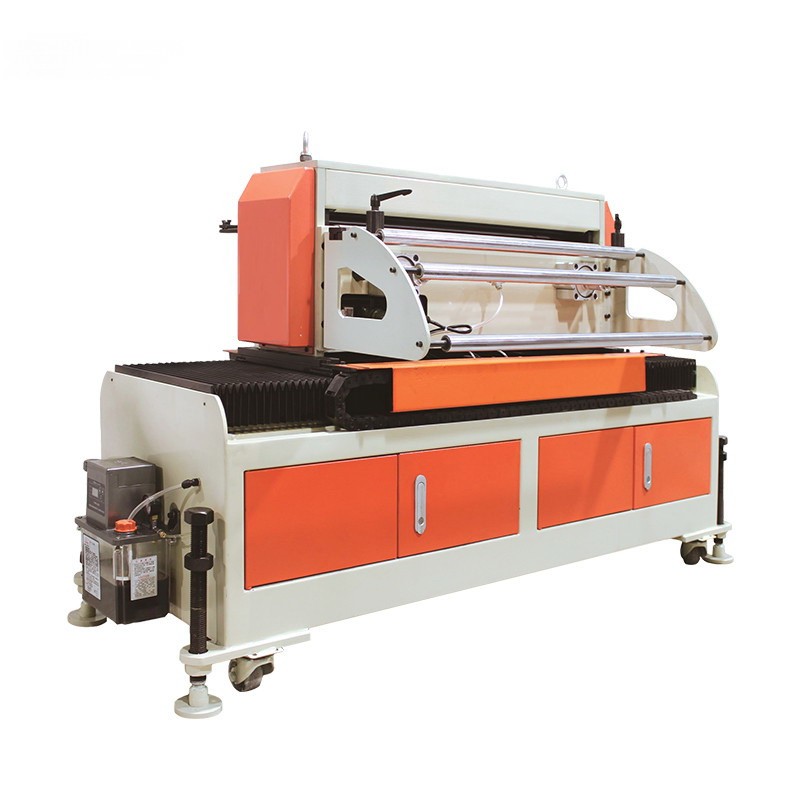

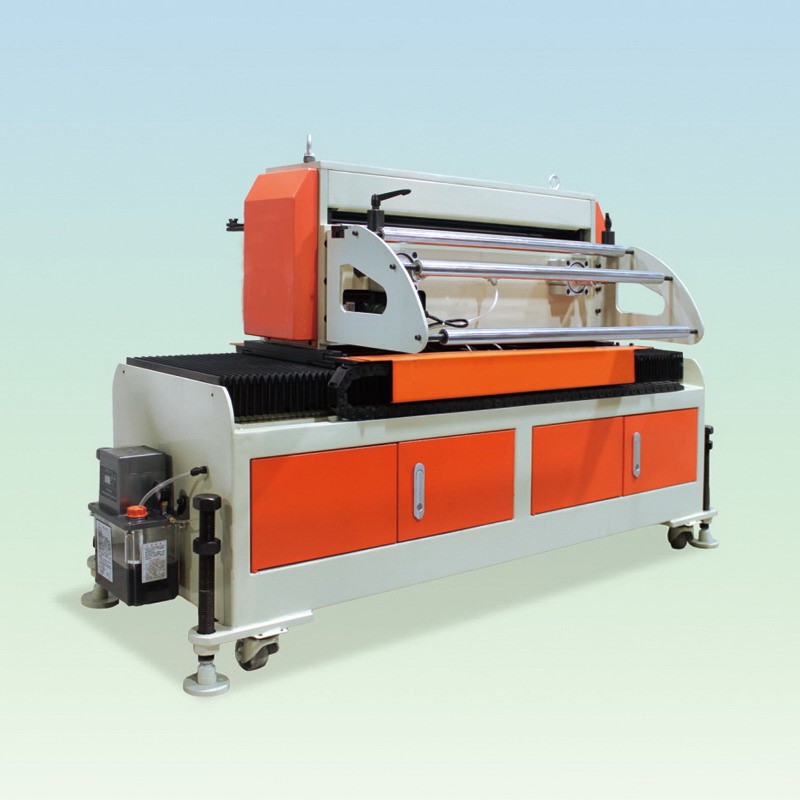

0.2-2.0mm Zigzag NC servo roll feeders, model NCP-200, 400, 600, 800, 1000, 1300, 1500


Specification

ModelNCP-200NCP-400NCP-600NCP-800NCP-1000NCP-1300NCP-1500
Metal sheet width200mm400mm 600mm800mm1000mm1300mm1500mm
Zigzag feeding distance200mm400mm 600mm800mm1000mm1300mm1500mm
Metal sheet thickness0.2-2.0mm
Feeding speed maximumfront   feeding 20m/min, zigzag feeding 30m/min
Feeding length per stroke 0.1-9999.99mm
Feeding length accuracy±0.1mm
Feeding roller2 pieces
Roller releasing methodby pneumatic cylinder
Front feedingYASKAWA servo motor (JAPAN brand)
Zigzag feedingYASKAWA servo motor (JAPAN brand)
PLCMITSUBISHI (JAPAN brand)
Human machine interface (HMI)WEINVIEW (Taiwan brand)
Other main componentsother brands
Electrical power380V, 3 Phase, 50HZ (or else)
