I. Feature

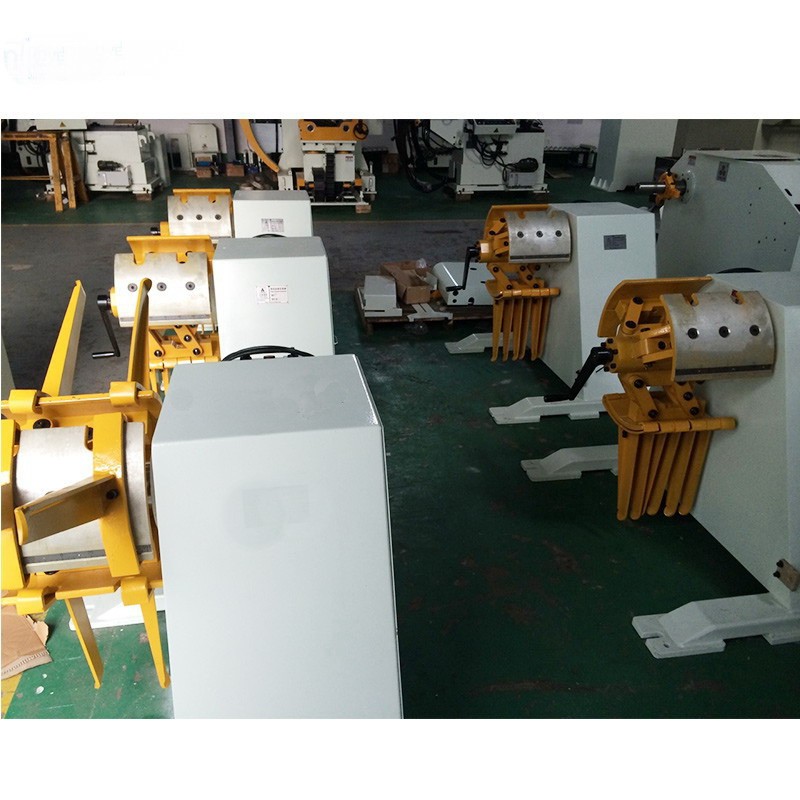

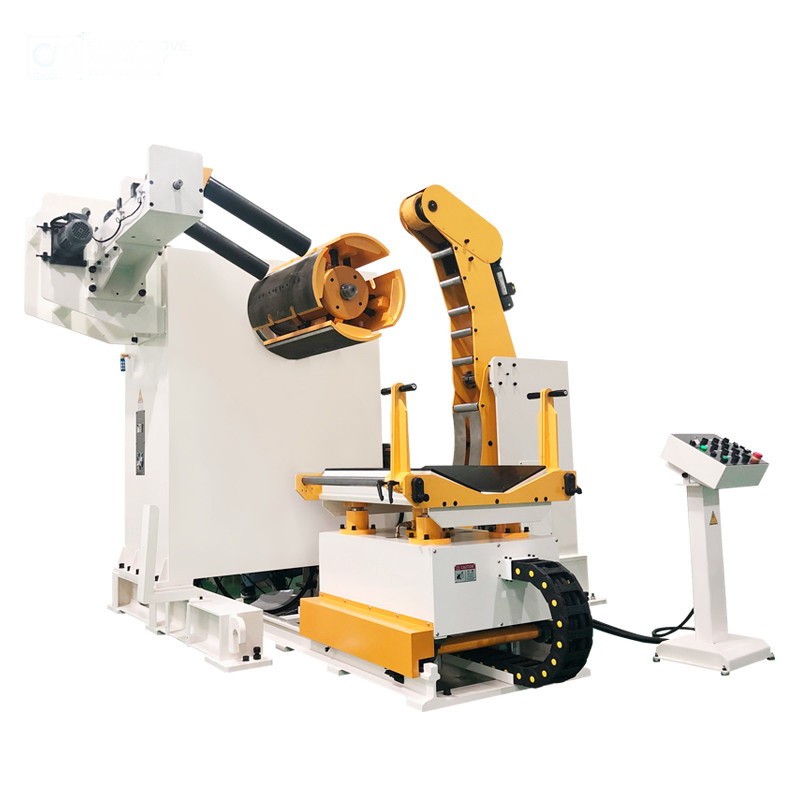

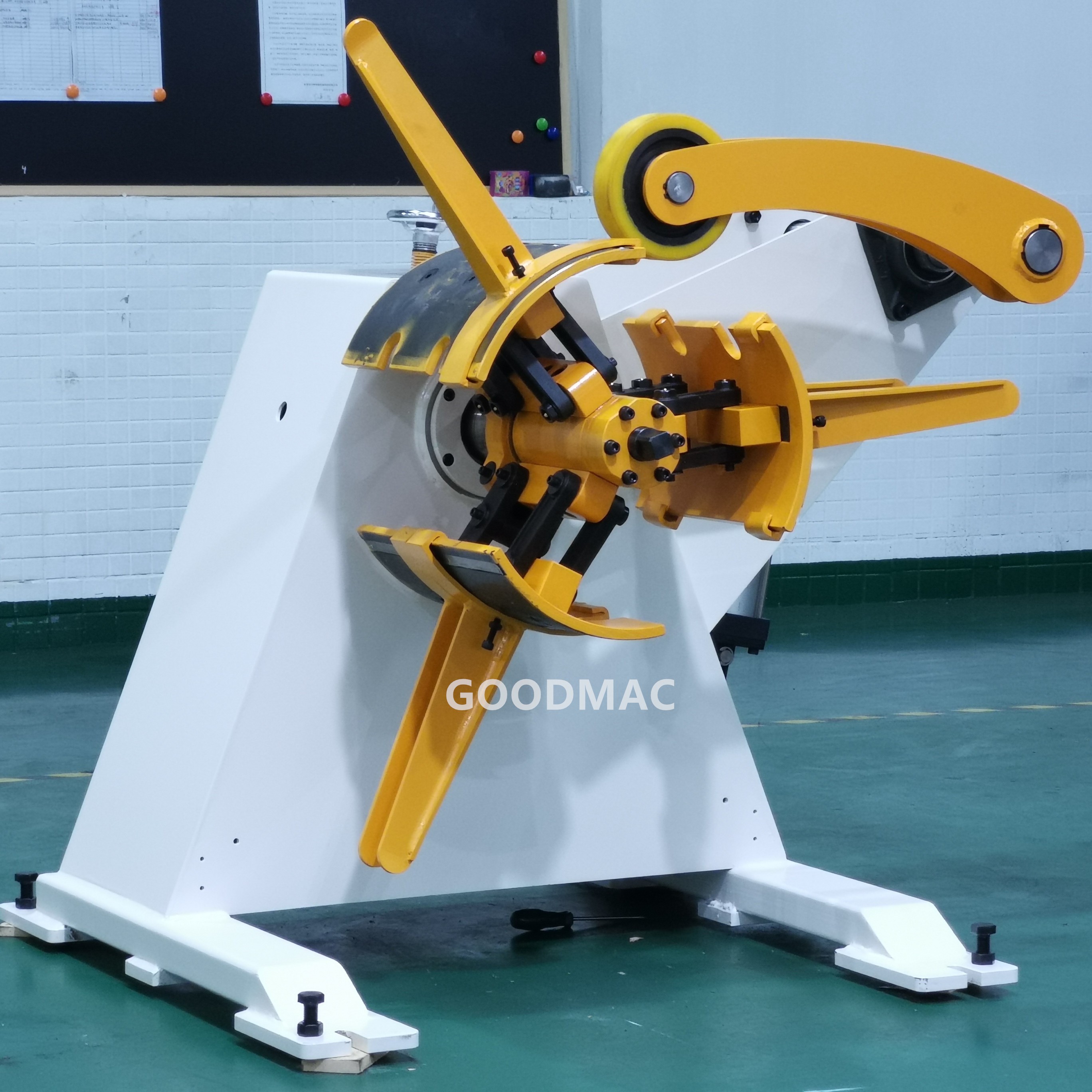

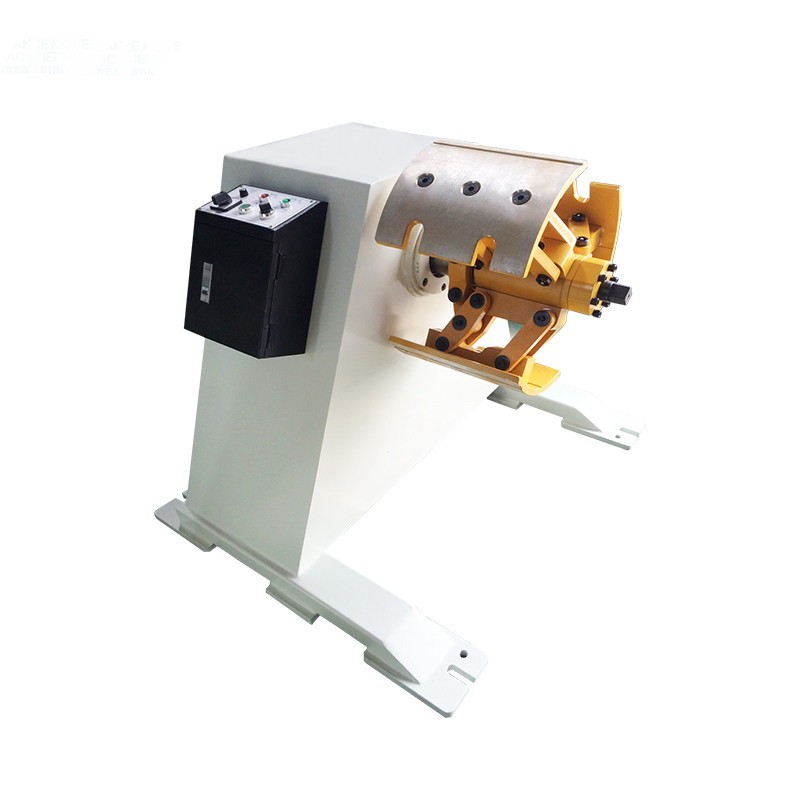

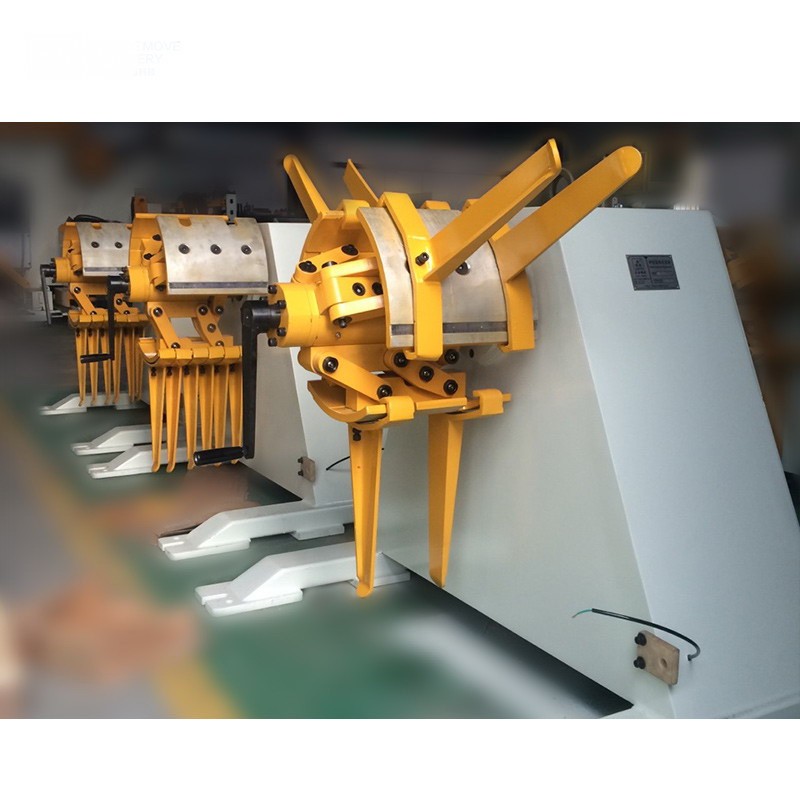

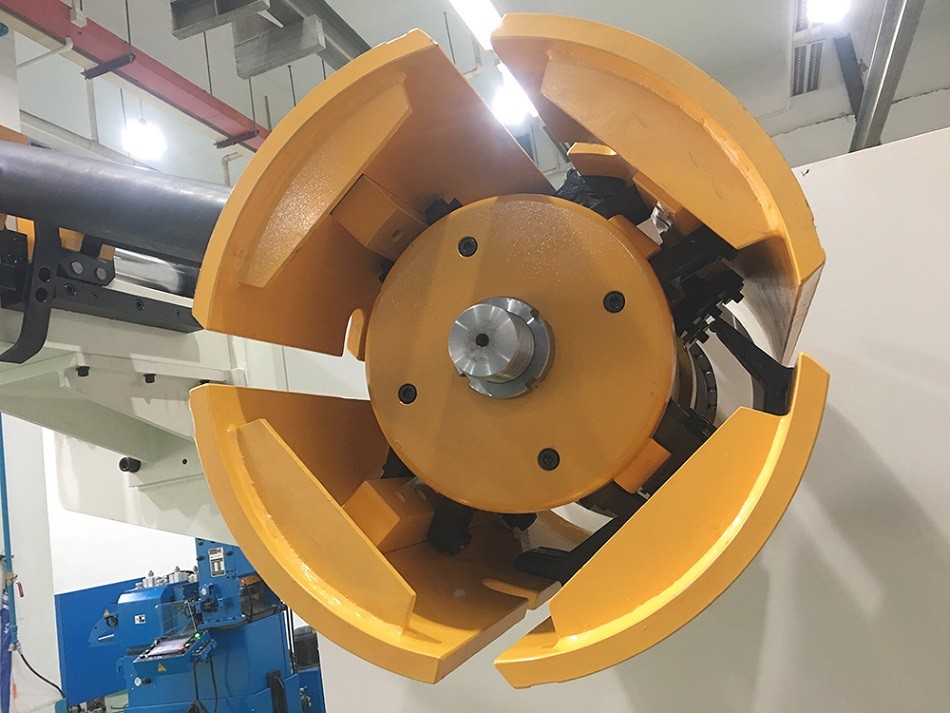

1. This model MT series decoiler can decoil sheet metal strip coil automatically, by motorized power.
Decoiler can decoil coil for press machine, shearing machine, roll forming machine, slitting line, cut to length line, etc.
2. It can be customized according to your special application requirement. Welcome to contact us for more details.
II. Specification
Model | MT-200F | MT-300F | MT-400F | MT-500F | MT-600F | MT-700F | MT-800F | MT-1000F | MT-1300F |
Metal sheet coil width | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm | 1300mm |
Metal sheet thickness | 0.1-3.2mm | ||||||||
Coil inside diameter | 450-530mm | ||||||||
Coil outside diameter | 1200mm | ||||||||
Metal sheet coil weight | 500KG | 1000KG | 2000KG | 2000KG | 3000KG | 3000KG | 4000KG | 5000KG | 7000KG |

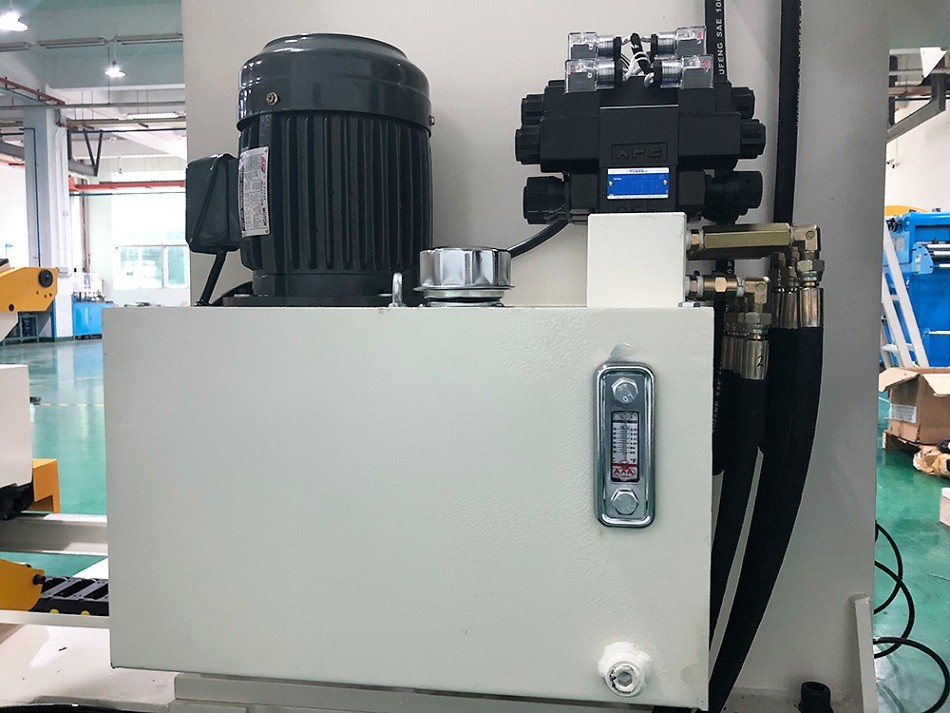

Mandrel expanding | manual (hydraulic expanding is optional.) | ||||||||
Pressing device | by pneumatic cylinder | ||||||||
Decoiling speed | 0-16m/min | ||||||||
Inverter for adjusting speed | standard | ||||||||
Electrical power | 380V, 3 phase, 50HZ |
