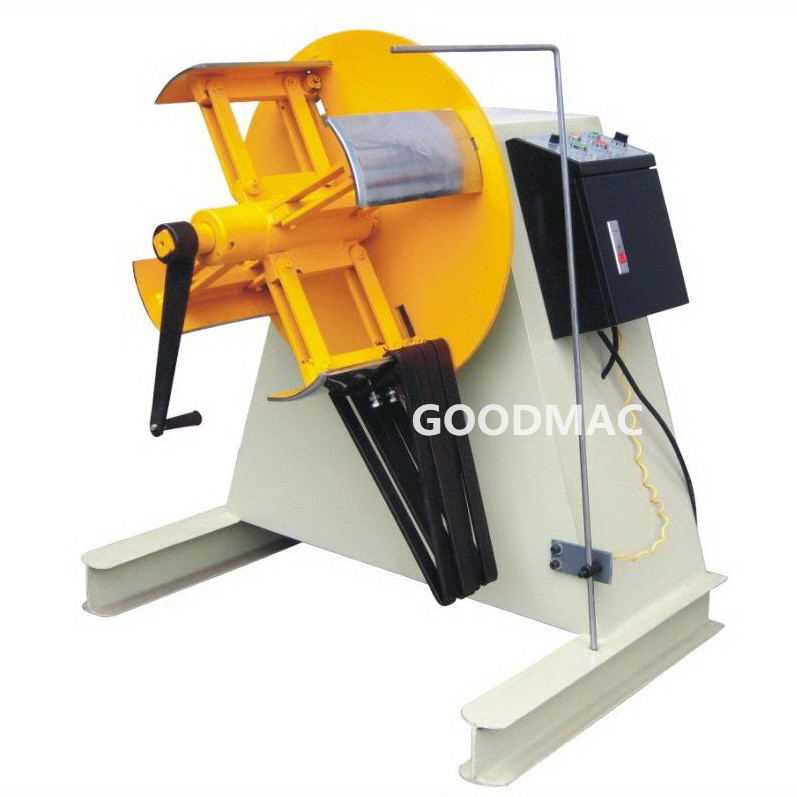

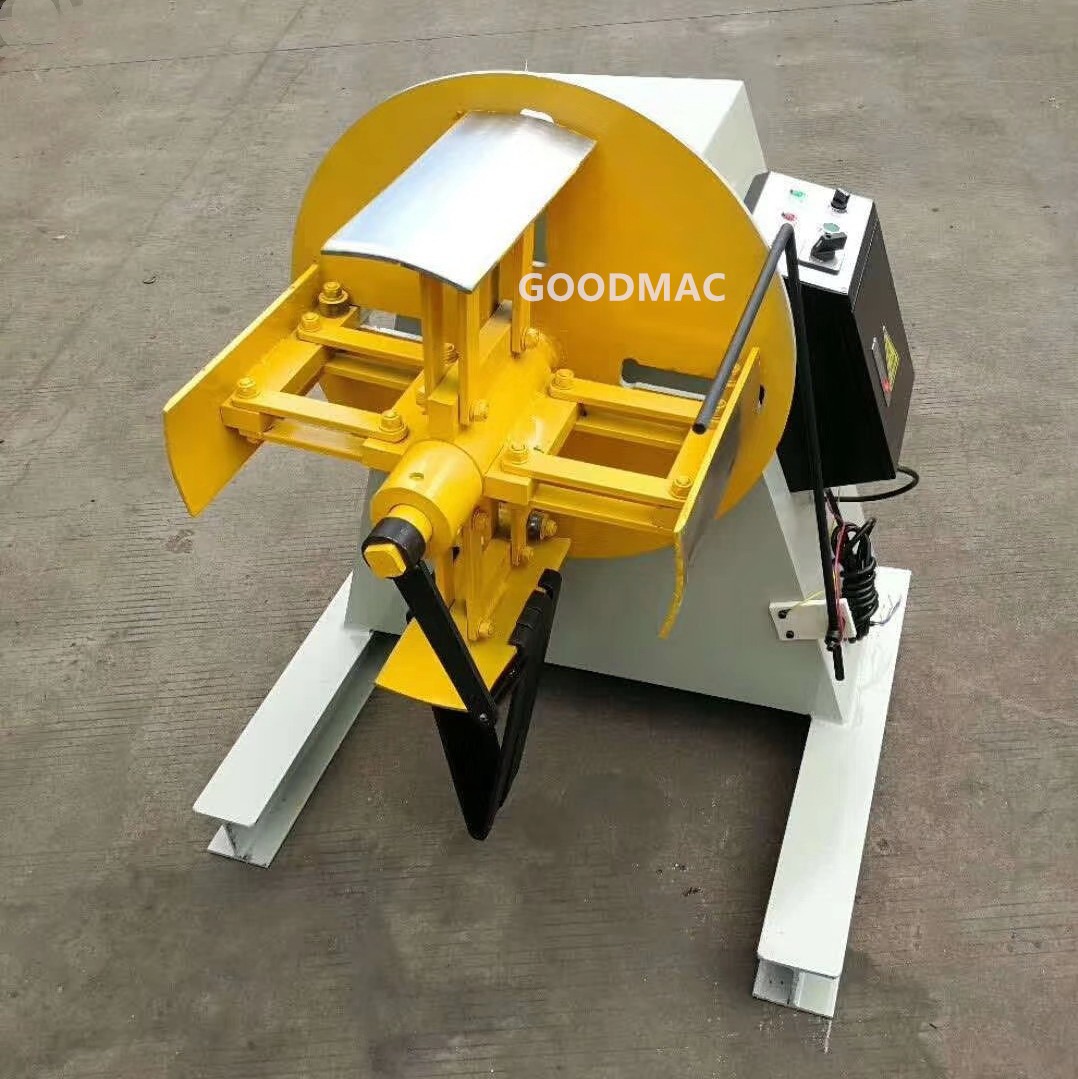

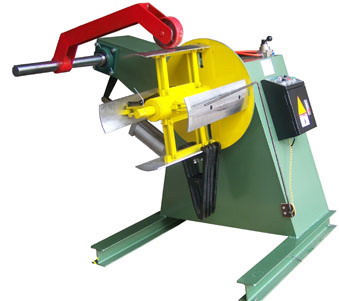

Motorized decoilers, model MT
Motorized decoilers, model MT-200, 300, 400, 500, 600, 700, 800, 1000, 1300, 1600
- Brand： GOODMAC
- Model： MT-200, MT-300, MT-400, MT-500, MT-600, MT-700, MT-800
- Function： decoil sheet metal strip coil
- Advantage： for small or big coil
- Coil car for loading coil： optional
- Decoiler mandrel expanding method： manual rod or automatic hydraulic cylinder
- Pneumatic pressing device： optional
- Drive power： good motor
- Decoiling speed： 16m/min
- Variable frequency speed control system： optional
- Loop control sensing method： touch sensor rod
- INQUIRY
I. Features
1. This model MT series decoiler can decoil sheet metal strip coil automatically, by motorized power.
Decoiler can decoil coil for press machine, shearing machine, roll forming machine, slitting line, cut to length line, etc.
2. It can be customized according to your special application requirement. Welcome to contact us for more details.
II. Specification
| Model | MT-200 | MT-300 | MT-400 | MT-500 | MT-600 | MT-700 | MT-800 | MT-1000 | MT-1300 | MT-1600 |
| Metal sheet coil width | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm | 1300mm | 1600mm |
| Metal sheet thickness | 2mm | |||||||||
| Coil inside diameter | 450-530mm | |||||||||
| Coil outside diameter | 1200mm | |||||||||
| Coil weight | 500KGS | 800KGS | 1200KGS | 1500KGS | 2000KGS | 3000KGS | 3000KGS | 5000KGS | 5000KGS | 5000KGS |
| Mandrel expanding | manual (hydraulic expanding is optional.) | |||||||||
| Decoiling speed | 15m/min | |||||||||
| Inverter for adjusting speed | optional | |||||||||
| Motor power | 0.5HP | 1HP | 2HP | 3HP | 5HP | 7.5HP | 10HP | |||
| Net weight | 550KGS | 750KGS | 800KGS | 900KGS | 950KGS | 1000KGS | 1500KGS | 2000KGS | 3000KGS | 4000KGS |
| Machine size (m) | 1.0×0.8×1.1 | 1.1×1.0×1.2 | 1.2×1.1×1.3 | 1.4×1.2×1.3 | 1.5×1.2×1.3 | 1.7×1.3×1.4 | 1.8×1.4×1.4 | 2.0×1.5×1.6 | 2.5×1.8×1.8 | 3.0×2.0×2.0 |
| Electrical power | 380V, 3 phase, 50HZ | |||||||||
| Arm shape pressing device | optional | |||||||||
| Coil car | optional | |||||||||
