Air pneumatic feeders, model AF
Small air pneumatic feeders, model AF-1C, 2C, 3C, 4C, 5C, 6C, 7C ( for width maximum 250mm)
- Brand： GOODMAC
- Model： AF-1C, AF-2C, AF-3C, AF-4C, AF-5C, AF-6C, AF-7C
- Power type： pneumatic
- Spare parts： provided
- Feeding speed： 12m/min
- Price： cheap
- Payment： T/T
- Packing： carton or wooden box
- Loading port： Shenzhen, or else
- INQUIRY
AIR FEEDER
Features

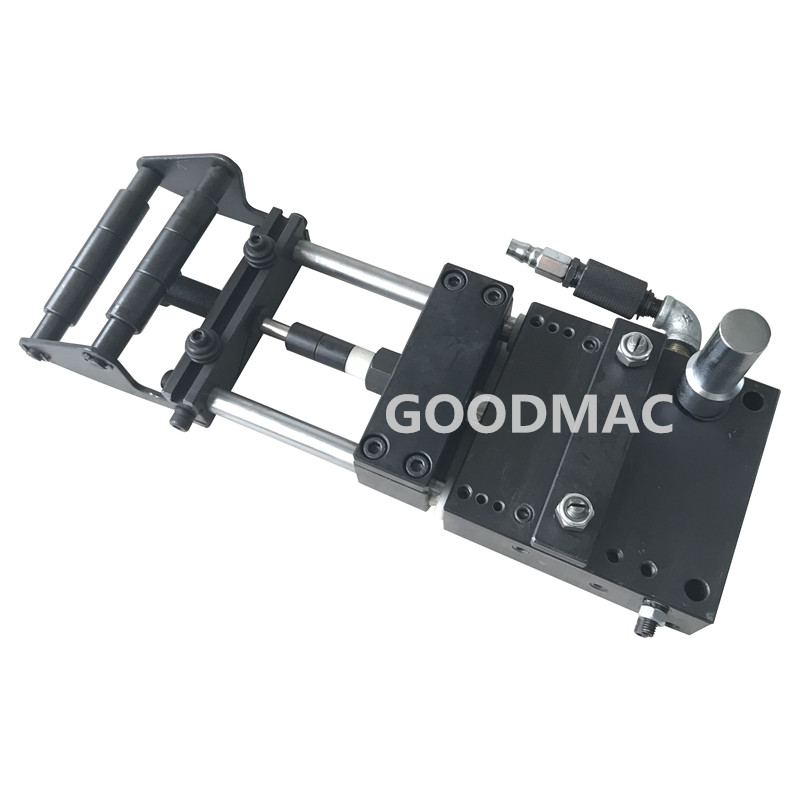

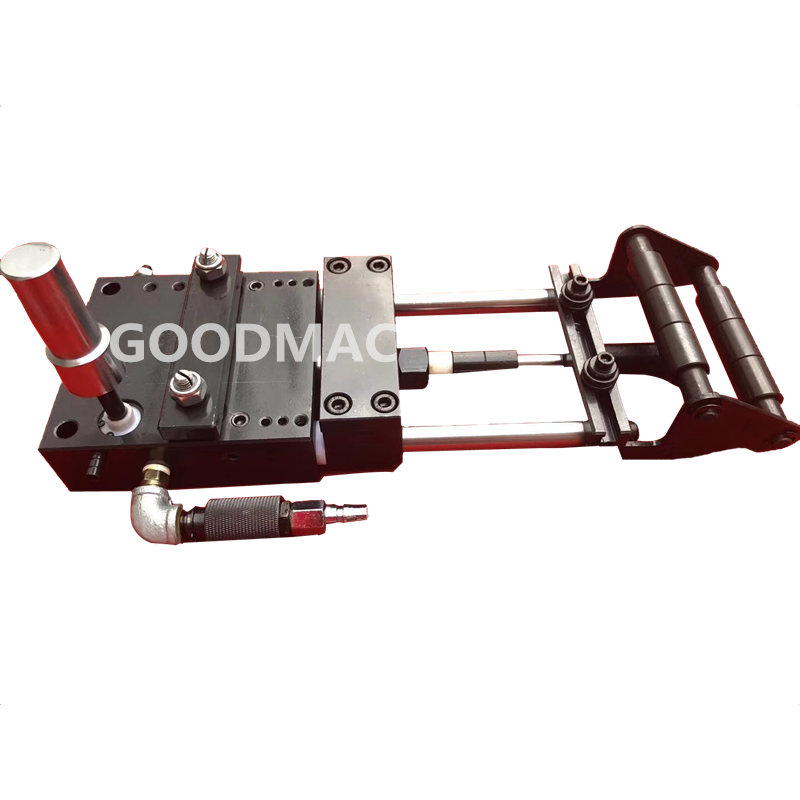

1. Model AF is GOODMAC air pneumatic feeder, as air feeder.
2. Air feeder is the most economic and efficient feeder machine among all kinds of
feeders, as coil sheet metal feeding device for press machine.
3. Solenoid valve for releasing and solenoid valve for feeding are optional.

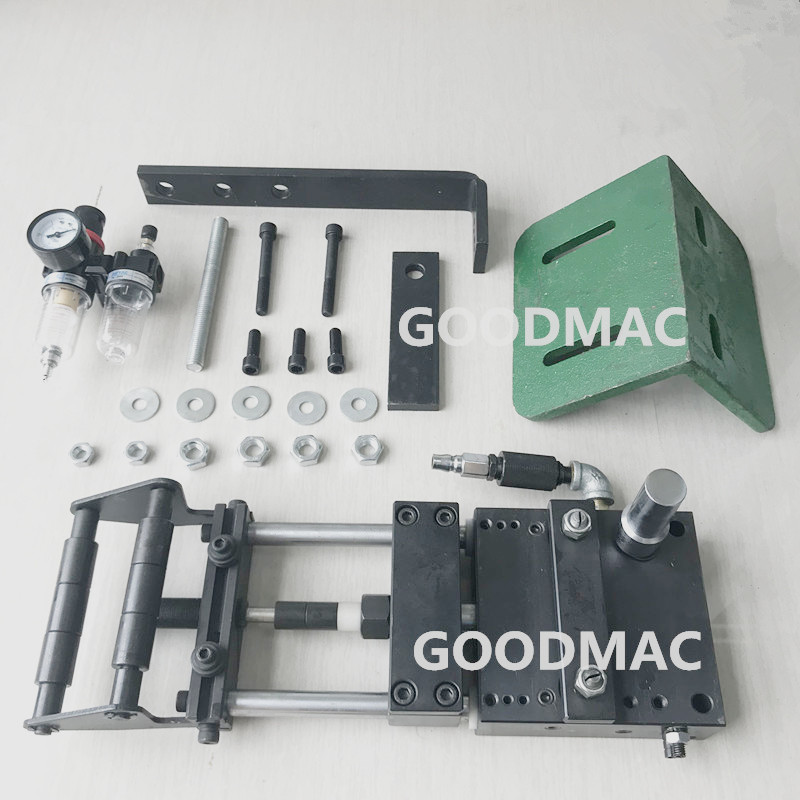

4. All standard accessories are provided for you.

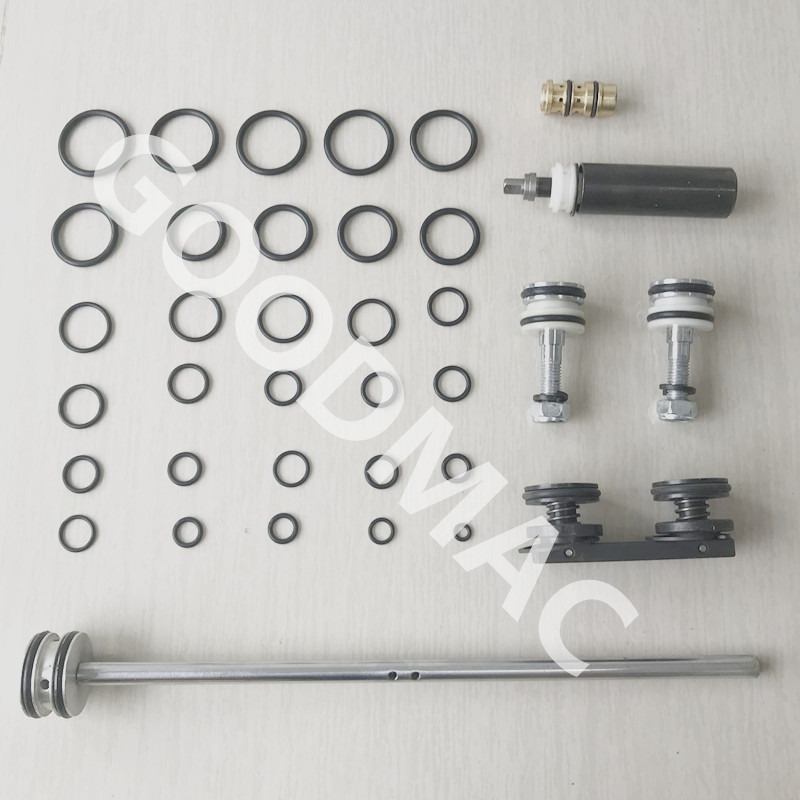

5. Optional spare parts are provided availably for replacement.
Specification
| Model | AF-1C | AF-2C | AF-3C | AF-4C | AF-5C | AF-6C | AF-7C |
| Metal sheet width (mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 |
| Metal sheet thickness (mm) | 0.5 | 0.8 | 1.2 | 1.5 | 2 | 2 | 2.5 |
| Feeding length per stroke (mm) | 50 | 80 | 80 | 130 | 150 | 200 | 250 |
| Feeding speed maximum | 12m/min | ||||||
| Feeding trokes per minute | 200 | 160 | 150 | 93 | 80 | 60 | 48 |
| Pneumatic pressure | 4.5KG/cm2 | ||||||
| Air consumption (L/min) | 26.5 | 38.5 | 47 | 58.6 | 100.5 | 108.5 | 152 |
| Net weight (KGS) | 8.8 | 9.6 | 12.8 | 19.6 | 38.4 | 52.4 | 80 |
