Air pneumatic feeders, model AF

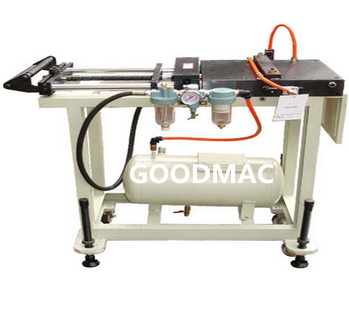

Big air pneumatic feeders, model AF-8C, 9C, 10C, 11C, 12C, 14C (for material width more than 300mm)
- Brand： GOODMAC
- Model： AF-8C, AF-9C, AF-10C, AF-11C, AF-12C, AF-14C
- Power type： pneumatic
- Electromagnetic valve ： included
- Pneumatic cylinder： included
- Spare parts： provided
- Feeding speed： 12m/min
- Supporting table： included
- Price： cheap
- Payment： T/T
- Packing： wooden box
- Loading port： Shenzhen, or else
- INQUIRY
I. Features
1. Model AF is GOODMAC air pneumatic feeder, as air feeder.
2. Air feeder is the most economic and efficient feeder machine among all kinds of feeders,
as coil sheet metal feeding device for press machine.
3. All standard accessories are provided for you.
4. Optional spare parts are provided availably for replacement.
II. Specification
| Model | AF-8C | AF-9C | AF-10C | AF-11C | AF-12C | AF-14C |
| Metal sheet width (mm) | 300 | 350 | 400 | 450 | 500 | 600 |
| Metal sheet thickness (mm) | 2.5 | 3 | 3 | 3 | 3 | 3.5 |
| Feeding length per stroke (mm) | 300 | 350 | 400 | 450 | 500 | 600 |
| Feeding speed maximum | 12m/min | |||||
| Feeding trokes per minute | 40 | 35 | 30 | 25 | 23 | 20 |
| Pneumatic pressure | 4.5KG/cm2 | |||||
| Air consumption (L/min) | 162.5 | 174.2 | 182.5 | 182.5 | 182.5 | 182.5 |
| Net weight (KGS) | 95 | 156 | 178 | 200 | 240 | 290 |
