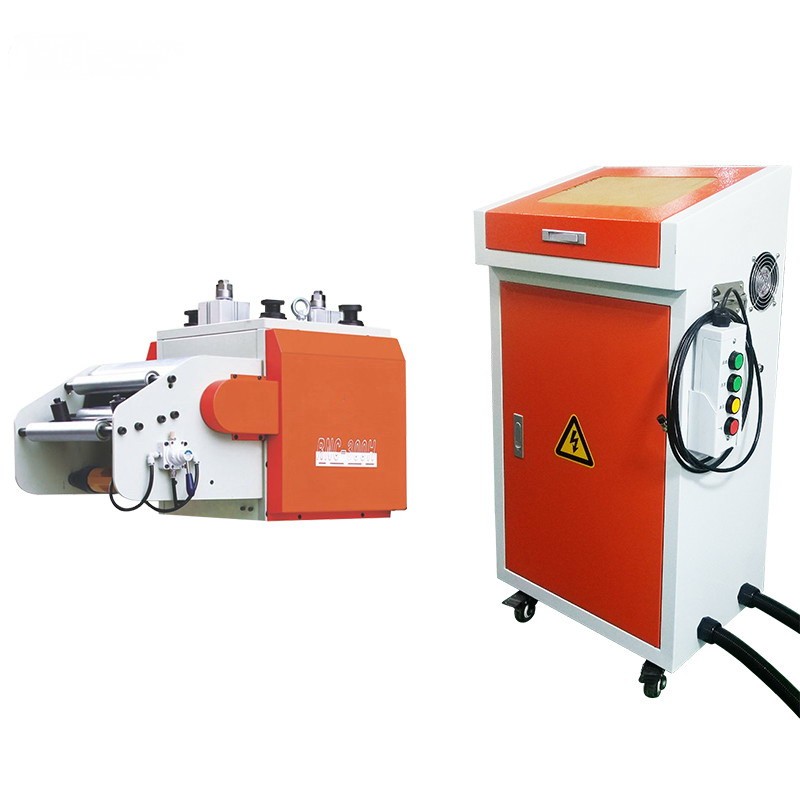

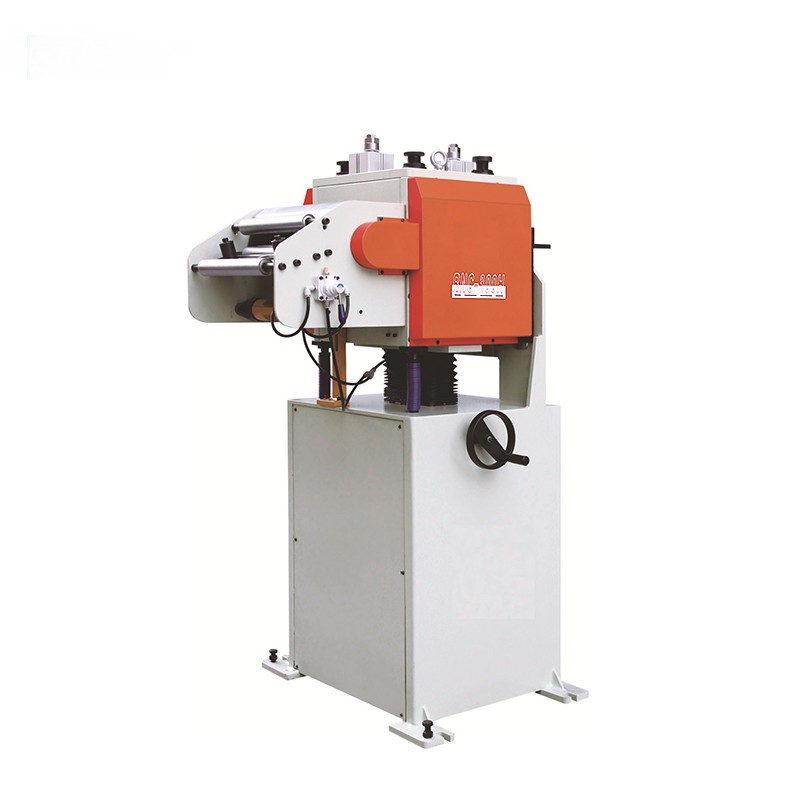

NC servo roll feeders, model RNC

  • 0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H
  • 0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H
  • 0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H
0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H 0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H 0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H

0.5-6.0mm NC servo roll feeders, model RNC-300H, 400H, 500H, 600H


Specification

ModelRNC-300HRNC-400HRNC-500HRNC-600H
Metal sheet width300mm400mm500mm600mm
Metal sheet thickness0.5-6.0mm
Feeding length per stroke0.1-9999.99mm
Feeding length accuracy±0.1mm
Feeding speed0-20m/min
Feeding height adjustment±50mm
Roller releasing methodby pneumatic cylinder
Servo motor and driveYASKAWA (JAPAN brand)
PLCMITSUBISHI (JAPAN brand)
Human machine interface (HMI)WEINVIEW (Taiwan brand)
Other main componentsother brands
Motor power1.3KW1.8KW2.9KW
Electrical power380V, 3 Phase, 50HZ (or else)
