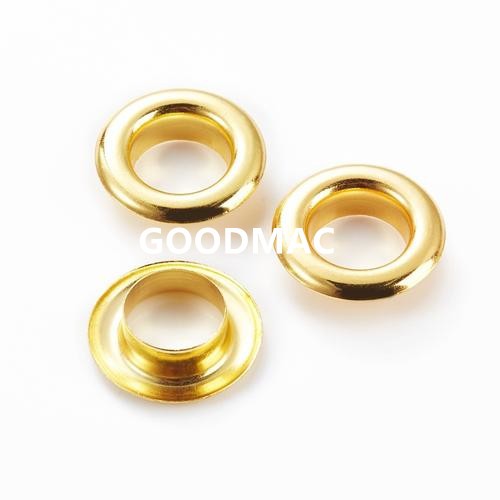

How to produce metal eyelets by cheap compact press machines?

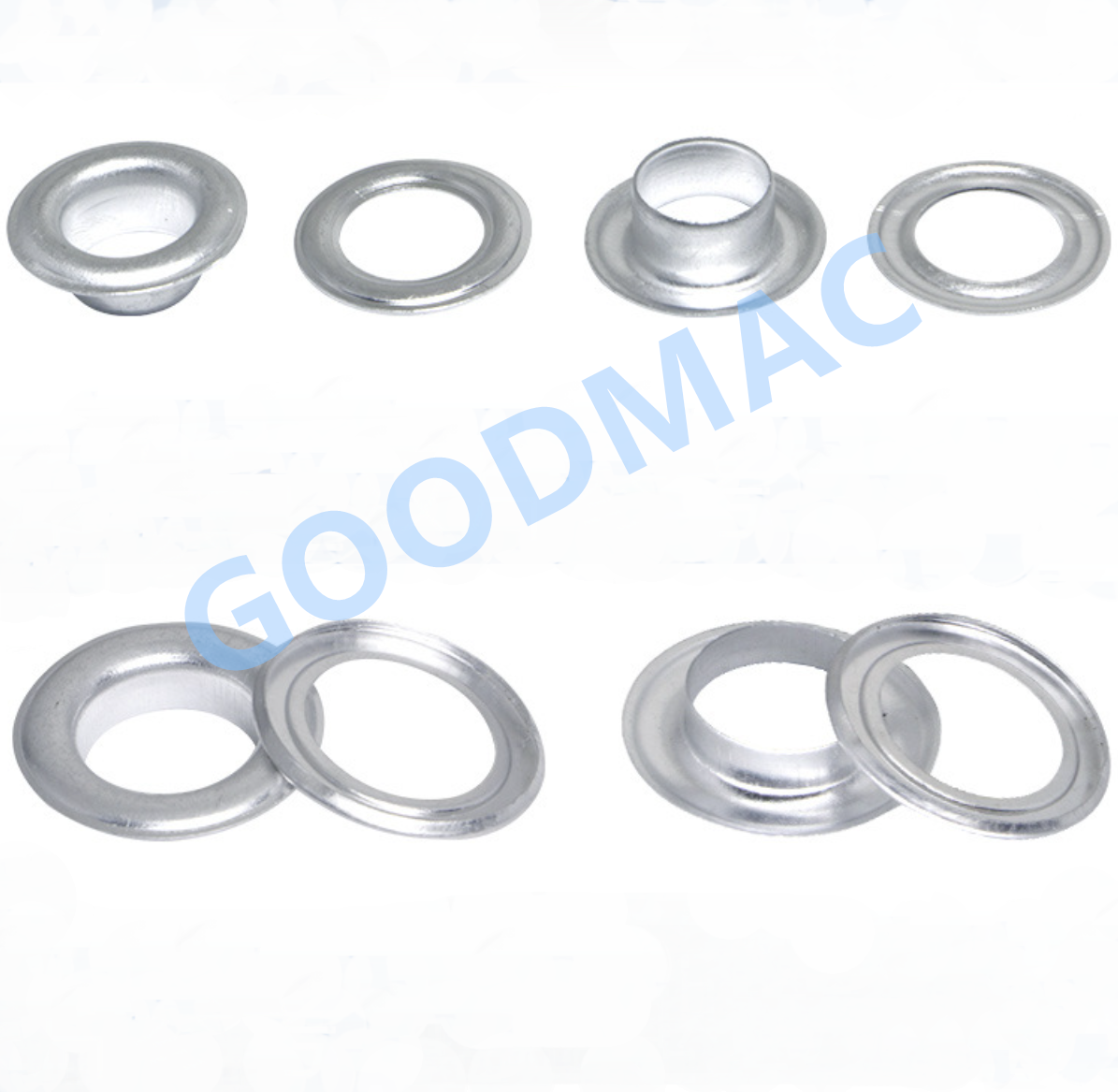

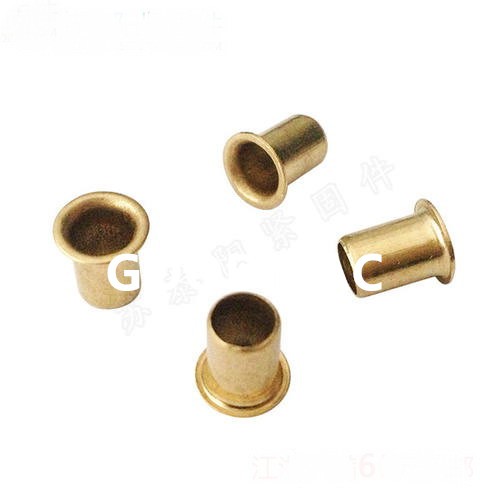

Metal eyelet material: brass, steel, aluminum, iron.

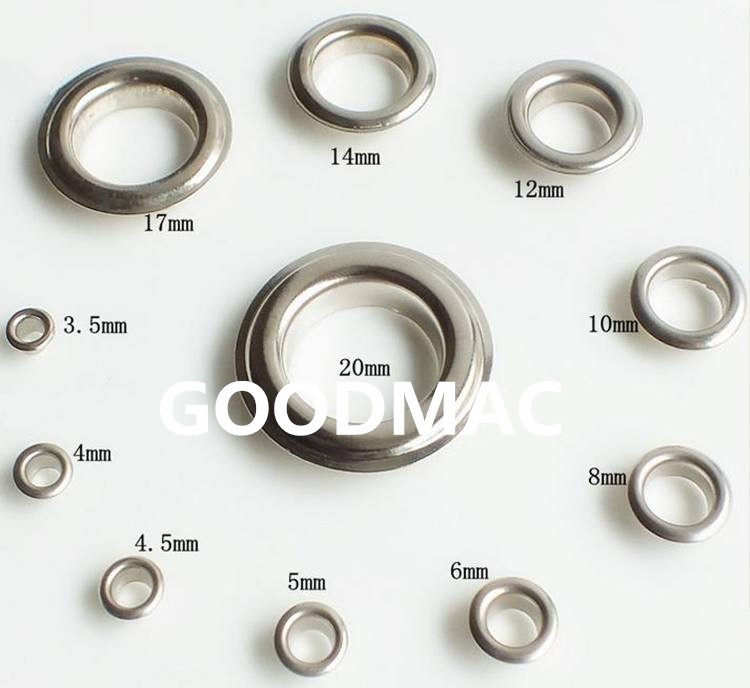

Eyelet size: as per your samples or drawing.
Metal sheet width and thickness: as per your samples or drawing.
Stamping speed: according to press machine and eyelet characters.

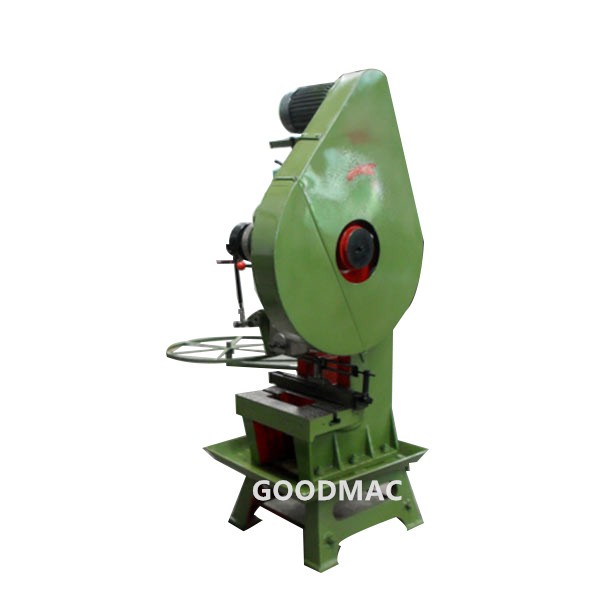

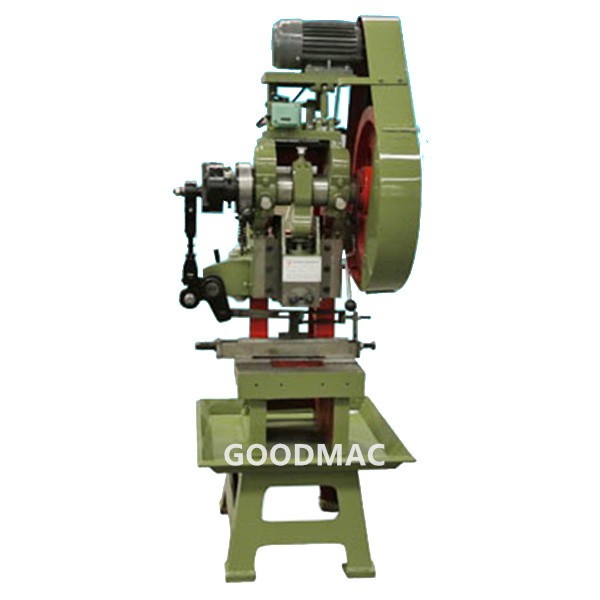

If you want to buy and use compact cheap press machine to produce metal eyelets,

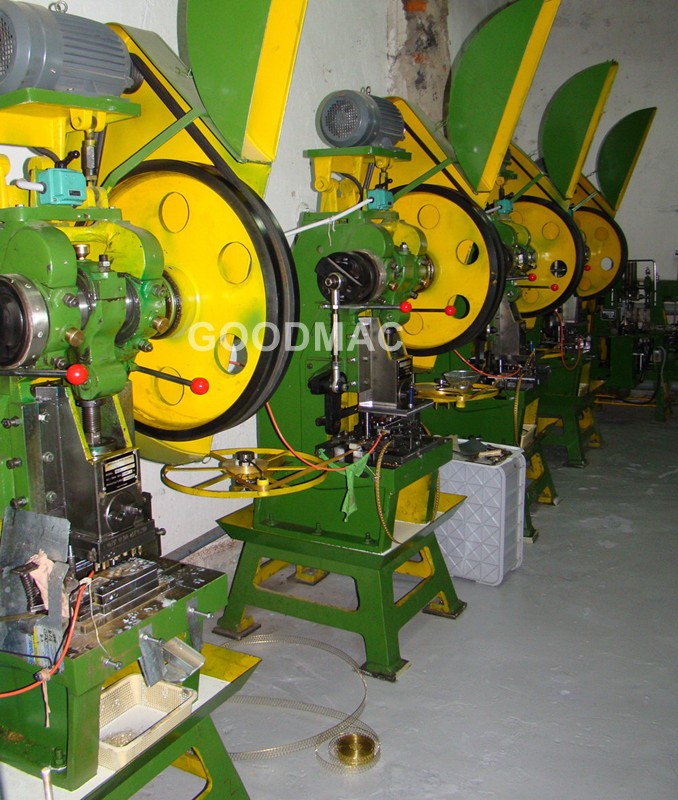

we can supply a metal sheet coil decoiler, a feeder, a press machine, as a productioin line.

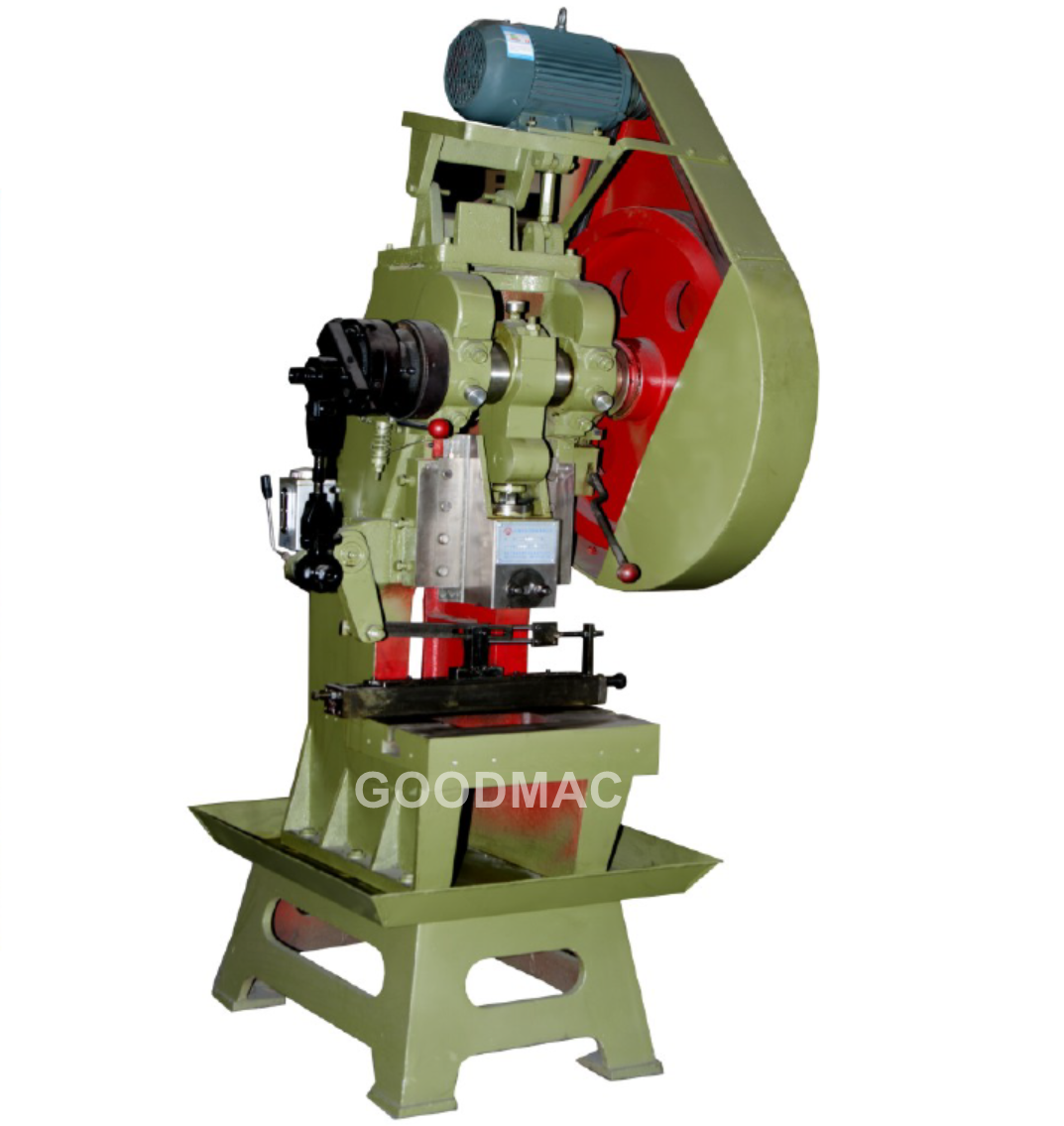

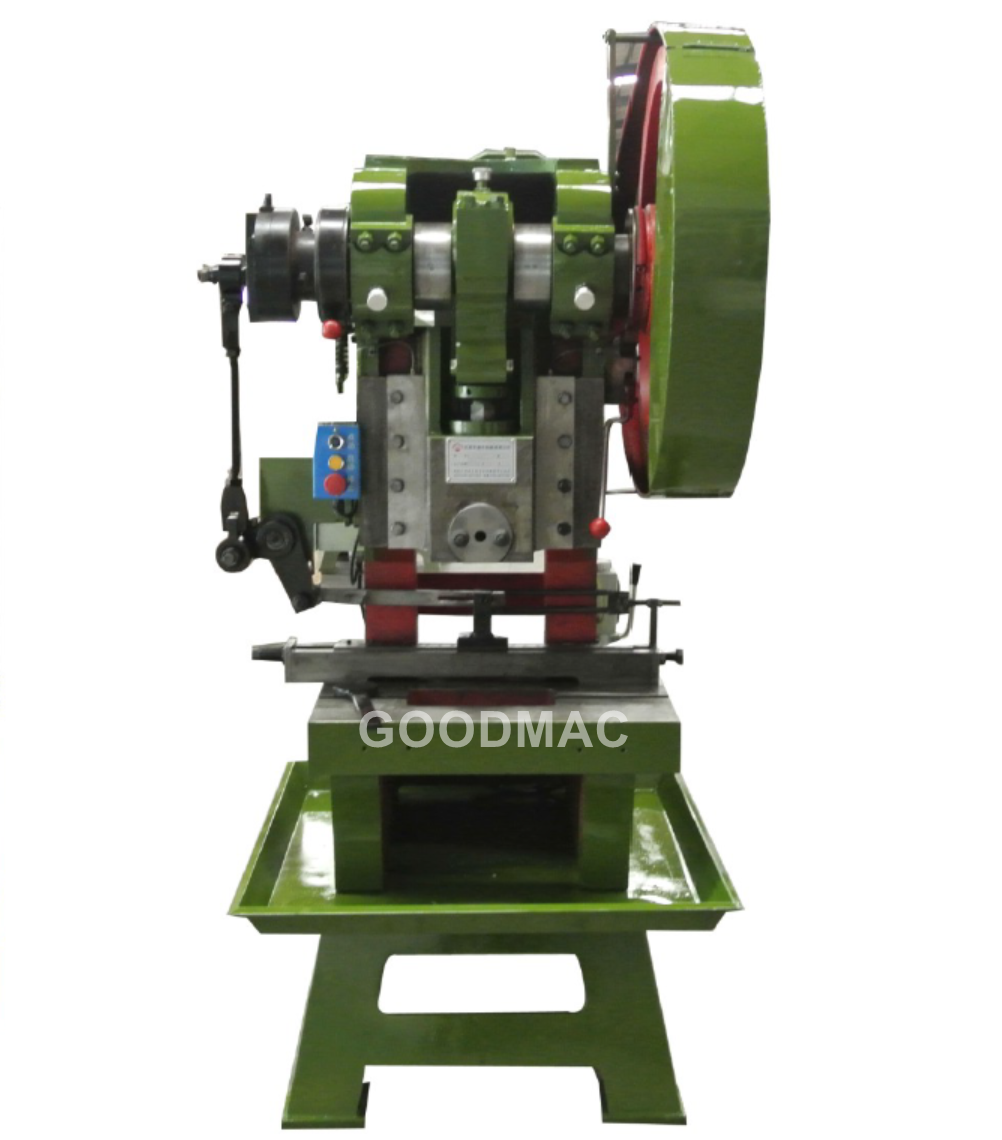

We will recommend a suitable press machine in below list, as per your metal eyelet size.
Model | GM-1200P | GM-1600P | GM-2000P | GM-3000P |
Pressing capacity | 10 ton | 14 ton | 16 ton | 25 ton |
Motor power | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
Bolster size | 410×250mm | 490×310mm | 530×320mm | 660×400mm |
Die height maximum | 150mm | 195mm | 210mm | 210mm |
Slide stroke | 44mm | 50mm | 57mm | 80mm |
Slide bottom size | 127×135mm | 142×150mm | 162×150mm | 195×200mm |
Hole size | 25.4mm | 31.75mm | 38.1mm | 40mm |
Working speed | 100-180 | 100-150 | 100-120 | 100 |
Net weight | 470KG | 800KG | 1000KG | 1500KG |
Dimension (mm) | 850×800×1850 | 900×850×2100 | 950×900×2300 | 1200×1100×2100 |
Packing dimension (mm) | 1100×1050×2050 | 1150×1100×2350 | 1300×1150×2550 | 1500×1400×2400 |
Electric voltage | 380V, 3 phase, 50HZ |
The press machine includes the decoiler and feeder already.

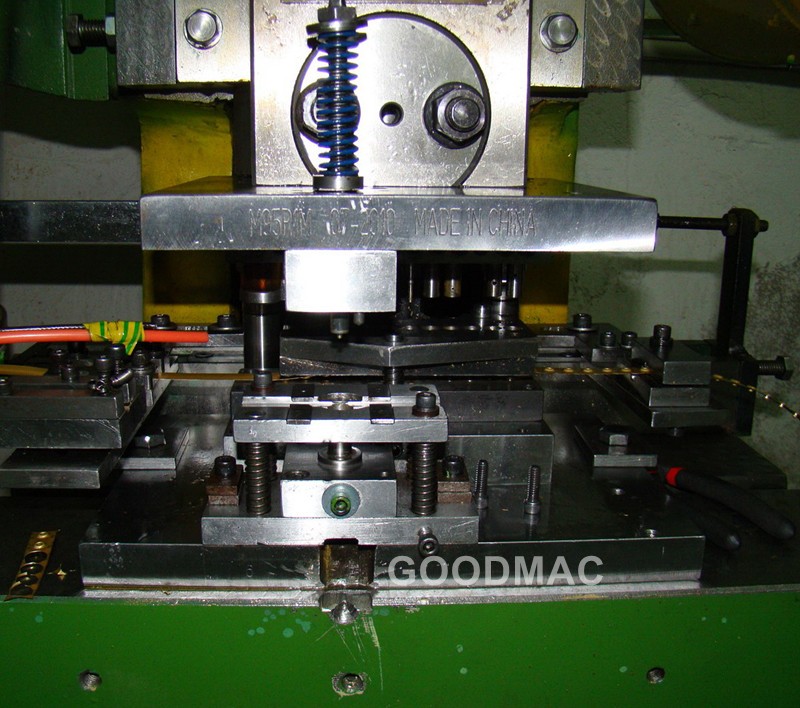

2 cavities eyelet mold (or 3 cavities, or 4 cavities, as per the press machine capacity and eyelet sizes).
If you want to buy and use high speed press machine to produce metal eyelets very fast, we can recommend and supply them for you also. Please click and refer to belwo link.
High speed press machine produces metal eyelets_Shoe, bag, garment, curtain_GOODMAC (goodmacmachine.com)
