How to make prong snap buttons by cheap compact press machine?

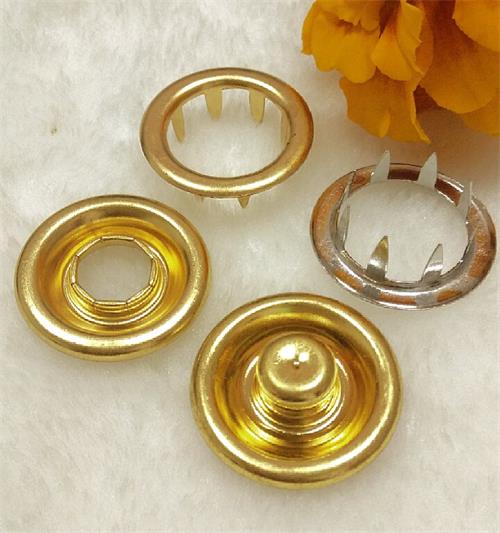

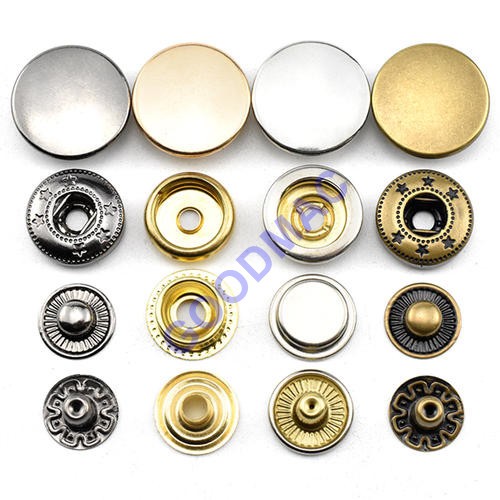

Prong snap button: ring snap, stud, socket.
Button size: as per your samples or drawing.
Button material: brass or steel or aluminum or iron.
Metal sheet width and thickness: as per your samples or drawing.
Stamping speed: as per press machine and button characters.

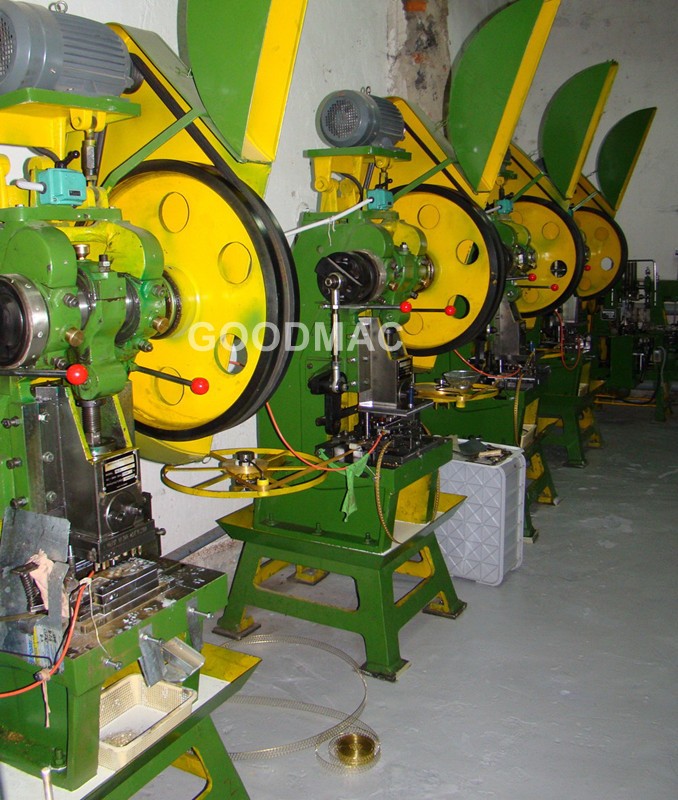

If you want to buy and use compact cheap press machine to produce the prong snap buttons,

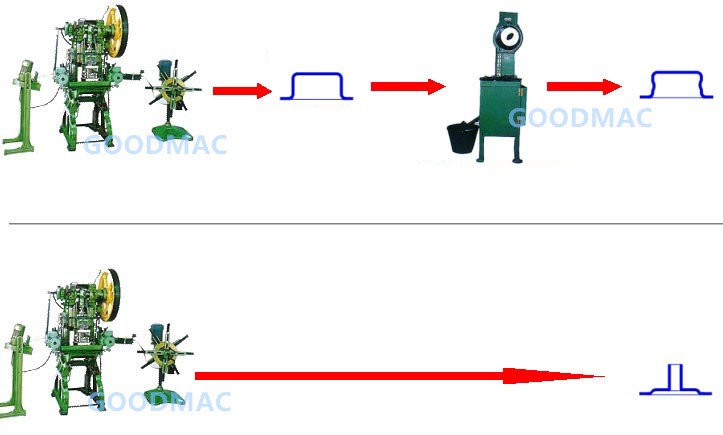

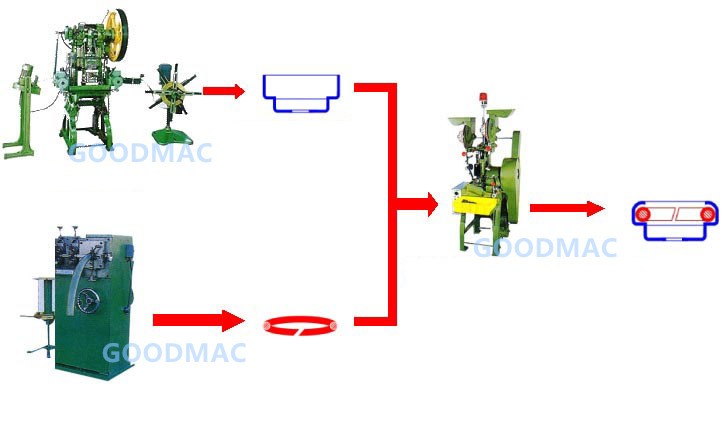

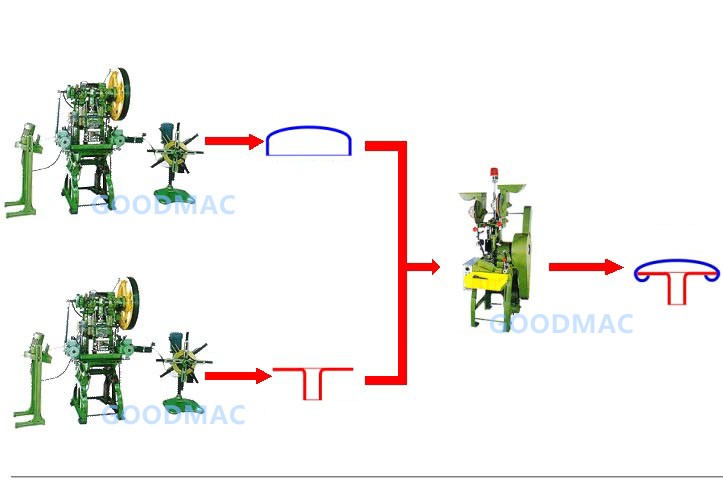

we can supply a metal sheet coil decoiler, a feeder, a press machine, as a production line.

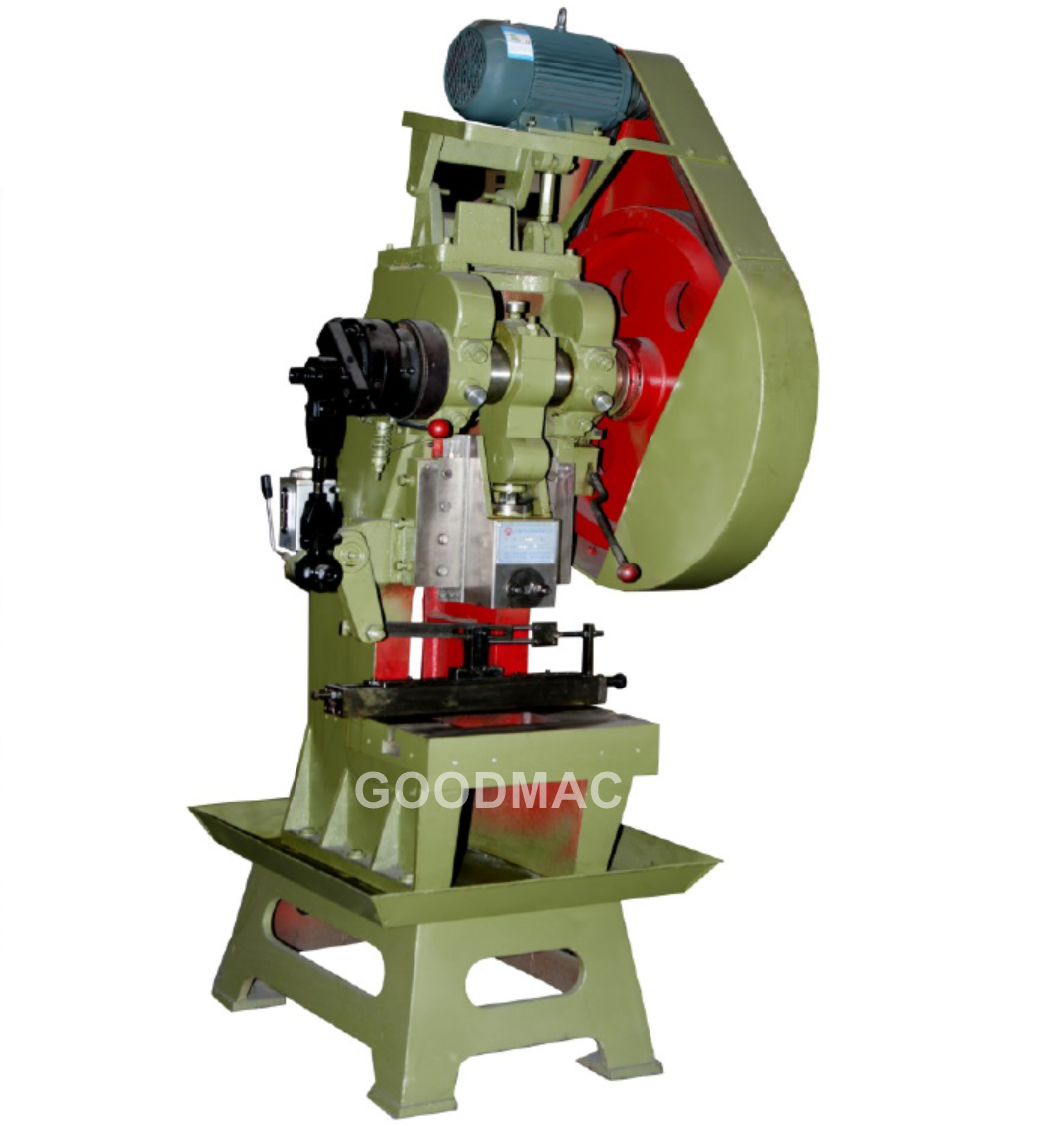

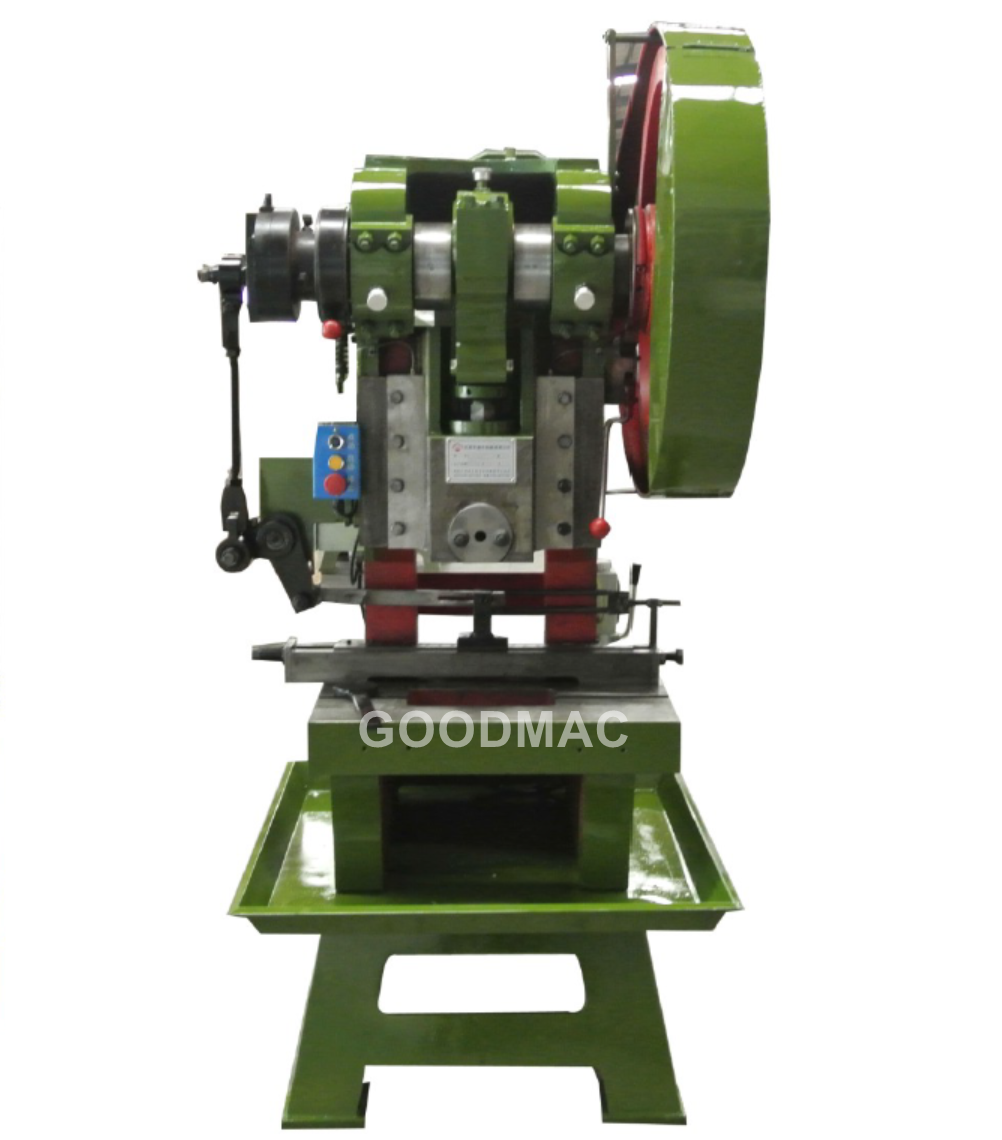

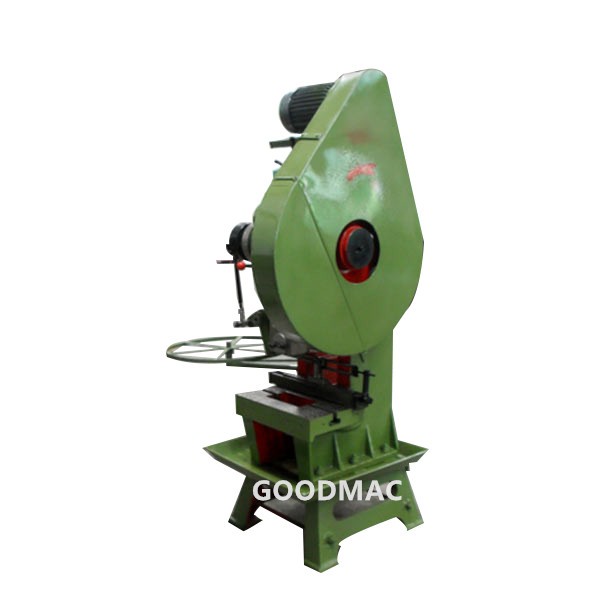

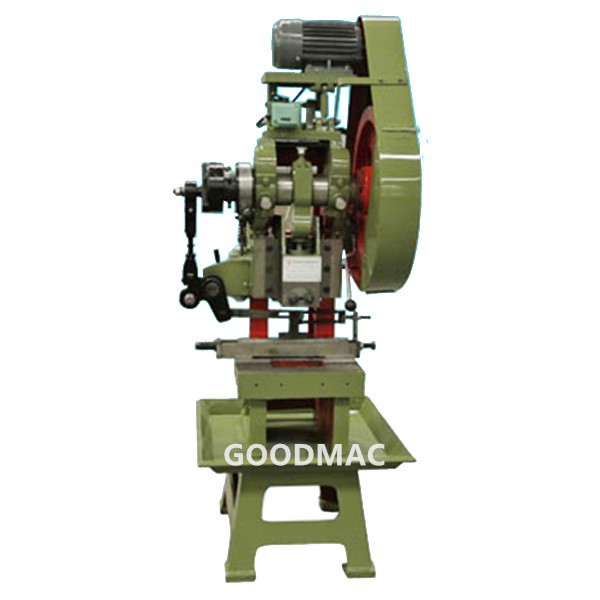

We will recommend a suitable press machine in belwo list as per your buttons size.
Model | GM-1200P | GM-1600P | GM-2000P | GM-3000P |
Pressing capacity | 10 ton | 14 ton | 16 ton | 25 ton |
Motor power | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
Bolster size | 410×250mm | 490×310mm | 530×320mm | 660×400mm |
Die height maximum | 150mm | 195mm | 210mm | 210mm |
Slide stroke | 44mm | 50mm | 57mm | 80mm |
Slide bottom size | 127×135mm | 142×150mm | 162×150mm | 195×200mm |
Hole size | 25.4mm | 31.75mm | 38.1mm | 40mm |
Working speed | 100-180 | 100-150 | 100-120 | 100 |
Net weight | 470KG | 800KG | 1000KG | 1500KG |
Dimension (mm) | 850×800×1850 | 900×850×2100 | 950×900×2300 | 1200×1100×2100 |
Packing dimension (mm) | 1100×1050×2050 | 1150×1100×2350 | 1300×1150×2550 | 1500×1400×2400 |
Electric voltage | 380V, 3 phase, 50HZ |
The press machine includes a compact metal sheet coil decoiler and a feeder already.

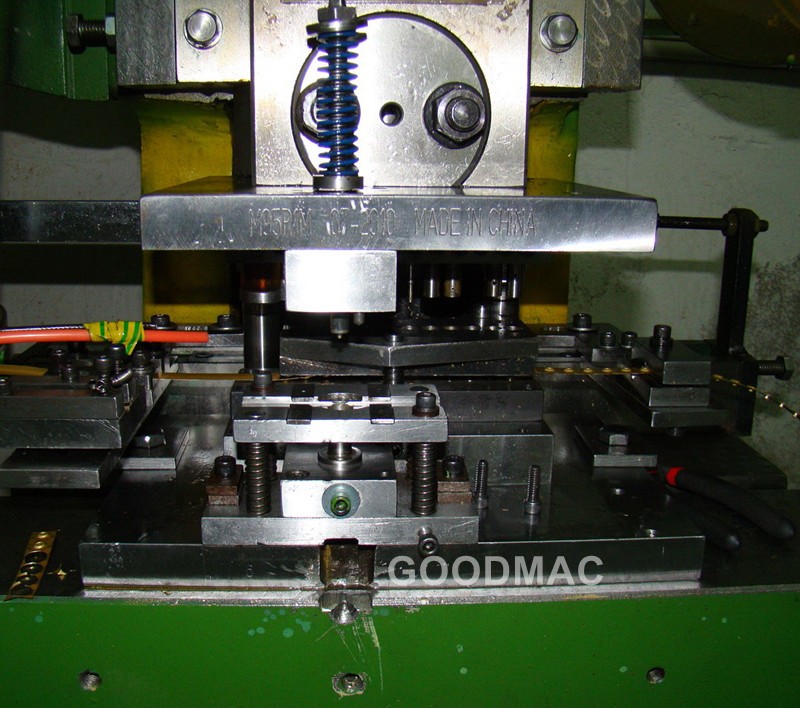

2 cavities snap mold (or 3 cavities, as per press machine capacity and your buttons size).
2 cavities stud mold (or 3 cavities, as per press machine capacity and your buttons size).
2 cavities socket mold (or 3 cavities, as per press machine capacity and your buttons size).
If you want to buy and use high speed press machine to produce prong snap buttons,
we can recommend and supply them for you also. Please click and refer to below link.
High speed press machine produces prong snap buttons_Shoe, bag, garment, curtain_GOODMAC (goodmacmachine.com)
